Sullivan Palatek

Sullivan Palatek Compressors

Stationary and Portable Compressors


Stationary Series Compressors

Portable Series Compressors

Stationary Compressors

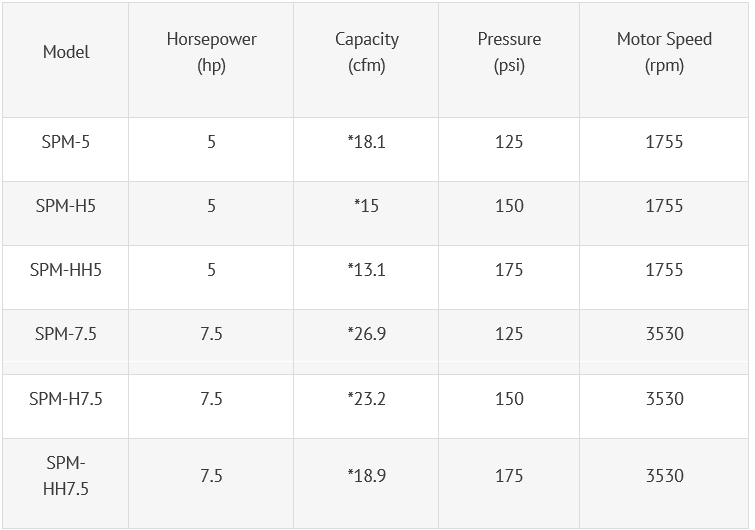

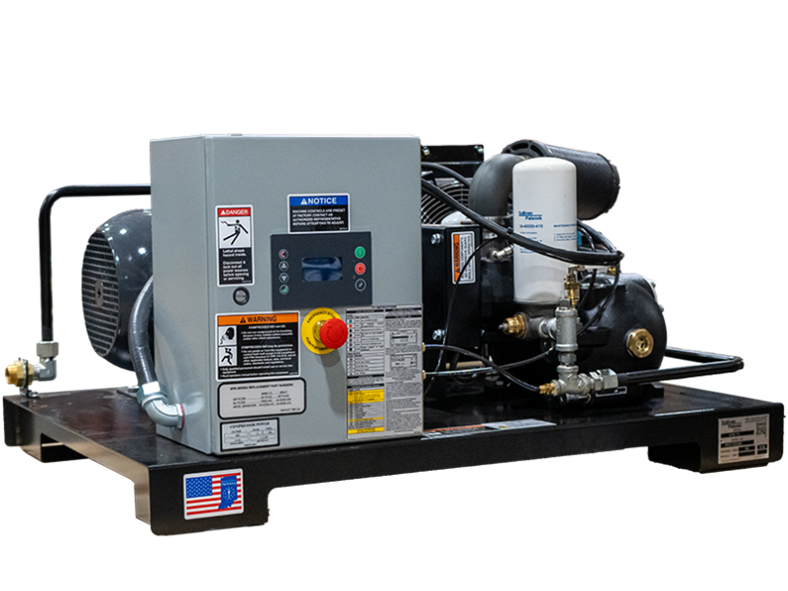

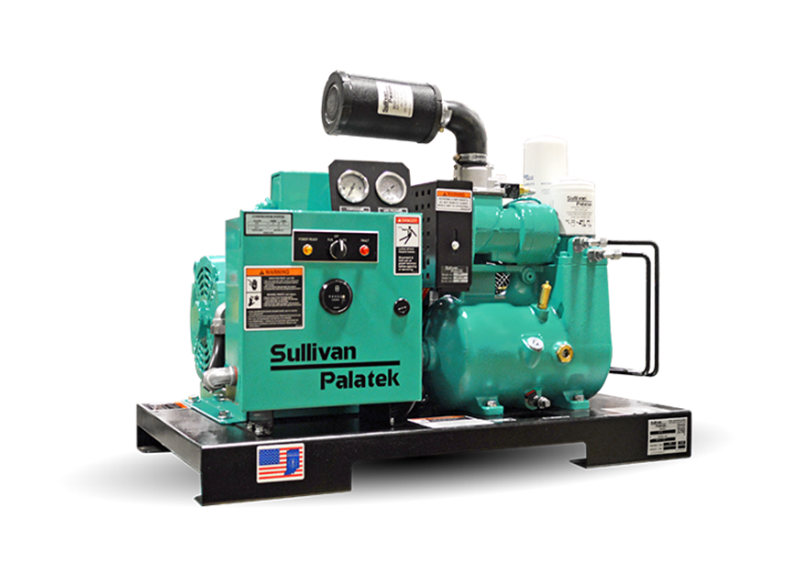

Industrial Air Compressor - 5, 7.5, 10 HP M-Series

  • Modular oil flooded rotary screw continuous duty industrial air compressor
  • 208/230/460/575 volt 3-phase open drip motor
  • Full voltage magnetic starter with 115 volt control power
  • Automatic dual control
  • Line pressure gauge, oil temperature gauge, and hour meter
  • Air cooled oil cooler/aftercooler with Palasyn 45, 4000 hour synthetic oil
  • Spin on type oil filter and separator elements for ease of maintenance
  • Air Filter: combination pleated and foam dry type, easily replaceable

C-Series Compressor Modules

Introducing Sullivan-Palatek’s NEW C-Series Compressor Modules

C-ing is believing! Owning is worry free!

These 10 - 15 Horsepower are expertly designed to fit exactly where needed and fulfill all your compressed air requirements.

  • Energy efficient
  • Quiet - 68dba
  • 230/460 volt, 3 phase
  • Microprocessor control
  • Multi point measuring and protection of pressure and temperature
  • E-Stop
  • RS-485 communication interface function
  • Seven function maintenance schedule/monitoring
  • Full function electrical control for motor protection
  • Motor overload relay
  • Phase protection
  • Optional front face control panel

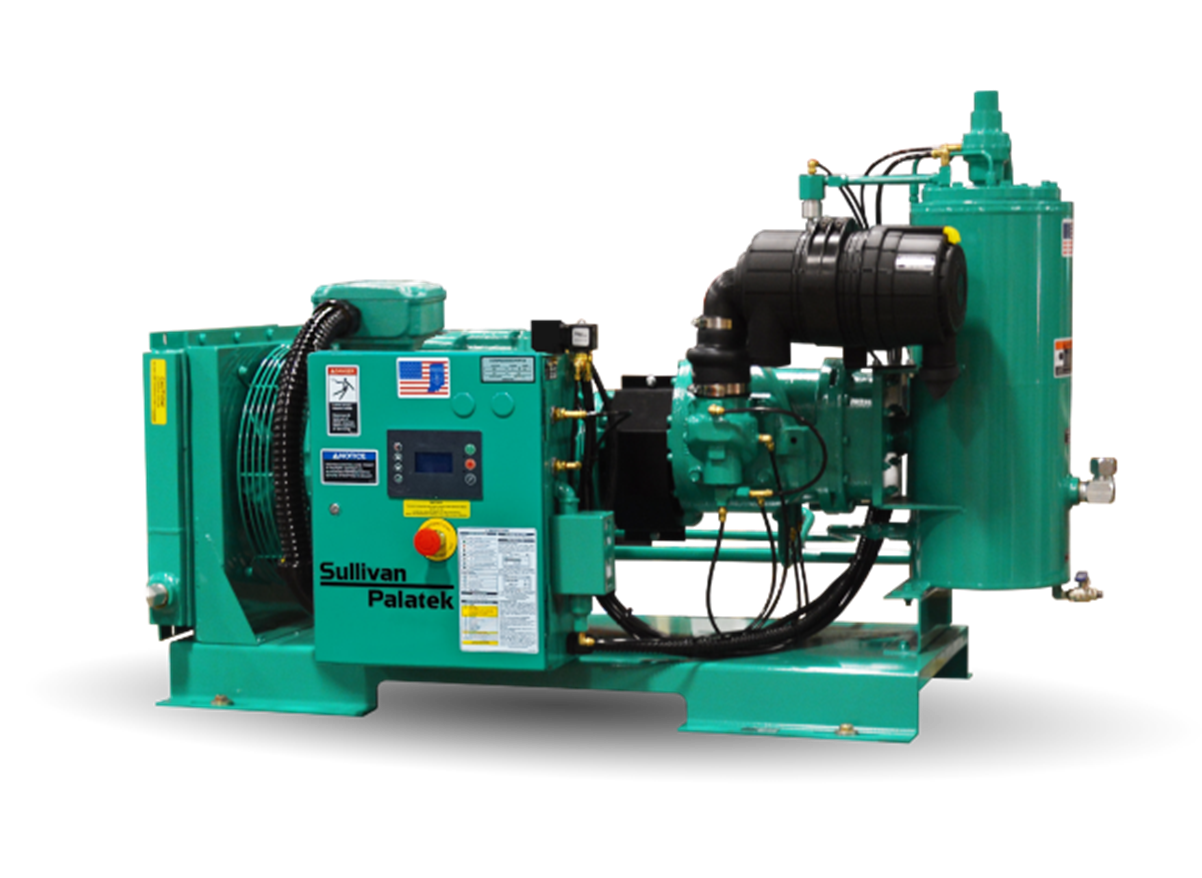

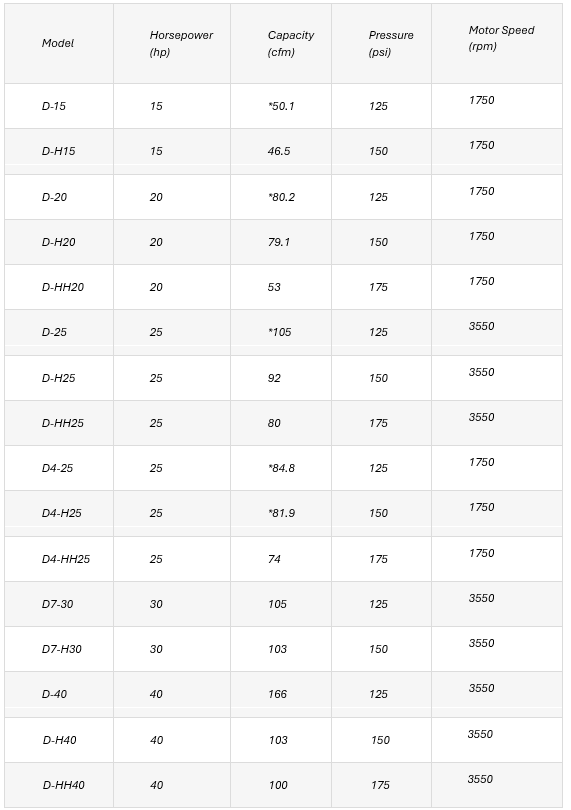

D Series 15 - 40 HP Compressors

Industrial Air Compressor - 15-40 HP

  • Electric Motor 208, 230, 460, 575 Volts
  • Motor Starter - 208/230/460/575 Volt (15-25 HP) 460/575 Volt (30-40 HP)
  • Protective Devices
  • Oil Level Sight Glass
  • ASME Coded 200 PSI Separator/Sump Tank
  • Direct Drive Coupling
  • Quality Instrumentation
  • All new Platinum and Platinum-Plus Warranties available.

Model 15 - 30 CDD Compressors

Industrial Air Compressor - 15-30 HP Compressor & Desiccant Dryer Package

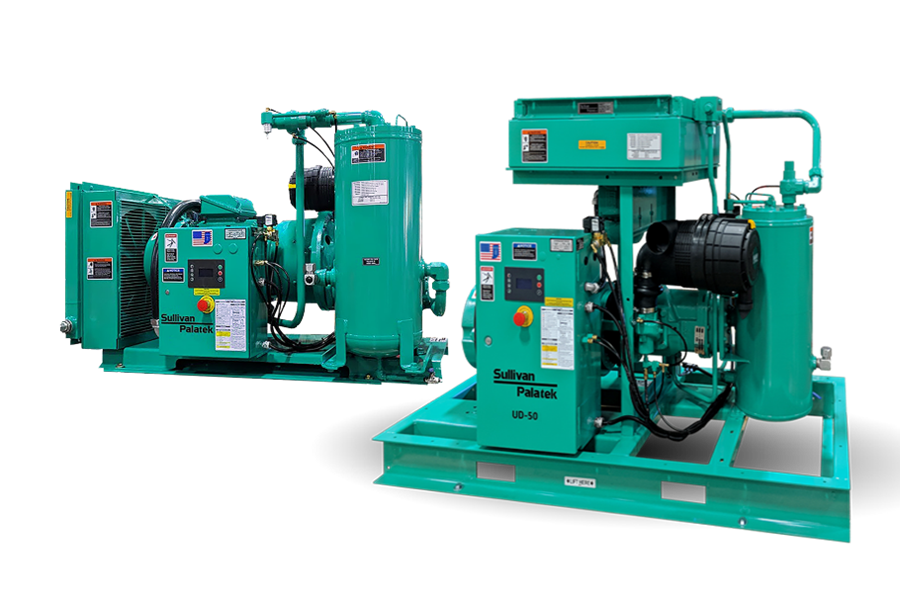

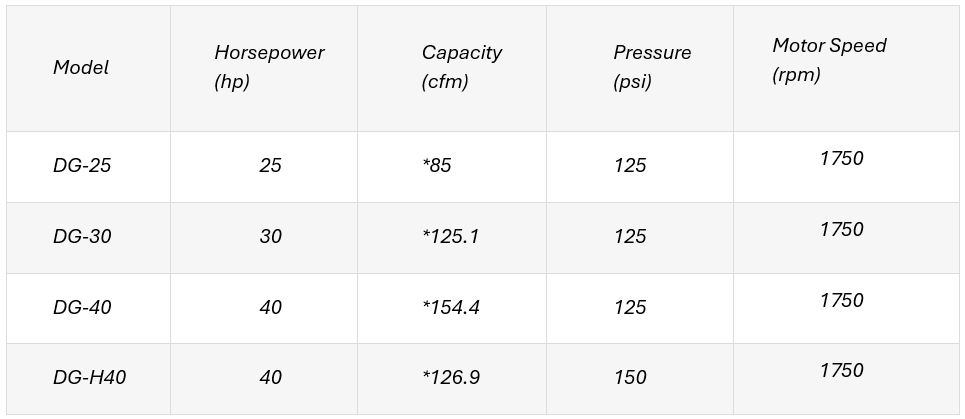

DG Series Compressors

Industrial Air Compressor - 25, 30, 40, 50 HP Direct Gear Drive

COMPRESSOR UNIT:

  • 5 Year Platinum Warranty/10 Year Platinum Plus Warranty Available

ELECTRIC MOTOR:

  • Nema T-frame, C-face, double shaft, open drip proof squirrel cage induction type.
  • 200/230/460/575/3/60 - 380/3/50
  • 5 Year Platinum Warranty Available

MOTOR STARTER:

  • Nema 1 enclosure, circuit breaker, transformer and three-phase overload protector.

COUPLING & DRIVE:

  • Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.

MOUNTING:

  • Base mounted, no special foundation required
  • Optional tank and platform mounting available.

COOLING SYSTEM:

  • Air-cooled with air/oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.
  • 5 Year Platinum Warranty Available.

CONTROLS:

  • Auto dual control, full modulation, timed stop or constant run standard.
  • Analog controlled for smooth operation and lowest possible no load power.
  • Optional microprocessor.

INSTRUMENTATION:

  • Line pressure gauge, fluid reservoir sightglass, hour meter, discharge temperature gauge, fluid filter and separator element differential gauges.

PROTECTIVE DEVICES:

  • Class 20 overload relay, high temperature and overpressure shutdown.

LUBRICATION:

  • Factory filled with 4000 hour Palasyn 45
  • Equipped with microfiber full flow, spin on oil filter.

DG Series Compressors

Industrial Air Compressor - 25, 30, 40, 50 HP Direct Gear Drive

COMPRESSOR UNIT:

  • 5 Year Platinum Warranty/10 Year Platinum Plus Warranty Available

ELECTRIC MOTOR:

  • Nema T-frame, C-face, double shaft, open drip proof squirrel cage induction type.
  • 200/230/460/575/3/60 - 380/3/50
  • 5 Year Platinum Warranty Available

MOTOR STARTER:

  • Nema 1 enclosure, circuit breaker, transformer and three-phase overload protector.

COUPLING & DRIVE:

  • Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.

MOUNTING:

  • Base mounted, no special foundation required
  • Optional tank and platform mounting available.

COOLING SYSTEM:

  • Air-cooled with air/oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.
  • 5 Year Platinum Warranty Available.

CONTROLS:

  • Auto dual control, full modulation, timed stop or constant run standard.
  • Analog controlled for smooth operation and lowest possible no load power.
  • Optional microprocessor.

INSTRUMENTATION:

  • Line pressure gauge, fluid reservoir sightglass, hour meter, discharge temperature gauge, fluid filter and separator element differential gauges.

PROTECTIVE DEVICES:

  • Class 20 overload relay, high temperature and overpressure shutdown.

LUBRICATION:

  • Factory filled with 4000 hour Palasyn 45
  • Equipped with microfiber full flow, spin on oil filter.

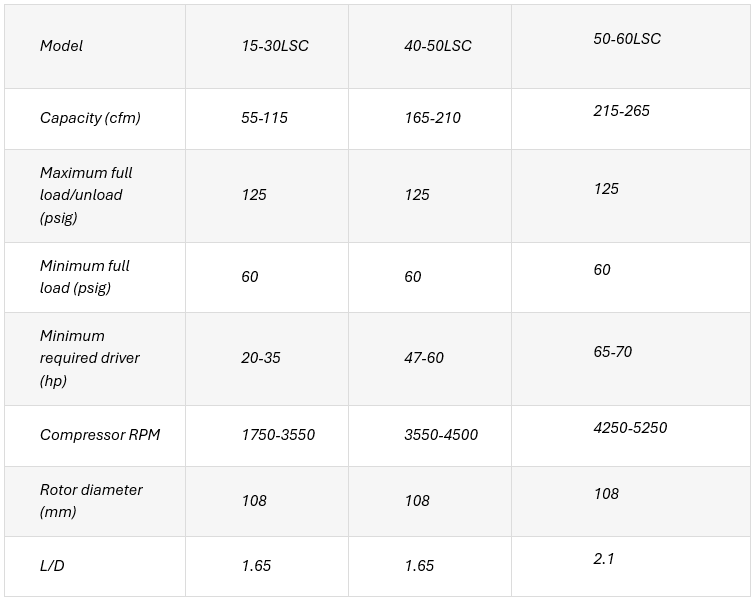

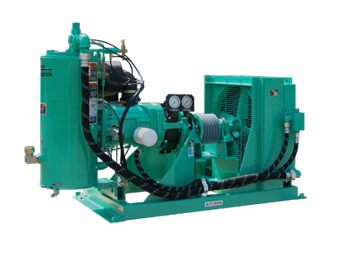

LSC Series 15-30, 40-50, 50-60 HP Line Shaft Compressors

Industrial Air Compressor - 15-30 LSC, 40-50 LSC, 50-60 LSC

COMPRESSOR:

  • Continuous duty oil flooded rotary screw industrial air compressor

COUPLING & DRIVE:

  • Compressor is flange mounted to frame for positive alignment and direct driven by low maintenance coupling

MOUNTING:

  • Base mounted, no special foundation required
  • Optional tank and platform mounting available

COOLING SYSTEM:

  • Air cooled with air cooled oil cooler and aftercooler

CONTROLS:

  • Auto dual control, full modulation, timed stop or constant run standard.
  • Analog controlled for smooth operation and lowest possible no load power.
  • Optional microprocessor.

LUBRICATION:

  • Factory filled with 4000 Hour Palasyn 45

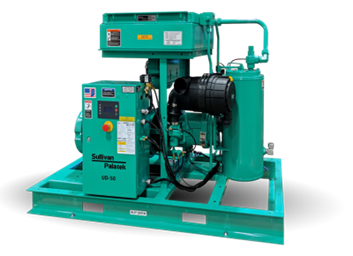

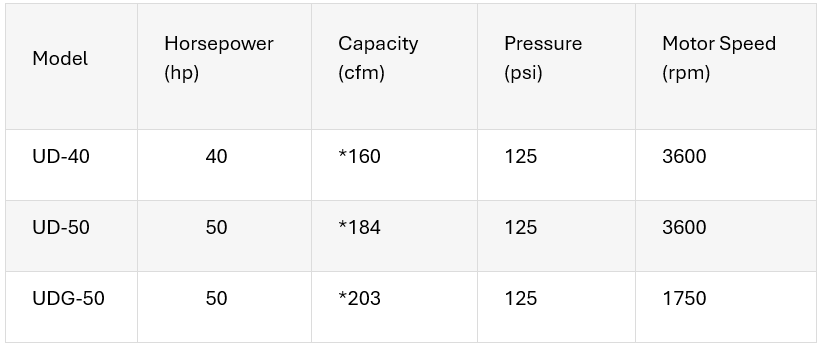

40 - 100 UD Series Compressors

Industrial Air Compressor - 40 - 100 HP UPDRAFT MODELS

  • T1 Microprocessor - Program daily schedule to suit plant requirements
  • Electric Motor - 460/575/3/60 standard (208/230/3/60 and 380/415/50 optional on most models)
  • Motor Starter - Full voltage magnetic starter with 120 volt controls, NEMA 1
  • Protective Devices - Class 20 Solid State overload relay, anti reverse, high temperature and high pressure shutdown switchs (40-60HP).
  • Lube Fill & Level Elbow - One piece fluid fill elbow and level indication sight glass
  • Separator Tank - ASME coded 200PSIG tank, relief valve, minimum pressure/check valve
  • Cooling System - Cooling system with dedicated fan motor, large side by side lube cooler and aftercooler
  • Air Intake Filter - Heavy duty dry type with easily replaceable elements
  • Inlet/check valve - One piece housing for dependable performance and complete modulation
  • Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment and direct driven
  • Controls - 0-100% modulation, solenoid controlled for smooth lowest possible no load power

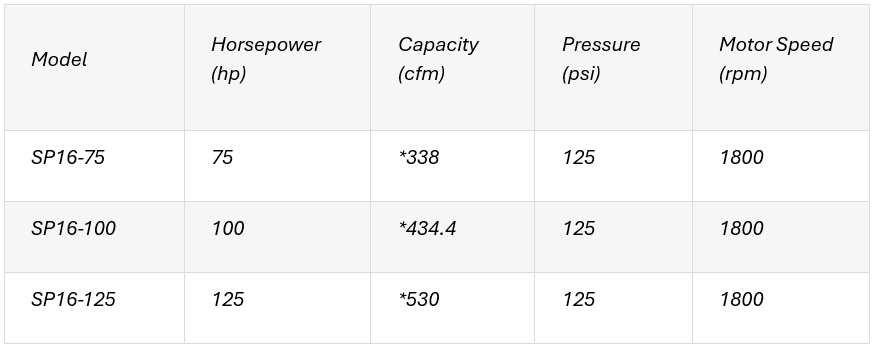

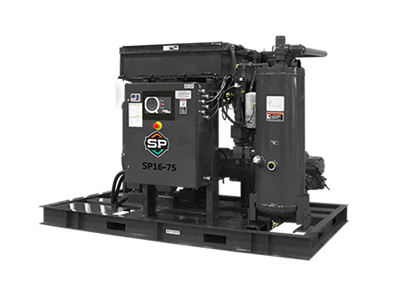

SP16 Series Compressors

Industrial Air Compressor - 75-125 HP

  • Air End - SP series manufactured by Sullivan-Palatek
  • dba Rating - 72-74 dba, 66-68 dba with optional enclosure
  • Electric Motor
  • Motor Starter - MFV with 115 volt control, NEMA 4/12 Optional: NEMA 4, Wye Delta, Solid State reduced voltage, variable frequency drive available.
  • Water Trap - Standard on all SP-Series compressors
  • Lubricant - Factory filled with our 8,000 hour Pal-Extra 44
  • Lube Fill & Level - Separate O-ring fluid fill port and bulls eye style level indication sight glass
  • Separator Tank - ASME coded 200 psi tank, relief valve, minimum pressure/check valve. Optional 300 psi available for 250 psi working pressure applications.
  • Cooling System - Large side by side lube and air cooled aftercooler.
  • Air Intake Filter - Oversize dry type with easily replaceable elements
  • Inlet/check valve - One piece housing for dependable performance. Modulation – 0 to 100%.
  • Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment
  • Controls - S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines.

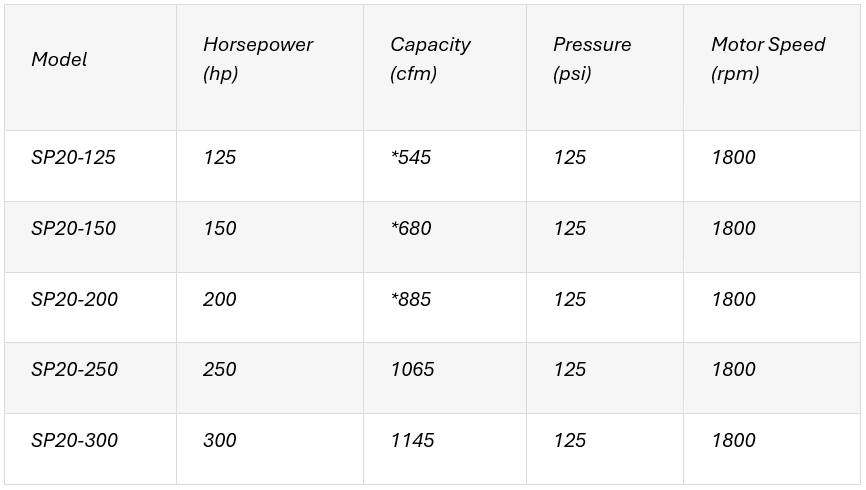

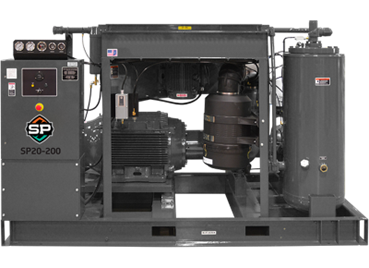

SP20 Series Compressors

Industrial Air Compressor - 125-300 HP

  • Electric Motor - 460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on most models)
  • Motor Starter - 460 volt, FVM with 115 volt control, NEMA 1 Optional: NEMA 4, Wye Delta, Solid State available.
  • VFD Option - 460 volt, NEMA 1 Standard NEMA 12, NEMA 4 Optional
  • Lube Fill & Level Elbow - One piece fluid fill elbow and level indication sight glass
  • Separator Tank - ASME coded 200 psi tank, relief valve, minimum pressure/check valve. Optional 300 psi available for 250 psi working pressure applications.
  • Cooling System - Large side by side lube and air cooled aftercooler.
  • Air Intake Filter - Oversize dry type with easily replaceable elements
  • Inlet/check valve - One piece housing for dependable performance. Modulation – 0 to 100%.
  • Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment and direct drive.
  • Controls - S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines.
    Optional: Deluxe gauge pane

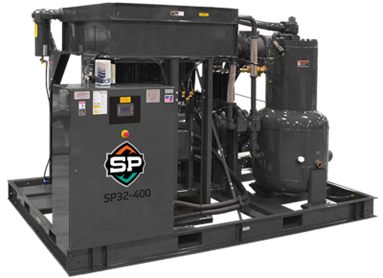

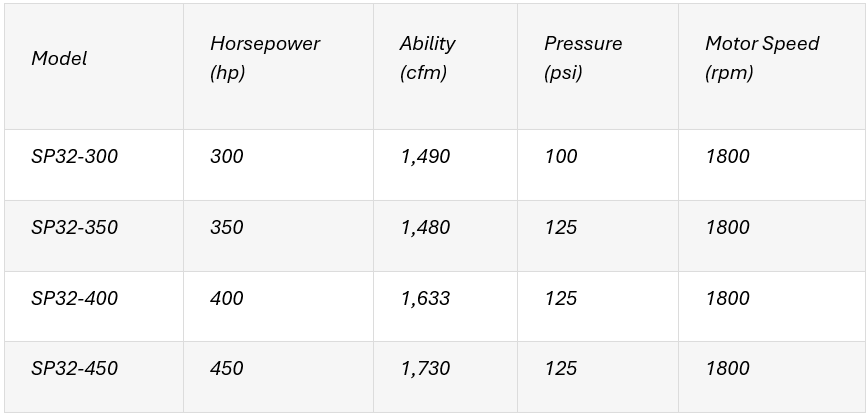

SP32 Series Compressors

Industrial Air Compressor - 125-300 HP

  • Electric Motor - 460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on most models)
  • Motor Starter - 460 volt, FVM with 115 volt control, NEMA 1 Optional: NEMA 4, Wye Delta, Solid State available.
  • VFD Option - 460 volt, NEMA 1 Standard NEMA 12,
    NEMA 4 Optional
  • Lube Fill & Level Elbow - One piece fluid fill elbow and level indication sight glass
  • Separator Tank - ASME coded 200 psi tank, relief valve, minimum pressure/check valve. Optional 300 psi available for 250 psi working pressure applications.
  • Cooling System - Large side by side lube and air cooled aftercooler.
  • Air Intake Filter - Oversize dry type with easily replaceable elements
  • Inlet/check valve - One piece housing for dependable performance. Modulation – 0 to 100%.
  • Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment and direct drive.
  • Controls - S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines.
    Optional: Deluxe gauge pane

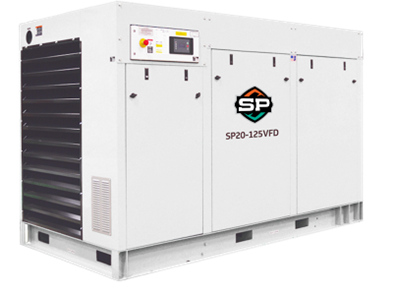

VFD Series Compressors

Variable Frequency Drive Rotary Screw Air Compressors - 15 - 450 HP

  • More than a frequency inverter, it is a complete, Versatile Air System.
  • Wide power range for 200V, 230V, 460V and 575V.
  • Pressure transducer motor speed control, provided by pressure signal via our T1 microprocessor control.
  • Programmable digital outputs available.
  • Digital inputs from 2 pressure sensors, and a temperature sensor.
  • 8 programmable parameter sets with S-curves, power off function, PID process controller, electronic motor protection and internal timer. Output frequencies up to 160 Hz with output voltage stabilization; switching frequencies up to 16 kHz; output phase monitoring.
  • DC bus circuit connection and motor thermal sensor connection are provided.
  • All new Platinum and Platinum-Plus Warranties available.

Electric Driven Rotary Screw Air Compressor

  • From 5 h.p. to 400 h.p.
  • We offer standard compressors and variable frequency drive compressors.

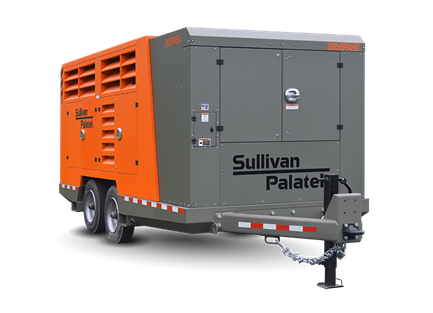

Diesel Driven Rotary Screw Air Compressor

  • From 185 - 1800 c.f.m.
  • Pressures from 100-350 psi.
  • Deere, Caterpillar, and Cummins diesel engines are available in select models.
  • Skid mounted, utility and portables.
  • Air Tools available.

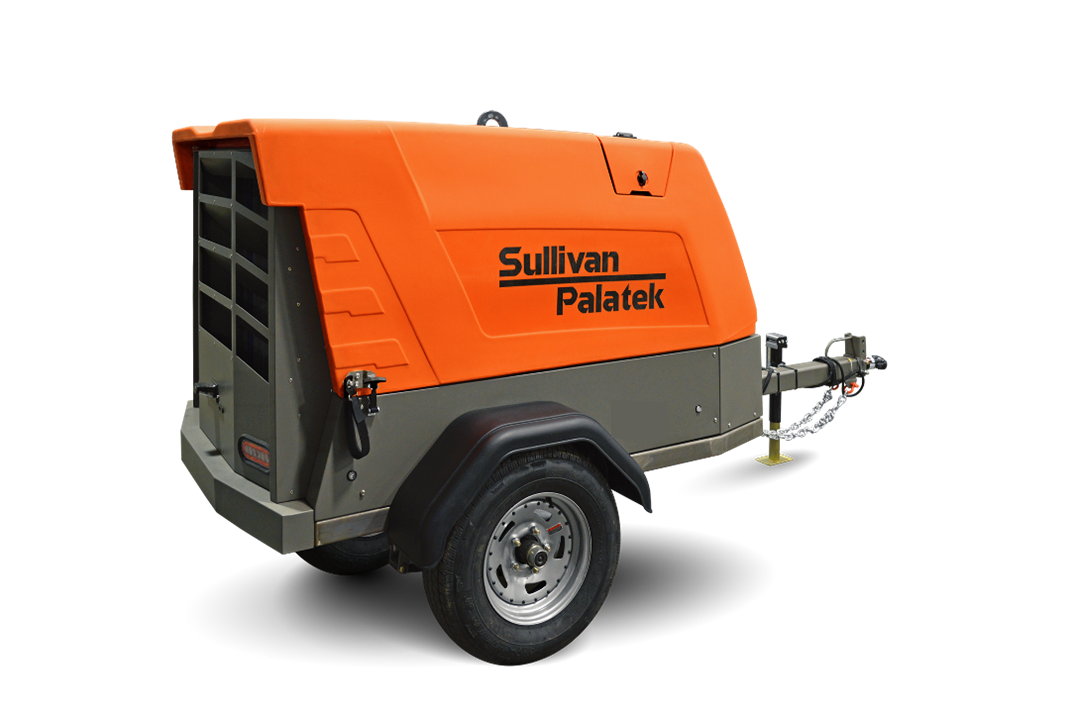

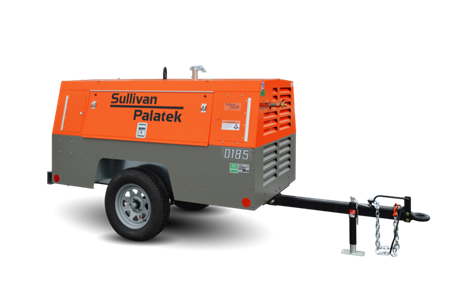

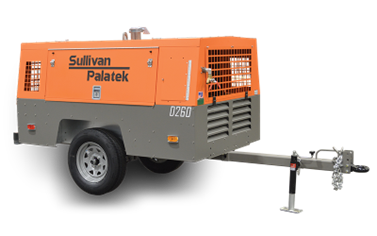

Portable Series Compressors


D185P2 FlexAir Portable Series Compressors

The FlexAir P2 compressor is designed to be versatile, built with removable drawbar and running gear so it can easily be mounted on a truck bed or any utility type mounting. It has fork lift pockets for lifting and floor mounting. Powered by a 49 hp John Deere or CAT diesel engine, this newest design has gull-winged service doors and is small, light and easy to tow.

  • Large, 108 mm Diameter Twin Screw Air End has Exclusive Three Year unlimited hour Warranty
  • Automatic 0 to 100% Capacity Control
  • Three Stage Dry Type Air Filter
  • Multiple Service Connections
  • Oil Level Sight Glass
  • Side by Side Coolers for Compressor and Engine
  • Caterpillar or John Deere Engine
  • 20 Gallon Fuel Tank
  • Safety Chains
  • 13” Wheels & Tires
  • Choice of Adjustable Height Lunnette Eye or Optional Ball Hitch on Drawbar
  • Noise Level Limited to Maximum of 76dBA at 7 Meters
  • Exterior Fluid Drains for: Diesel Fuel Tank, Engine Oil, Engine Coolant and Compressor Oil
  • Gull-Wing Doors for Superior Access to Components and Easy Servicing
  • Heavy Duty Lifting Eye
  • 4-Way Forklift Pockets
  • Padlockable Door Latches
  • Automatic Shutdown and Protection System
  • Automatic Blowdown Valve
  • Stop, Turn, Tail Lights
  • Unloaded Starting
  • Standard Instrumentation Alternator Light, Discharge Pressure Gauge and Hourmeter
  • For Optional Equipment, Consult Factory

G185PMI Gas Series Portable Compressors

  • Large, 108mm Diameter Twin Screw Air End
  • Exclusive Three Year Warranty On Air End
  • Automatic 0 to 100% Capacity Control
  • Three Stage Dry Type Air Filter
  • Multiple Service Connections
  • Oil Level Sight Gauge
  • Side by Side Coolers for Compressor and Engine
  • Cooler Access Panel for Cleaning
  • Steel Fuel Tank
  • Safety Chains
  • 15” Wheels & Tires
  • Choice of Lunnette Eye or Optional Ball Hitch on Adjustable Drawbar
  • Large Full Length Lockable Tool - Boxes on Each Side
  • Galvaneal Enclosure - Rust & Corrosion Resistant
  • Galvanized Wheel Wells and Internal Panels
  • Noise Level Limited to Maximum of 76 dBA at 7 Meters
  • Automatic Shutdown and Protection System
  • Automatic Blowdown Valve
  • Stop, Turn, Tail Lights
  • Unloaded Starting
  • Instrumentation
    Murphy Powerview
    Fuel Level Gauge
    Discharge Pressure Gauge
  • Optional Equipment
    3rd Wheel
    Brakes
    A Frame Drawbar
    Hitches
    Hose Reels
    Dual Fuel (Gasoline - LPG)

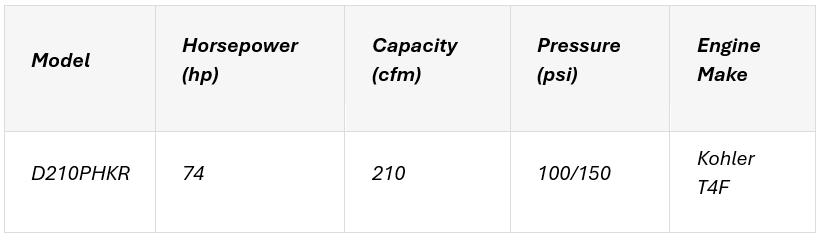

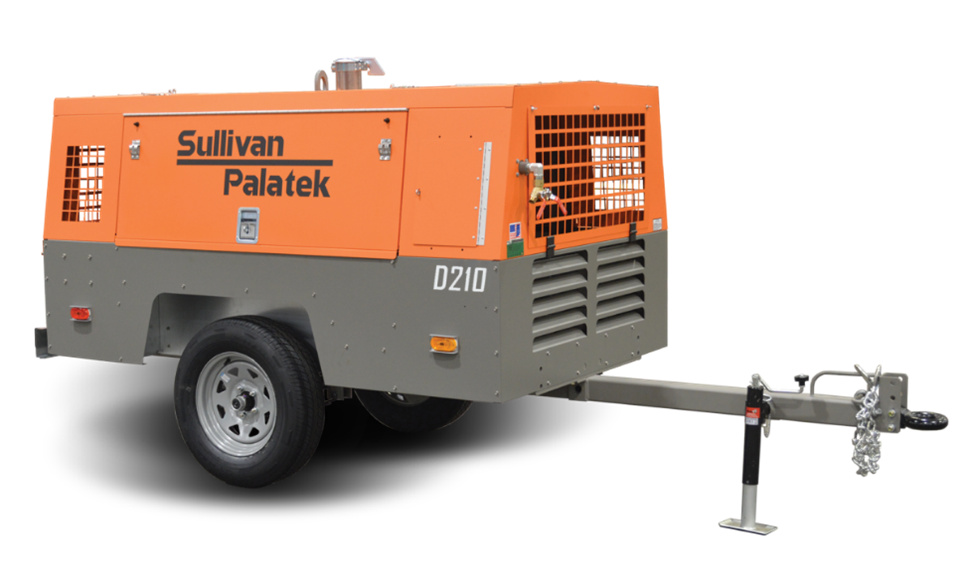

D210PHDZ-250PDZ TIER 4 FINAL Portable Compressors

  • 108mm Diameter Twin Screw Air End
  • Exclusive Three Year Warranty On Air End
  • Automatic 0 to 100% Capacity Control
  • Two Stage Dry Type Air Filter - External Access
  • Multiple Service Connections • Oil Level Sight Gauge • Side by Side Coolers for Compressor and Engine
  • DEUTZ TD2.9L4 Tier 4 • Steel Fuel Tank • Cooler Access Panel for Cleaning
  • Safety Chains • 15” Wheels & Tires • Choice of Lunnette Eye or Ball Hitch on Height Adjustable Drawbar
  • Large Full Length Tool Boxes in Each Side with Lockable Handles
  • Galvanneal Enclosure • Galvanized Wheel Wells and Internal Panels
  • Easily Removable Upper Enclosure
  • Automatic Shutdown and Protection System
  • Automatic Blowdown Valve • Stop, Turn and Tail LED Lights
  • Unloaded Starting • High-Low Selector Switch (210PH)
  • Sullivan-Palatek Electronic Controller (SPEC)
  • Digital Readouts:
  • Compressor temperature
  • Discharge Pressure
  • Engine oil pressure
  • Engine temperature
  • Voltmeter
  • Tachometer
  • Fuel level - low fuel warning and shutdown
  • Complete engine diagnostic tool\
  • Unit converter
  • Multilingual capabilities
  • Waterproof up to six feet

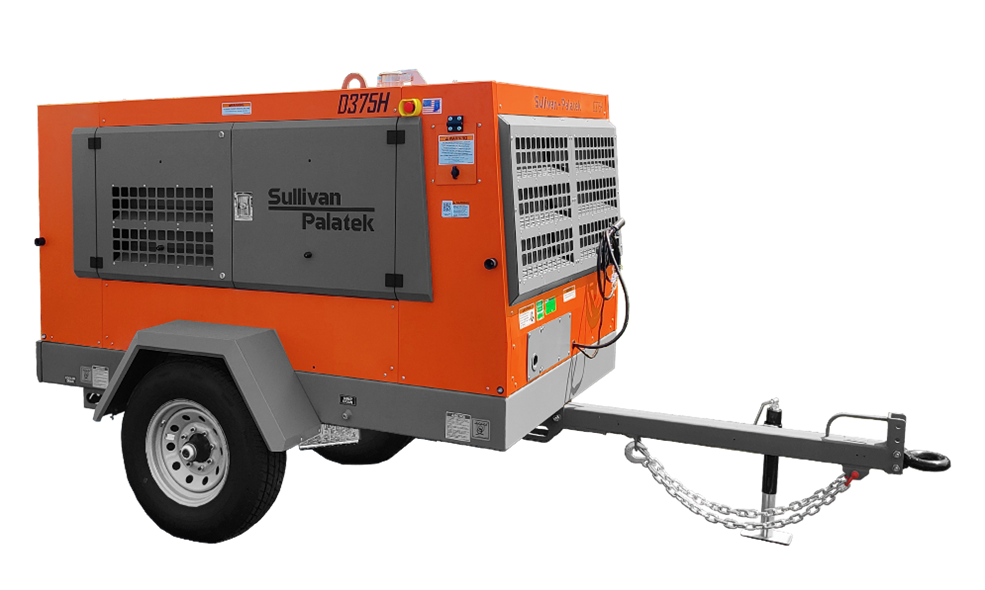

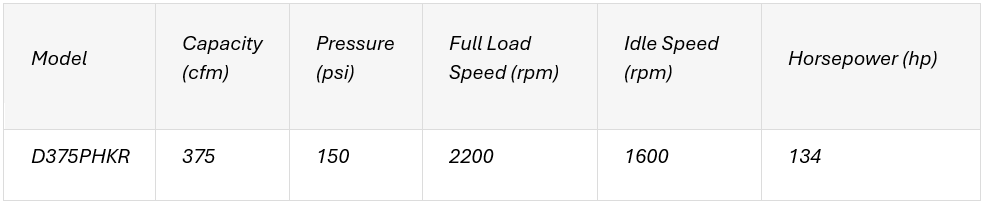

D300 - D375 Series Portable Compressors

  • Large, 127mm (D375) Diameter Twin Screw Air End
  • Exclusive Three Year Warranty on Air End
  • Automatic 0 to 100% Capacity Control
  • Oil Level Sight Gauge
  • Side by Side Coolers for Compressor and Engine
  • John Deere or Caterpillar TIER III Engines
  • Steel Fuel Tank
  • Cooler Access Panel for Cleaning
  • Safety Chains
  • 15” Wheels & Tires
  • Choice of Lunnette Eye or Ball Hitch on Height Adjustable Drawbar
  • Large Full Length Tool Boxes in Each Side
  • Noise Level Limited to Maximum of 76 dBA at 7 Meters
  • Easily Removable Upper Enclosure
  • Galvaneal Enclosure-Rust & Corrosion Resistant
  • Low Fuel Level Shutdown
  • Automatic Shutdown and Protection System
  • Containment Base
  • Remote Drains
  • Automatic Blowdown Valve
  • Unloaded Starting

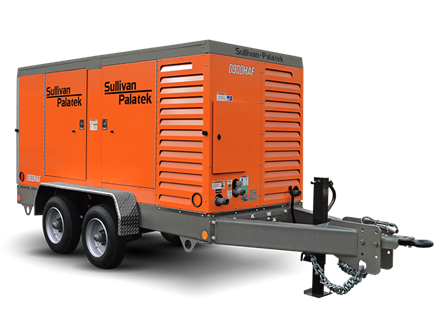

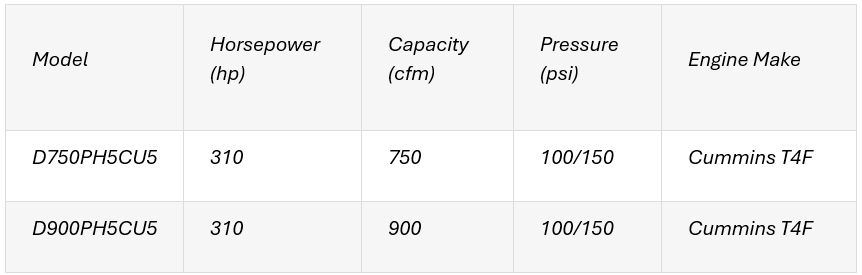

D750-D900 Portable Series Compressors

  • Large 204mm Diameter Twin Screw Air End Manufactured In The USA by Sullivan-Palatek
  • Exclusive Three Year Warranty
  • Automatic 0 to 100% Capacity Control
  • 2” Service Connection
  • Aluminized Fuel Tanks
  • Single Point Lifting Bail
  • Dual-Axle Running Gear
  • Adjustable 3” Lunette Eye
  • Noise Level Limited to Maximum of 76 dBA at 7 Meters
  • Automatic Shutdown and Protection System
  • Electric Brakes Standard
  • Galvaneal sheet metal
  • Large Service Doors for ease of Maintenance

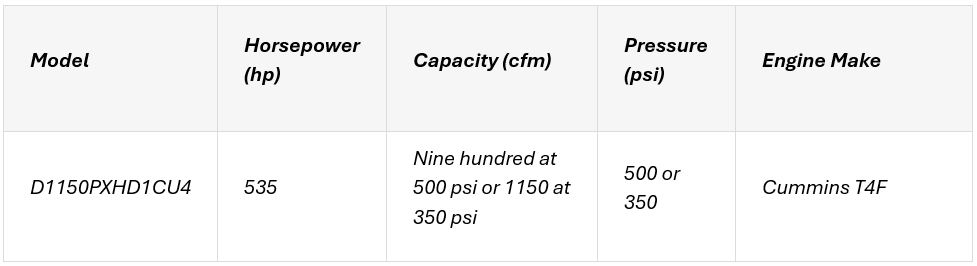

D1150 Two Stage Dual Pressure Dual Capacity Compressors

  • High Low Selection Switch
  • Automatic 0 to 100% Capacity
  • One 3” Service Connection
  • Oil Level Sight Gauge
  • Steel Fuel Tanks
  • Ether Starting Aid
  • Single Point Lifting Bail
  • Noise Level Limited to Maximum of 76 dBA at 7 Meters
  • Automatic Shutdown and Protection System
  • Automatic Blowdown Valve
  • Unloaded warm up
  • Adjustable 3” Lunette Eye
  • Six Large Service Doors for Ease of Maintenance

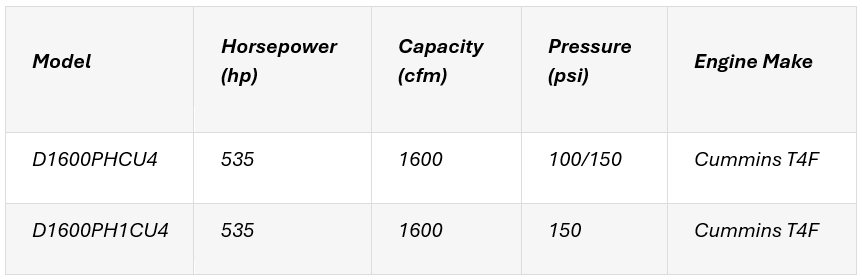

D1600-D1800 Portable Series Compressors

  • NEW Large 321mm Diameter Twin Screw Air End Manufactured by Sullivan-Palatek
  • Exclusive Three Year Warranty
  • Automatic 0 to 100% Capacity Control
  • 10” Closed Start, Inlet Valve
  • 3” Service Connection
  • Oil Level Sight Gauge
  • Steel Fuel Tank (TC Certified)
  • Four Point Lifting Bail
  • Dual Axle Running Gear
  • Electric Brakes
  • Adjustable 3” Lunette Eye
  • Noise Level Limited to Maximum of 76 dBA at 7 Meters
  • Automatic Shutdown and Protection System
  • Direct Drive
  • Containment Base
  • Large Service Doors for Easy Maintenance
  • Automatic Blowdown Valve
  • Dual Air Outlets (with Aftercooler option)
  • NEW! Sullivan-Palatek Electronic Controller (SPEC)

Because Sullivan Pallatek offers so many replacement parts we do not list them here on this site.

Call or email us with your PART NUMBER or for assistance finding it.

sales@centralaircomp.com

Toll Free: (877) 523-7277

Women's Business Enterprise
Share by:
