Rotary Screw Series

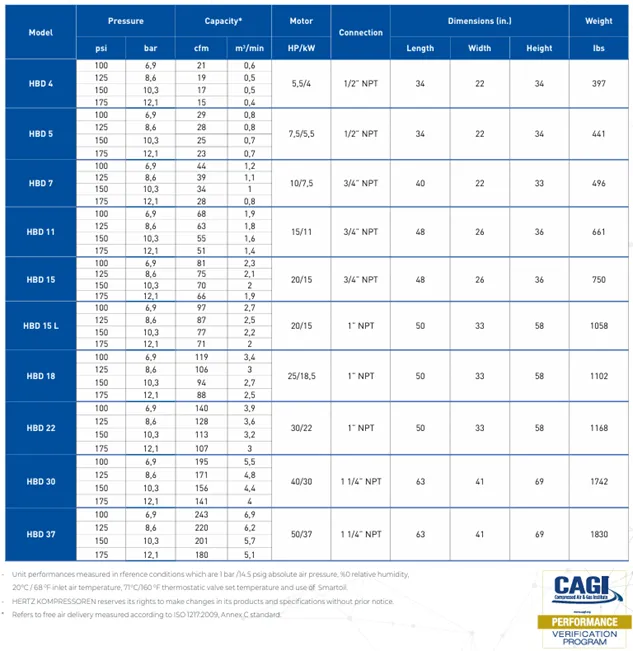

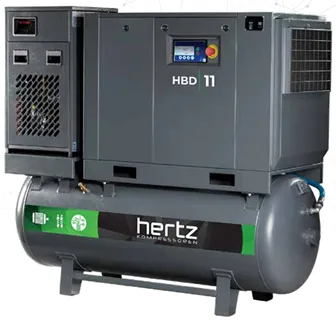

Hbd – Oil Injected, Belt Driven, Fixed Speed Compressor

15-243 cfm, 5.5-50 HP, 100-235 & 150-175 psi

General Features

High quality screw block and motor
Electronic control
Optional pressure air tank made from high pressure vessel steel (up to 30HP)
Easy installation and quick implementation thanks to its compact design
All air and oil tanks comply with ASME standards

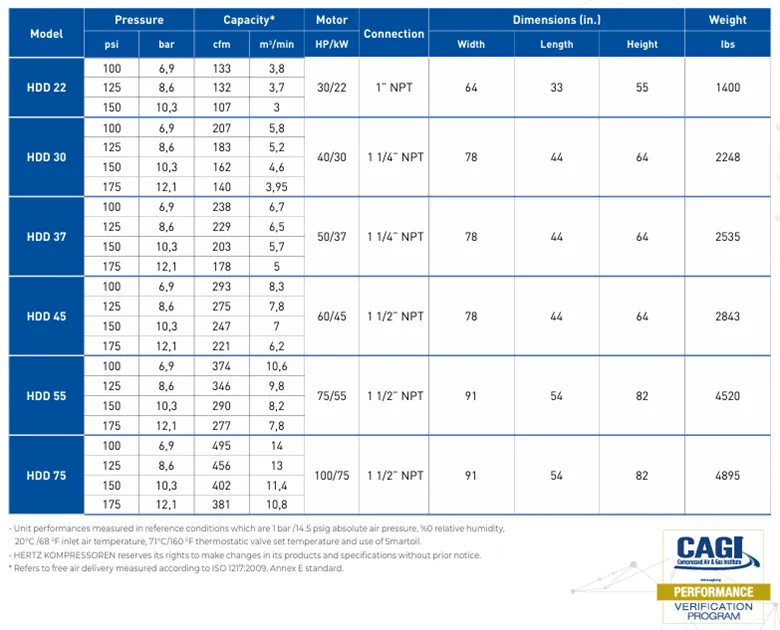

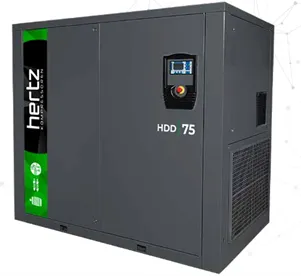

Hdd – Oil Injected – Direct Coupled – Fixed Speed

107-495 cfm, 30-100HP, 100-125 & 150-175 psi

General Features

Usage up to 113 degrees Fahrenheit ambient temperature
Suction filter with silencer casing and pre-filtration
Flexible pipe coupling joints used for water separator
Optimum inner cabinet air flow for better cooling and air suction
Oil tank heater for cold environments (optional)

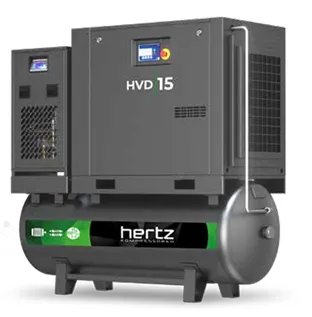

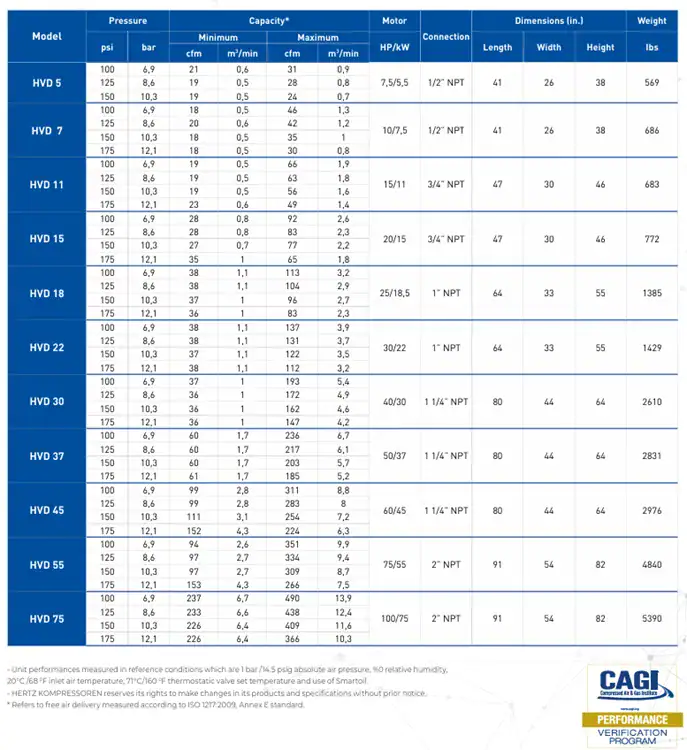

Hvd – Oil Injected – Direct Coupled – Variable Speed

18-490 cfm, 7.5-100HP, 100-125 &150-175 psi

General Features

High-quality, easy-to-replace components with a long service life
Next generation screw block and motor
Electric control
Soft starter (optional)
Water cooling (optional)
Tank mounted (up to 20HP)
Heat recovery (optional)
Food grade oil suitable for food production (optional)

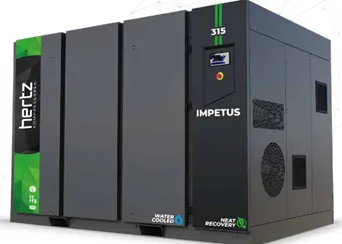

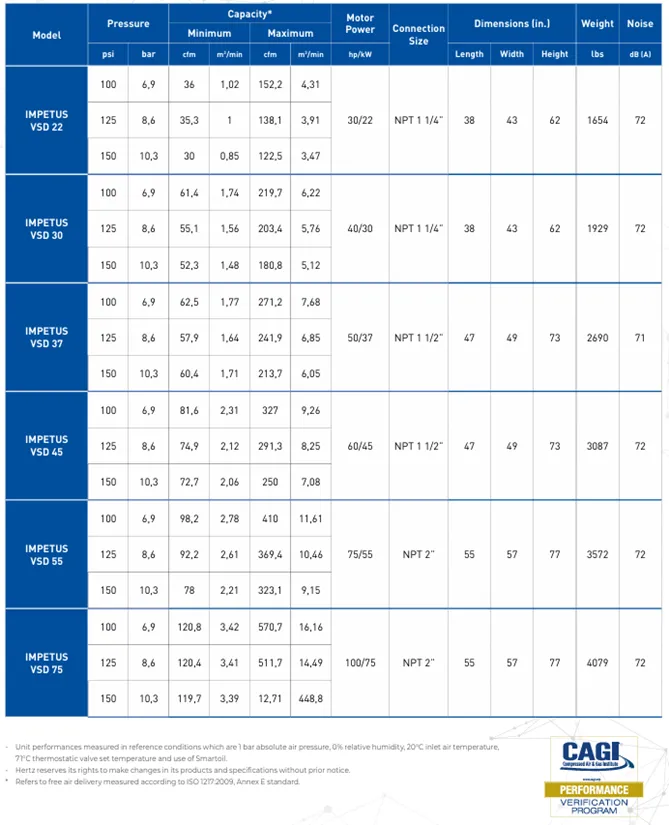

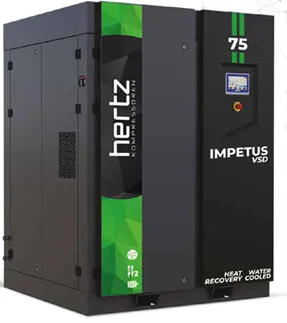

Impetus – Oil Injected – Two-stage – Direct Coupled – Variable Speed

30-120 cfm, 30-100HP, 100-120-150 psi

General Features

IE5 efficiency-class IPM electric motors
Two- stage screw block
Water cooling (50HP/ 37 kW and above)
Soft start with variable speed power transmission
Operating with low noise level
Integrating dryer (optional)
Heat recovery (optional)

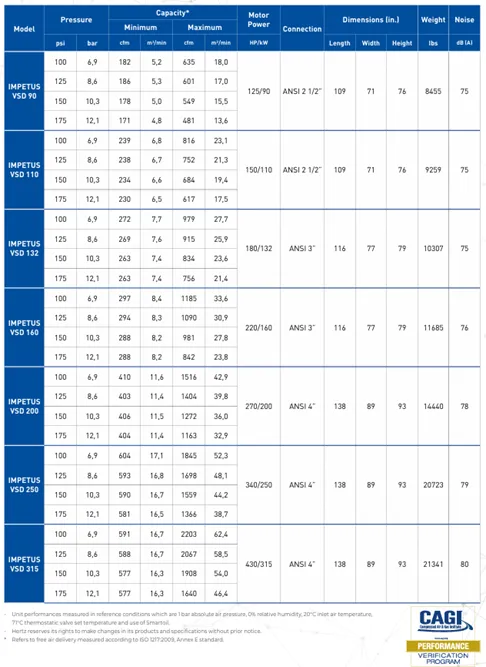

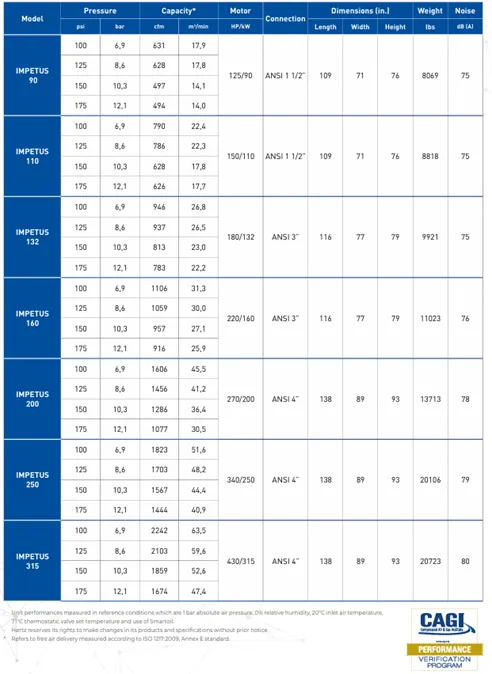

Impetus – Oil Injected – Two-stage – Direct Coupled – Fixed/variable Speed

171-2242 cfm, 125-430HP, 110-125 & 145-190 psi

General Features

IE4 efficiency-class electric motors
Two-stage screw block
Variable and fixed speed motor power options
Water cooling and heat recovery (optional)
Operating with low noise level

Oil Free Series

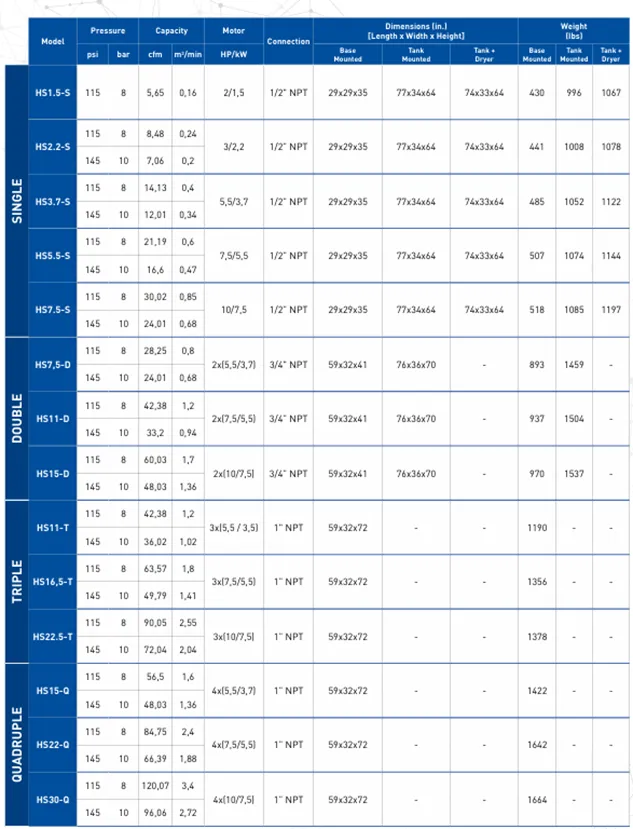

Hs Scroll – Oil Free – Belt Driven

Hs Scroll – Oil Free – Belt Driven
5.65 cfm, 2-40HP, 115-145 psi

General Features

Compact design
Soundproofed canopy
Internal air cooler(s), water separator and stainless pipes
Robust and durable single unit or stacked design

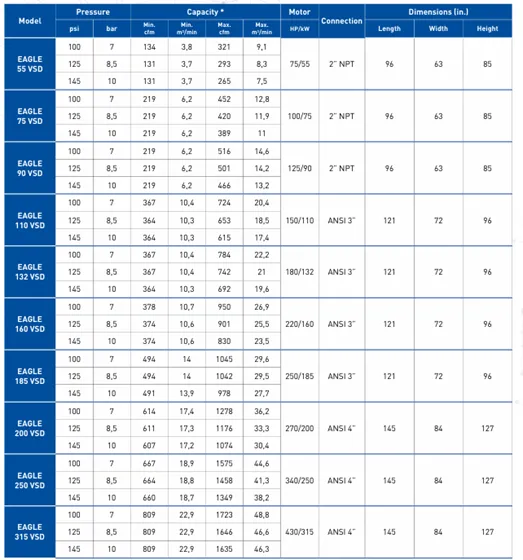

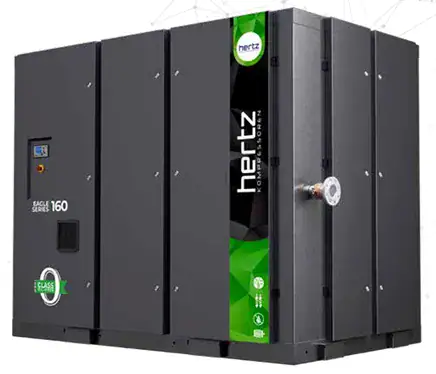

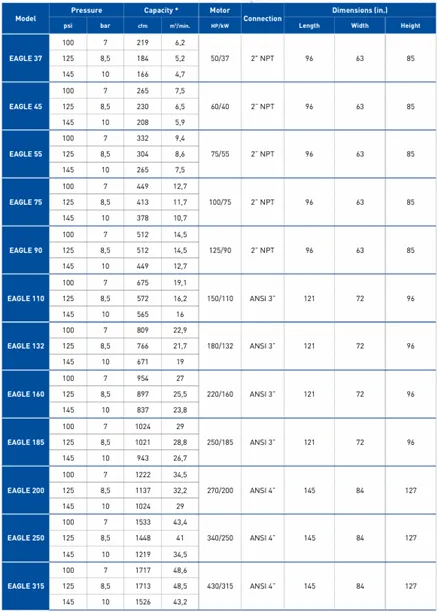

Eagle – Oil-free – Direct Coupled – Fixed/variable Speed

131-1723 cfm, 50-430HP, 100-125 &145 psi

General Features

IE4 efficiency-class electric motors
Soundproofed canopy
Electrostatic coated canopy components for high
corrosion resistance
Electric motor protection to prevent overload
Air-cooled and water-cooled options available
Fixed and variable speed drive options
Soft starting at variable speed models
Soft starter at fixed speed models
Direct coupled drive system

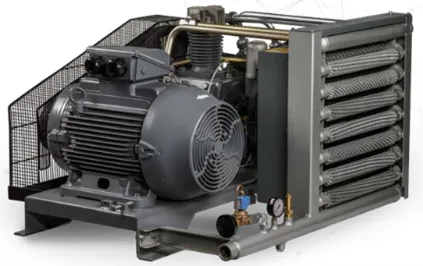

Hpc Booster – Oil Injected – Belt Driven

73-392 cfm, 10-40HP, 218-580 psi

General Features

Electric motor protection to prevent overload
Air-cooled compressor units
Energy-saving Load/Unload System for efficient operation
Low speed operation
Lubrication system with splashing
Dedicated discharge system to prevent oil discharge from blow-off valve
Automatic discharge system for load less start
Star/delta motor starter
Soft starter (optional)

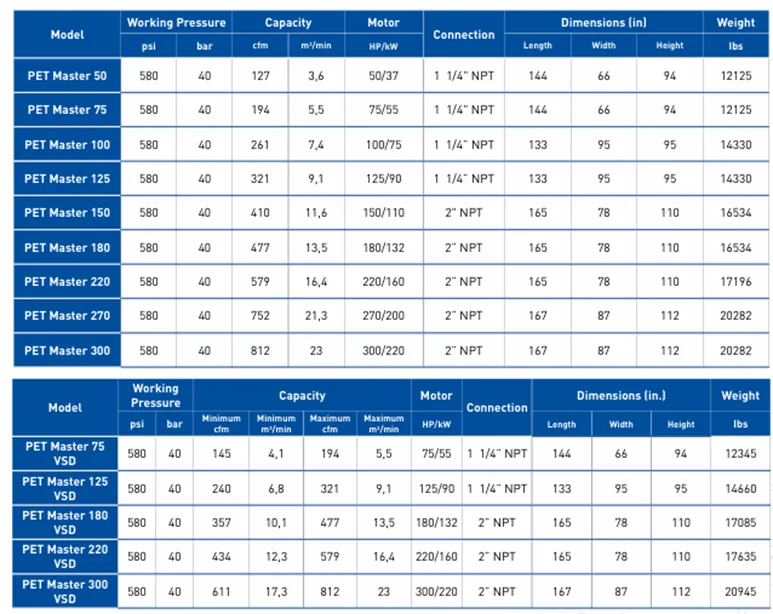

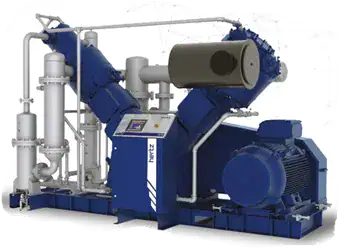

Pet Master – Oil-free – Water Cooled – Fixed/variable Speed

127-812 cfm, 50-300HP, 580 psi

General Features

Reciprocating compressor providing 100% oil-free industrial air
Electric motor protection to prevent overload
Water-cooled design for high energy efficiency and ability to work in severe conditions
Energy-saving Load/Unload System for efficient operation
Integrated electrical system for user-friendly operation
290-580 psi operating range
