WHY MATTEI® IS YOUR BEST CHOICE
Mattei air compressors are designed to give constant top performance 24/7. Extremely rugged and reliable, each is designed for outstanding durability and value.
With a Mattei you get:
- Unaltered performance through time
- No wear of the compressor’s moving mechanical parts
- Energy saving operation
- Pulse-free air
- Compact design
- Low oil volume and consumption
- Direct coupled compressor and motor
- Slow rotational speed
- Low maintenance
- Quiet operation
Variable Speed Compressors
RVXi 55-75-90
These rotary vane compressors focus on sustainability and energy-savings.
Flow rate from 184 to 584 acfm with powers of 75, 100, 125 hp / 55, 75 and 90 kW.
| Model | Nominal Operating Pressure | Sound Pressure Level | Nominal Power | ||||
|---|---|---|---|---|---|---|---|
| 7-10 bar(g) 102-145 psig | 7-13 bar(g) 102-188 psig (H) | ||||||
| m³/min | cfm | m³/min | cfm | dB(A) | KW | hp | |
| 460/60HZ/3 | |||||||
| RVX 55 i | 5.22 - 10.3 | 184 - 364 | 4.94 - 9.75 | 174 - 344 | 68 | 55 | 75 |
| RVX 75 i | 6.55 - 12.94 | 231 - 457 | 6.05 - 11.92 | 214 - 421 | 68 | 75 | 100 |
| RVX 90 i | 8.39 - 16.55 | 296 - 584 | 6.43 - 12.67 | 227 - 447 | 68 | 90 | 125 |
*Performances after 500 hours running in. For zero hours performances contact Mattei
RVD 7-11
Direct-drive air compressors are easy to handle, robust and versatile, and are the perfect solution for small and medium-sized companies and small craft businesses.
Flow rate from 40.2 to 54.7 acfm with powers of 10 hp, 15 hp / 7.5 kW, 11 kW.
| Model | F.A.D. | Sound Pressure Level | Nominal Power | ||
|---|---|---|---|---|---|
| 10 bar(g) 145 psig (H) | |||||
| m³/min | acfm | dB(A) | KW | hp | |
| 208 - 230/460V/60HZ/3 | |||||
| RVD 7 | 1.14 | 40.2 | 66 | 7.5 | 10 |
| RVD 11 | 1.55 | 50.7 | 66 | 11 | 15 |
RVDi 30-55
Direct-drive variable speed air compressors are easy to handle, robust and versatile, and are the perfect solution for small and medium-sized companies and small craft businesses.
Flow rate from 99.6 to 327.4 acfm and powers of 40/50/60/75 HP
| Model | Nominal Operating Pressure | Sound Pressure Level | Nominal Power | ||
| 7 ÷ 10 bar(g) 102 - 145 psig | |||||
| m³/min | acfm | dB(A) | KW | hp | |
| 460V/60HZ/3 | |||||
| RVD 30i | 2.82 ÷ 5.03 | 99.59 ÷ 177,63 | 66 | 30 | 40 |
| RVD 37i | 3.69 ÷ 6.59 | 130.31 ÷ 232.72 | 66 | 37 | 50 |
| RVD 45i | 4.58 ÷ 8.18 | 161.74 ÷ 288.87 | 66 | 45 | 60 |
| RVD 55i | 5.19 ÷ 9.27 | 183.28 ÷ 327,37 | 66 | 55 | 75 |
BLADE i 15-22
| Model | Max Operating Pressure | F.A.D. | Sound Pressure Level | Power | |||
|---|---|---|---|---|---|---|---|
| bar(g) | psig | m³/min | cfm | dB(A) | KW | hp | |
| 460V/60HZ/3 | |||||||
| BLADE 15 i | 7 - 10 | 102 - 145 | 1.68 - 2.65 | 59 - 94 | 66 | 15 | 20 |
| BLADE 18 i | 7 - 10 | 102 - 145 | 2.01 - 3.18 | 71 - 112 | 66 | 18.5 | 25 |
| BLADE 22 i | 7 - 10 | 102 - 145 | 2.27 - 3.59 | 80.2 - 127 | 66 | 22 | 30 |
OPTIMA 200
These rotary vane compressors are designed to meet the needs of a production that is particularly energy efficient.
Flow rate from 635 to 1,251 acfm with a power of 275 hp / 200 kW.
- Model: OPTIMA 200
- Max Operating Pressure: 102 ÷ 145 psig | 7 – 10 bar(g)
- Min F.A.D.: 635 acfm | 17.92 m³/min
- Max F.A.D.: 1251 acfm | 35.42 m³/min
- Sound Pressure Level: 75 dB(A)
- Power: 275 hp | 200 kW
- Voltage: 460 V
- Frequency: 60 Hz
- Phases: 3
- Length: 106 inch | 2692 mm
- Width: 70 inch | 1778 mm
- Height: 88 inch | 2235 mm
- Weight: 10472 lbs | 4750 kg
Fixed Speed Compressors

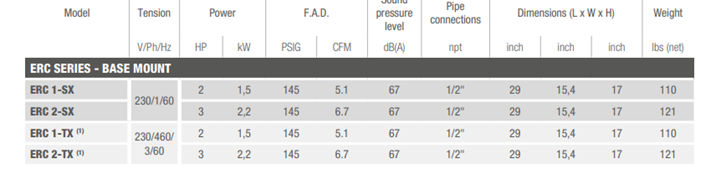

Classic ERC Series
Mattei Classic ERC series air compressors feature open-frame base-mount construction and are perfect for any industrial application.
Models from 5 to 20 HP/4 to 15 kW are also available mounted and piped onto an air receiver tank.

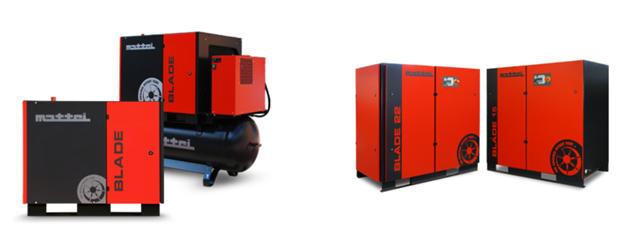

BLADE Series
BLADE compressors are ideal to contain investment and operating costs while obtaining a top level and reliable product that provides high-quality compressed air.
RVD 7-11
Direct-drive air compressors are easy to handle, robust and versatile, and are the perfect solution for small and medium-sized companies and small craft businesses.
Flow rate from 40.2 to 54.7 acfm.
Powers of 10 hp, 15 hp / 7.5 kW, 11 kW.
| Model | F.A.D. | Sound Pressure Level | Nominal Power | ||
|---|---|---|---|---|---|
| 10 bar(g) 145 psig (H) | |||||
| m³/min | acfm | dB(A) | KW | hp | |
| 208 - 230/460V/60HZ/3 | |||||
| RVD 7 | 1.14 | 40.2 | 66 | 7.5 | 10 |
| RVD 11 | 1.55 | 50.7 | 66 | 11 | 15 |
RVD 30-55
Direct-drive fixed-speed air compressors are easy to handle, robust and versatile, and are the perfect solution for small and medium-sized companies and small craft businesses.
Flow rate from 202 to 325.9 acfm
Powers of 40/50/60/75 HP
| Model | Nominal Operating Pressure | Sound Pressure Level | Power | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 8 bar(g) 116 psig L | 10 bar(g) 145 psig H | 13 bar(g) 189 psig HH | |||||||
| m³/min | acfm | m³/min | acfm | m³/min | acfm | dB(A) | KW | hp | |
| 460V/60HZ/3 | |||||||||
| RVD 30 | 5.76 | 203.41 | 4.65 | 164.21 | 3.46 | 122.18 | 68 | 30 | 40 |
| RVD 37 | 6.85 | 241.9 | 5.77 | 203.76 | 4.53 | 159.97 | 68 | 37 | 50 |
| RVD 45 | 8.29 | 292.75 | 7.05 | 248.96 | 5.96 | 210.47 | 68 | 45 | 60 |
| RVD 55 | 9.10 | 321.36 | 7.83 | 276.51 | 6.8 | 240.13 | 68 | 55 | 75 |
MAXIMA Series
Mattei MAXIMA Series air compressors feature a quiet cabinet enclosure, base-mount construction and are perfect for any industrial application.
RVX Series
RVX rotary vane compressors are designed with particular focus on energy savings and environmental protection; they generate energy savings that are hard to beat.
| Model | F.A.D. | Sound Pressure Level | Power | ||||
|---|---|---|---|---|---|---|---|
| 8 bar(g) 115 psig | 10 bar(g) 145 psig | KW | hp | ||||
| m³/min | acfm | m³/min | acfm | dB(A) | |||
| 460V/60HZ/3 | |||||||
| RVX 55 | 9.71 | 343 | 9 | 318 | 68 | 55 | 75 |
| RVX 75 | 12.2 | 431 | 11.4 | 403 | 68 | 75 | 100 |
| RVX 90 | 15.6 | 551 | 14.5 | 512 | 68 | 90 | 122 |
Because Mattei offers so many replacement parts we do not list them here on this site.
Call or email us with your PART NUMBER or for assistance finding it.
