Industrial Air and Vacuum
Laboratory Air and Vacuum
Laboratory Air
Laboratory Vacuum
Powerex Industrial Air Compressors
Open Oil-less Scroll
Our innovative scroll technology is completely oil-less, extremely quiet, energy efficient and easy to maintain. Mounting the scroll compressor on the tank itself maximizes available floor space and allows for easy access to the compressors for maintenance.
- Simplex Model
- 8.8 cfm – 15.25 cfm
- @ 100 psi
Enclosed Oil-less Scroll
Our innovative scroll technology is completely oil-less, extremely quiet, energy efficient, and easy to maintain. The sound enclosure cabinet decreases noise levels even further, allowing the compressor system to be installed right at the point of use. The small footprint also helps maximize available floor space.
- Pressure up to 145 psi
- Simplex Model
- 8.8 cfm – 15.25 cfm
- @ 100 psi
- Multiplex Model
- 30.4 scfm – 100 scfm
- @ 100 psi
Enclosed Scroll Systems
The sound enclosure cabinet decreases noise levels even further, allowing the compressor system to be installed right at the point of use. The small footprint also helps maximize available floor space
- Oil-less scroll pump technology
- Low maintenance
- Low noise and vibration levels
- Manufactured in ISO 9001:2015 certified facilities
| MODEL | System HP | Pump HP | SCFM @ 100 PSIG | Tank (gal) | dB(A) Level | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|
| SES0308 | 3 | 3 | 8.8 | 13 | 49 | 9 | 8.1 | 4.2 |
| SES1308 | 3 | 3 | 8.8 | 13 | 49 | - | 13 | - |
| SES0508 | 5 | 5 | 15.2 | 13 | 51 | 14.5 | 13.1 | 6.6 |
| SES1518 | 5 | 5 | 15.2 | 13 | 51 | - | 23.4 | - |
Climate Control Systems
The compressor motors are NEMA Class B design. Our duplex configuration (AD models) are ideal for instrumentation systems requiring an alternate compressor for standby or overload capacity.
- Low annual maintenance cost
- 0-2 PPM Oil Carryover
- UL listed controls
- Low noise
- NEMA 1 Enclosure
- High Efficiency and EISA compliant motors (except 3/4 HP models)
| MODEL | System HP | Pump HP | SCFM @ 100 PSIG | Tank (gal) | dB(A) Level | FLA @ 115V | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|---|
| AS1101 | 1 | 1 | 4.2 | 30 | 69 | 16 | 8.8 | 8 | - |
| AS0101 | 1 | 1 | 4.2 | 30 | 69 | - | 4.6 | 4.2 | 2.1 |
| AS0202 | 2 | 2 | 6.7 | 60 | 70 | - | 5.95 | 5.4 | 2.7 |
| AS0303 | 3 | 3 | 10.1 | 80 | 70 | - | 8.5 | 7.7 | 3.9 |

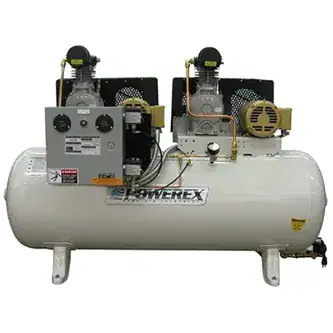

Oil-less Reciprocating Piston
The self-lubricating composite piston technology increases ring life and reduces temperature providing reliability for years to come. The dual cooling fans on 2-15 HP models reduce operating temperatures and the corrosion resistant components and coatings extend ring and valve life.
- Oil-less reciprocating piston pump technology
- Low maintenance
- Manufactured in ISO 9001:2015 certified facilities
| MODEL | System HP | Pump HP | SCFM @ 100 PSIG | Tank (gal) | dB(A) Level | FLA @ 115V | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|---|
| 0TS1101 | 1 | 1 | 3.0 | 30 | 71 | 18 | 11 | 10 | - |
| OTS0101 | 1 | 1 | 3.0 | 30 | 71 | - | 6 | 6 | 4 |
| OTS1102 | 1 | 1 | 3.0 | 60 | 71 | 18 | 11 | 10 | - |
| OTS0102 | 1 | 1 | 3.0 | 60 | 71 | - | 6 | 6 | 4 |
| OTS1151 | 1.5 | 1.5 | 4.2 | 30 | 71 | 22 | 13 | 12 | - |
| OTS0151 | 1.5 | 1.5 | 4.2 | 30 | 71 | - | 8 | 7 | 4 |
| OTS1152 | 1.5 | 1.5 | 4.2 | 60 | 71 | 22 | 13 | 12 | - |
| OTS0152 | 1.5 | 1.5 | 4.2 | 60 | 71 | - | 8 | 7 | 4 |
| OTS1202 | 2 | 2 | 7.2 | 60 | 71 | - | 15 | 14 | - |
| OTS0202 | 2 | 2 | 7.2 | 60 | 71 | - | 9 | 8 | 5 |
| OTS1303 | 3 | 3 | 10.1 | 80 | 71 | - | 21 | 19 | - |
| OTS0303 | 3 | 3 | 10.1 | 80 | 71 | - | 12 | 11 | 6 |
| OTS1513 | 5 | 5 | 18.2 | 80 | 75 | - | 33 | 30 | - |
| OTS0503 | 5 | 5 | 18.2 | 80 | 75 | - | 18 | 17 | 9 |
| OTS1514 | 5 | 5 | 18.2 | 120 | 75 | - | 33 | 30 | - |
| OTS0504 | 5 | 5 | 18.2 | 120 | 75 | - | 18 | 17 | 9 |
| OTS0754 | 7.5 | 7.5 | 28.4 | 120 | 76 | - | 26 | 23 | 12 |
| OTS1004 | 10 | 10 | 35.4 | 120 | 76 | - | 32 | 29 | 15 |
| OTS1504 | 15 | 15 | 45.2 | 120 | 79 | - | 48 | 44 | 22 |

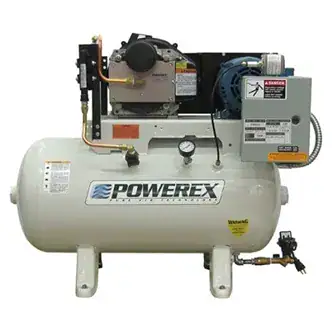

Scroll Open Tank Mount Systems
Mounting the scroll compressor of the tank itself maximizes available floor space and allows for easy access to the compressor for maintenance. Systems with our oil-less scroll pumps are also ideal for situations where excessive noise or vibration may be an issue.
Features
- Scroll pump technology – 100% oil-less
- Less noise and vibration than comparable reciprocating piston compressors
- Easy installation
- Maximizes floor space
- Lower overall maintenance cost than oil-flooded systems
- UL listed magnetic starter
- UL508A listed control panel
- Available with industry-first 10hp scroll pumps
- Manufactured in ISO 9001:2015 certified facilities
| Model | System HP | Pump HP | SCFM @ 100 PSIG | Tank (gal) | dB(A) Level | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|
| STS0301 | 3 | 3 | 8.8 | 30 | 66 | 8.5 | 7.7 | 3.9 |
| STS1301 | 3 | 3 | 8.8 | 30 | 66 | 16.8 | 16 | - |
| STS0302 | 3 | 3 | 8.8 | 60 | 66 | 8.5 | 7.7 | 3.9 |
| STS1302 | 3 | 3 | 8.8 | 60 | 66 | 16.8 | 16 | - |
| STS0501 | 5 | 5 | 15.2 | 30 | 70 | 14 | 12.7 | 6.3 |
| STS1511 | 5 | 5 | 15.2 | 30 | 70 | 24 | 23 | - |
| STS0502 | 5 | 5 | 15.2 | 60 | 70 | 18 | 12.7 | 6.3 |
| STS1512 | 5 | 5 | 15.2 | 60 | 70 | 24 | 23 | - |
| STS0503 | 5 | 5 | 15.2 | 80 | 70 | 18 | 12.7 | 6.3 |
| STS1513 | 5 | 5 | 15.2 | 80 | 70 | 24 | 23 | - |
| STS0754 | 7.5 | 7.5 | 23.1 | 120 | 74 | 19.2 | 17.3 | 8.7 |
| STS0755 | 7.5 | 7.5 | 23.1 | 200 | 74 | 19.2 | 17.3 | 8.7 |
| STS0756 | 7.5 | 7.5 | 23.1 | 240 | 74 | 19.2 | 17.3 | 8.7 |
| STS10B4 | 10 | 10 | 31.2 | 120 | 76 | 26.5 | 24 | 12 |
| STS10B5 | 10 | 10 | 31.2 | 200 | 76 | 26.5 | 24 | 12 |
| STS10B6 | 10 | 10 | 31.2 | 240 | 76 | 26.5 | 24 | 12 |

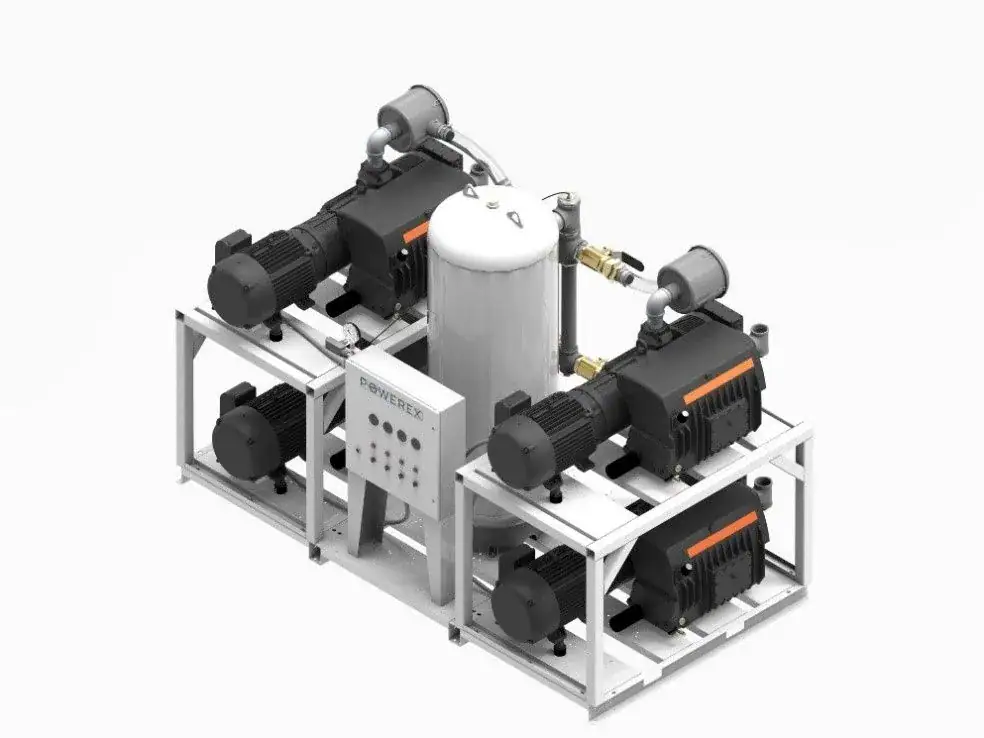

Open Industrial Vacuum Systems
Features
- 29.3” Hg End Vacuum
- Integrated Coalescing Filter
- High Temp Alarm Standard
- ASME Air Receivers
- UL-listed NEMA 1 Control Panel
- Low annual maintenance cost
- Easy installation
- Low operating temperatures
- Manufactured in ISO 9001:2015 certified facilities
| Model | System HP | Pump HP | SCFM @ 19" Hg | Tank (gal) | dB(A) Level | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|
| Duplex | ||||||||
| IBVD1506 | 30 | 15 | 222 | 240 | 82 | 82.8 | 79.6 | 40.8 |
| IBVD2006 | 40 | 20 | 274 | 240 | 82 | 110 | 106 | 54 |
| IBVD2506 | 50 | 25 | 336 | 240 | 82 | 138 | 126 | 64 |

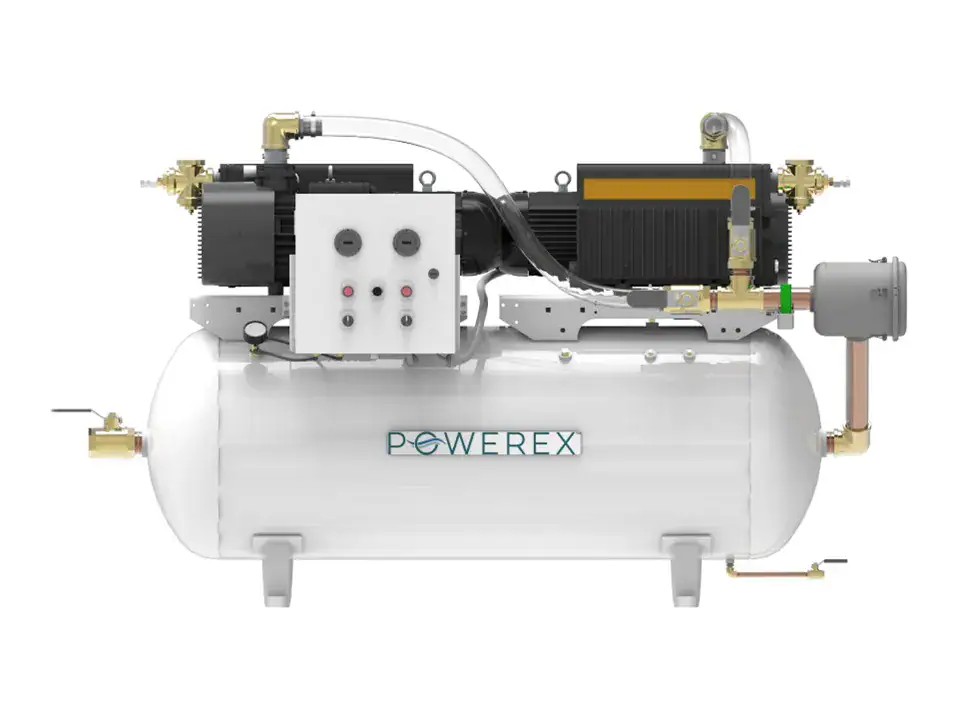

Industrial Vacuum Tankmount Systems
Features
- 29.3” Hg End Vacuum
- Integrated Coalescing Filter
- High Temp Alarm Standard
- ASME Air Receivers
- UL-listed NEMA 1 Control Panel
- Low annual maintenance cost
- Easy installation
- Low operating temperatures
- Manufactured in ISO 9001:2015 certified facilities
| Model | System HP | Pump HP | SCFM @ 19” Hg | Tank (gal) | dB(A) Level | FLA @ 208V | FLA @ 230V | FLA @ 460V |
|---|---|---|---|---|---|---|---|---|
| IBVS0151 | 1.5 | 1.5 | 6 | 30 | 63 | 7.3 | 7 | 4.5 |
| IBVS0152 | 1.5 | 1.5 | 6 | 60 | 63 | 7.3 | 7 | 4.5 |
| IBVS0202 | 2 | 2 | 11 | 60 | 66 | 5.9 | 8.2 | 5.1 |
| IBVS0303 | 3 | 3 | 16 | 80 | 66 | 11.1 | 10.4 | 6.2 |
| IBVS0403 | 5 | 5 | 24 | 80 | 68 | 18.2 | 16.2 | 9.1 |
| IBVS0503 | 5 | 5 | 37 | 80 | 72 | 18.2 | 16.2 | 9.1 |
| IBVS0754 | 7.5 | 7.5 | 47 | 120 | 80 | 26 | 23.2 | 12.6 |
| IBVS1004 | 10 | 10 | 77 | 120 | 81 | 33.2 | 29.8 | 15.9 |
| IBVS1005 | 10 | 10 | 77 | 200 | 81 | 33.2 | 29.8 | 15.9 |
| IBVS1506 | 15 | 15 | 111 | 240 | 79 | 42.4 | 40.8 | 21.4 |
| IBVS2006 | 20 | 20 | 137 | 240 | 79 | 56 | 54 | 28 |
| IBVS2506 | 25 | 25 | 168 | 240 | 79 | 70 | 64 | 33 |

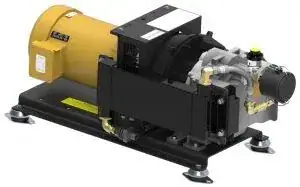

Standard SDC Systems
Features
- 100% oil-less scroll pump
- Low noise: 75 dB(A) at 1 meter
- Long life compression seals
- Rated for continuous operation
- Operating temperature range up to 140°F
- Manufactured in ISO 9001:2015 certified facilities
| Model | System HP | SCFM @ Max PSIG | Max PSIG | dB(A) Level | System Weight (lbs) |
|---|---|---|---|---|---|
| SDCSS050020SD07 | 5 | 16.1 | 115 | 75 | 170 |
| SDCHS050020SD03 | 5 | 13.3 | 145 | 75 | 170 |

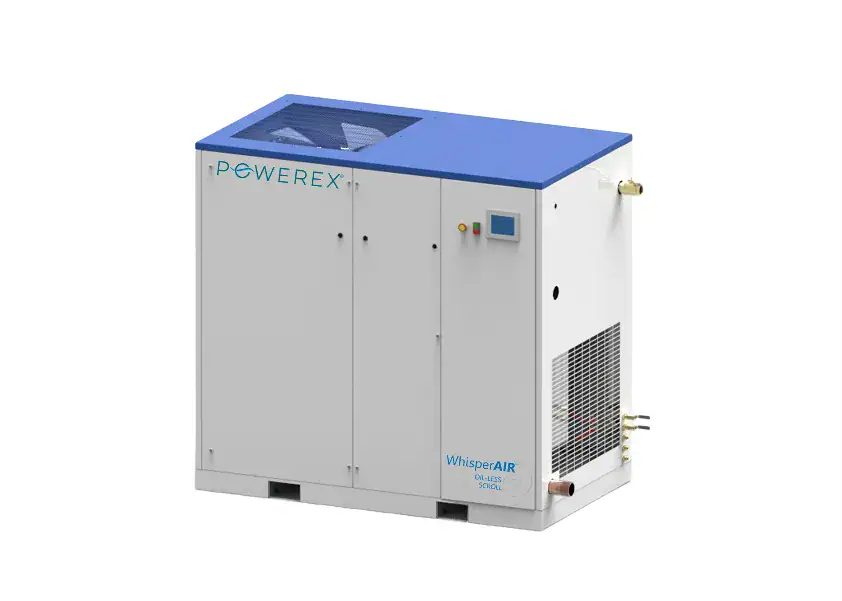

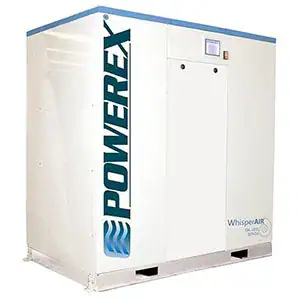

Laboratory Scroll Enclosure Systems
Features
- Oil-less scroll pump technology
- Low maintenance
- Manufactured in ISO 9001:2015 certified facilities
| Model | HP | SCFM @ 145 PSIG/ *100 PSIG | Tank (gal) | dB(A) Level | FLA @ 208V, 3PH | FLA @ 230V, 3PH | FLA @ 460V, 3PH |
|---|---|---|---|---|---|---|---|
| LSE1003 | 10(1) | 15.2 | 80 | 53 | 30.8 | 28 | 15 |
| LSE1504 | 15(1) | 30.4 | 120 | 56 | 45.2 | 41 | 21.5 |
| LSE2005 | 20(1) | 45.6 | 200 | 58 | 59.6 | 54 | 28 |
| LSE3005 | 30(1) | 60.8 | 200 | 59 | 88.4 | 80 | 40.9 |
| LSE4005 | 40(1) | 91.2 | 200 | 60 | 117.2 | 106 | 53.9 |
Laboratory Scroll Open Systems
Features
- Oil-less scroll pump technology
- Low maintenance and easily serviceable
- Best-in-class footprint
- Manufactured in ISO 9001:2015 certified facilities
| Model | HP | SCFM @ 145 PSIG/ *100 PSIG | Tank (gal) | dB(A) Level | FLA @ 208V, 3PH | FLA @ 230V, 3PH | FLA @ 460V, 3PH |
|---|---|---|---|---|---|---|---|
| LSD02A3 | 2(2) | 9.2 | 80 | 70 | 13.9 | 12.8 | 7.4 |
| LSD03A3 | 3(2) | 14.2 | 80 | 75 | 19.1 | 174 | 9.7 |
| LSD05A3 | 5(2) | 25 | 80 | 75 | 30 | 27.4 | 14.7 |
| LSD0754 | 7.5(2) | 46.2* | 120 | 74 | 40.4 | 36.6 | 19.3 |
| LSD10A4 | 10(2) | 50 | 120 | 77 | 58 | 52.8 | 27.3 |
| LSD10A5 | 10(2) | 50 | 200 | 77 | 58 | 52.8 | 27.3 |
| LSD10B4 | 10(2) | 62.4* | 120 | 76 | 55.0 | 50.0 | 26.0 |
| LSD15A5 | 15(2) | 75 | 200 | 78 | 86 | 78.2 | 40 |
| LSD15A6 | 15(2) | 75 | 240 | 78 | 86 | 78.2 | 40 |
| LSD15B5 | 7.5(4) | 92.4* | 200 | 77 | 40.4 | 36.6 | 19.3 |
| LSD20B5 | 10(4) | 124.8* | 200 | 79 | 55.0 | 50.0 | 26.0 |
Powerex Industrial Vacuum Systems
Our lubricated rotary vane vacuum system is perfect for more industrial applications, like molding, packaging and printing. The tank-mounted design allows for easy maintenance, easy installation and a small system footprint.

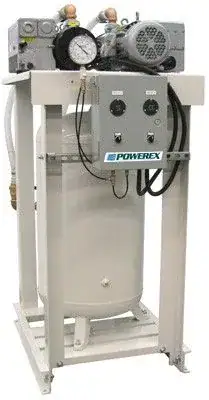

IVS Simplex Models – Industrial Vacuum Systems (with Basic Controls)
- 7 cfm – 77 cfm
- @ 19″ Hg

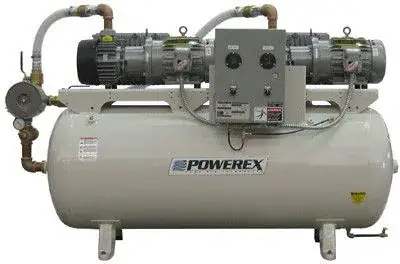

IVD Duplex Models – Industrial Vacuum Systems (with Basic Controls)
- 7 cfm – 77 cfm
- @ 19″ Hg
Powerex Transportation
SBB and SDC Simplex Models – Oil-less Scroll Systems
| MODEL | HP | Max. PSIG | SCFM @ Max. PSIG |
|---|---|---|---|
| SBB030700 | 3 | 115 | 8.7 |
| SBB030700HP | 3 | 145 | 7.1 |
| SBB050700 | 5 | 115 | 16.1 |
| SBB050700HP | 5 | 145 | 12.1 |
| SDC050700HP | 5 | 145 | 13.3 |

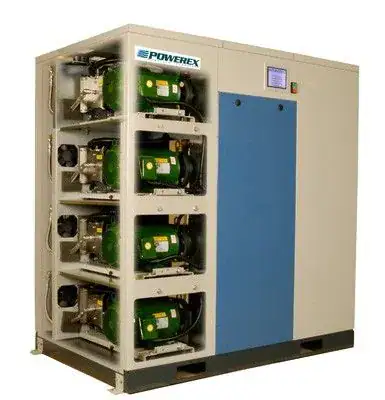

Powerex Laboratory Air
Enclosed Scroll
Our laboratory air compressors systems feature our proven oil-less scroll technology in a sound enclosure cabinet to minimize noise and system footprint. These systems are great for applications in the research field.
- Multiplex System
- 15.2 cfm – 182.4 cfm
- @ 100 psi
Open Scroll
Our laboratory air compressor systems feature our proven oil-less scroll technology in a open configuration for each maintenance access. These systems are great for applications in the research field, especially our multiplex systems with built in redundancy capabilities.
- System is OSH PO (Seismic Certified)
- 9.2 cfm – 46.2 cfm
Laboratory Rotary Screw Enclosure Systems
- OIL-FREE RISK-FREE ROTARY SCREW DESIGN
- PREMIUM EFFICIENT MOTOR
- QUIET
| MODEL | HP | SCFM @ 100 PSIG | Tank (gal) | dB(A) Level | FLA @ 208V,3PH |
|---|---|---|---|---|---|
| LDRE0406 | 40 | 244 | 240 | 70 | 156 |
| LDRE0507 | 50 | 344 | 400 | 78 | 196 |
| LDRE0607 | 60 | 446 | 400 | 78 | 228 |
| LDRE0757 | 75 | 584 | 400 | 79 | 278 |
Laboratory Claw Enclosure Systems
Features
- Lowest noise level on the market
- Energy efficient technology
- Oil-free compression chamber
- Low maintenance
- No water and sewage costs
- Manufactured in ISO 9001:2015 certified facilities
| Model | HP | SCFM @ 19" Hg | Tank (gal) | dB(A) Level | FLA @ 208V, 3PH | FLA @ 230V, 3PH | FLA @ 460V, 3PH |
|---|---|---|---|---|---|---|---|
| LCED0507 | 5 | 66 | - | 64 | 30.4 | 28.8 | 15.4 |
| LCED0707 | 7.5 | 105.6 | - | 64 | 42.2 | 40.8 | 21.4 |
| LCED0757 | 7.5 | 135.6 | - | 64 | 42.4 | 40.8 | 21.4 |
| LCED0504 | 5 | 66 | 120 | 67 | 30.4 | 28.8 | 15.4 |
| LCED0704 | 7.5 | 105.6 | 120 | 67 | 42.4 | 40.8 | 21.4 |
| LCED0754 | 7.5 | 135.6 | 120 | 67 | 42.4 | 40.8 | 21.4 |
Laboratory Lubricated Vane Open Systems
Features
- Extremely reliable
- Highest ultimate vacuum levels
- Long vane life
- No water and sewage costs
- Manufactured in ISO 9001:2015 certified facilities
| Model | HP | SCFM @ 19" Hg | Tank(gal) | dB(A) Level | FLA @ 208V, 3PH | FLA @ 230V, 3PH | FLA @ 460V, 3PH |
|---|---|---|---|---|---|---|---|
| LVVD0203 | 2 | 22 | 80 V | 69 | 13.2 | 12.8 | 7.4 |
| LVVD0303 | 3 | 34 | 80 V | 69 | 18.8 | 17.6 | 9.8 |
| LVD0203 | 2 | 22 | 80 H | 69 | 13.2 | 12.8 | 7.4 |
| LVD0303 | 3 | 34 | 80 H | 69 | 18.8 | 17.6 | 9.8 |
| LVD0404 | 5 | 50 | 120 H | 71 | 29.6 | 28 | 15 |
| LVD0504 | 5 | 76 | 120 H | 77 | 30.6 | 27.8 | 14.9 |

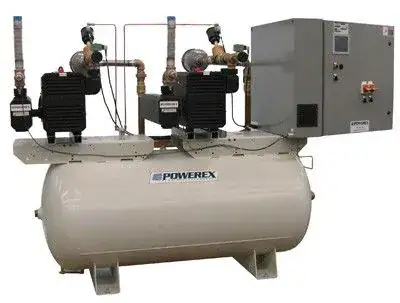

Powerex Laboratory Vacuum
Claw
Our laboratory vacuum systems with our oil-less claw pumps are highly efficient and have low maintenance costs. These laboratory vacuum systems can also be custom designed and have a variety of options available, like auto purge controls and liquid separators.
- Tank Mounted Duplex
- 32 scfm – 130 scfm
- @ 0194 Hg.
- Skid Mounted Systems
- 174 scfm – 516 scfm
- @ 0194 Hg.
Lubricated Rotary Vane
Our laboratory vacuum systems with our oil lubricated rotary vane pumps are proven to be durable and long-lasting. These laboratory vacuum systems can also custom designed and have a variety of options available, like auto purge controls and liquid separators.
- Tank Mounted System
- 22 scfm – 104 scfm
- @ 0194 Hg.
- Skid Mounted Systems
- 154 scfm – 672 scfm
- @ 0194 Hg.
Because Powerex offers so many replacement parts we do not list them here on this site.
Call or email us with your PART NUMBER or for assistance finding it.
