Industrial Electric
M Series 10HP
These compressors feature full-voltage magnetic starters, automatic dual controls, and user-friendly, replaceable combination pleated and foam dry air filters. Their compact design makes them a perfect fit for smaller industrial environments, including automotive garages, small-scale machining operations, and textile production workshops.
Features
- Works with three-phase motors (200/208/230/460 volts) and also supports single-phase power
- Comes with a full-voltage magnetic starter and 115-volt control power
- Includes key gauges to monitor pressure, oil temperature, and run time
- Automatic dual control adjusts operation based on air demand
- Easy-to-change spin-on oil filters and separator elements for quick maintenance
- Available with different setup options: tank mount, raised platform, or sound-reducing enclosure
- Separator Trap: Removes and drains built-up water, oil, and dirt automatically

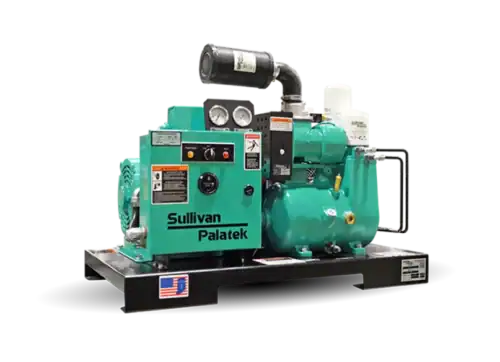

SPM Series 5 & 7.5 HP
Engineered with innovative technology, sleek modern design, and a commitment to high energy efficiency.
Features
- Modular oil flooded rotary screw industrial air compressor
- Continuous Duty
- 230/460 volt 3-phase Total Enclosed Fan Cooled (TEFC) Premium Efficient Motor
- Full Voltage magnetic starter with 115-volt control power
- T1 Microprocessor Controller
- Air Cooled Oil Cooler with Air Cooled Aftercooler
- Factory fill of Palasyn 45 synthetic oil.
- Spin on type oil filter and separator element for ease of maintenance.

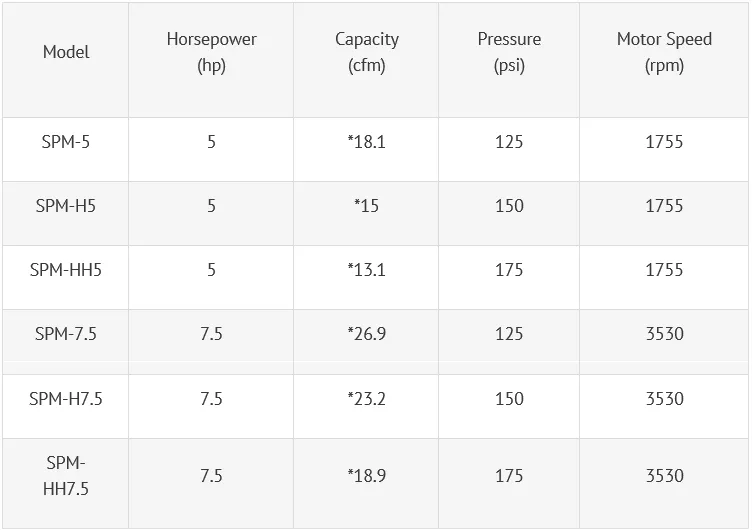

Product Specifications

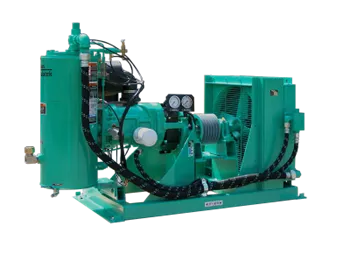

LSC Series
Features
- COMPRESSOR – Continuous duty oil flooded rotary screw industrial air compressor
- PILLOW BLOCK – Solidly mounted and aligned to compressor shaft allowing drive shaft direct connection and minimizing power loss.
- FRAME – Rugged steel construction.
- COUPLING & DRIVE – Compressor is flange mounted to frame for positive alignment and directly driven by minimal maintenance coupling.
- AIR INTAKE FILTER – Heavy duty dry type with replaceable element
- SEPARATOR TANK – ASME coded 200 PSIG sump tank, minimum pressure check valve, relief valve, high-efficiency replaceable oil separator element, fluid level sight indicator, and vented fill cap.
- COOLING SYSTEM – Air cooled with air-cooled oil cooler and after–cooler. Compressor temperature maintained by auto adjusting thermos valve.
- CONTROLS – Full modulation pneumatic control for smooth control. Pilot unloader valve for minimizing power with no air demand.
- INSTRUMENTATION – Air pressure and discharge temperature gauges
- PROTECTIVE DEVICES – High temperature shut down switch for interfacing to driver’s safety circuit. Overpressure relief valve
- LUBRICATION – Factory filled with Palasyn 45. Equipped with microfiber full flow, spin on oil filter.

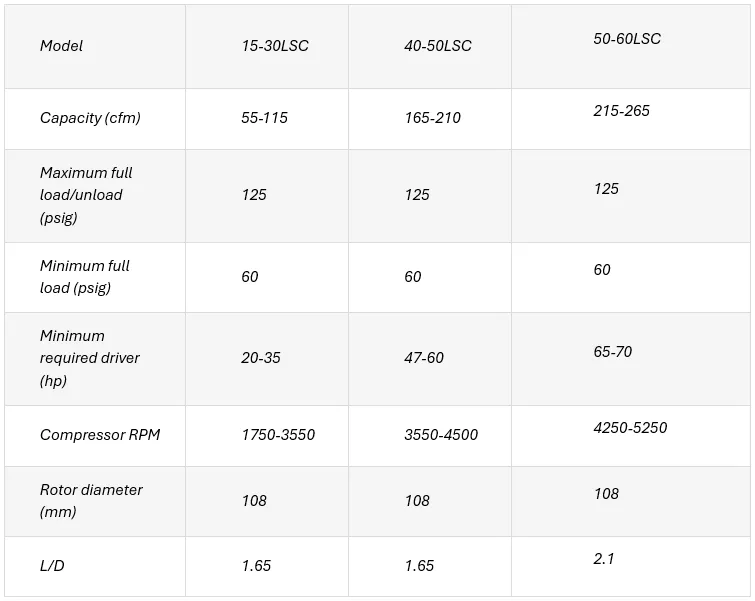

Product Specifications
Legacy Series 15-40 HP
The Sullivan-Palatek Legacy Series industrial air compressors combine proven reliability with modern efficiency for demanding applications. Built and tested for long-term performance, the Legacy Series is engineered to withstand tough industrial environments while delivering consistent, dependable compressed air. Backed by Sullivan-Palatek’s reputation for quality, the Legacy Series integrates trusted design with innovative features to support a wide range of operations, from powering tools to critical production systems. It delivers the durability, efficiency, and performance required in today’s industrial settings.
Features & Benefits
- Rugged, durable construction for long-lasting performance in demanding environments
- Advanced rotary screw technology for efficient, reliable compressed air delivery
- Wide model range to suit diverse industrial and construction applications
- Service-friendly design for easier maintenance, reduced downtime, and higher productivity

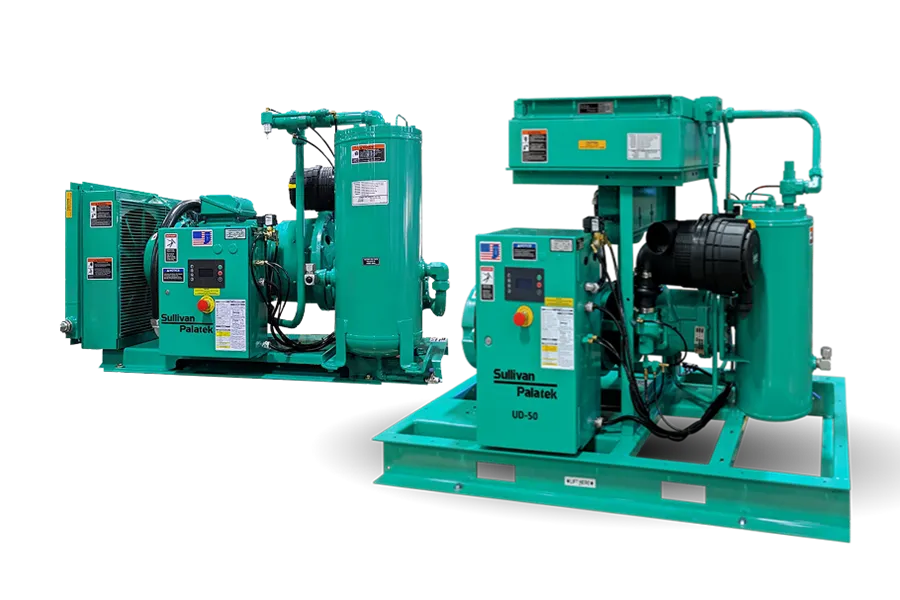

DG Series 25-40HP
Developed to be dependable and efficient, the DG-Series industrial electric direct gear drive air compressor is another versatile Sullivan-Palatek product.
Features
- Microprocessor controller with sequencer, lead-lag, and remote monitoring for up to eight machines
- Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
- Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
- The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosures for indoor and outdoor use.
- The air end, manufactured by Sullivan-Palatek, has advanced rotor design features; oversize radial thrust bearings, and precision working rotary screws that provide no wear.
- Protective devices include class 20 solid-state overload relay, elevated temperature, and overpressure shutdown switches, and anti-restart pressure switch preventing starting while air compressor is pressurized.
- Couplings and drive: the compressor is flange mounted to motor C-face for positive alignment and directly coupled for increased efficiency.
- Cooling system equipped with double pass air-cooled aftercooler with thermostatic control for maintaining the appropriate oil operating temperature to within 15 degrees of ambient.
- Oversized dry type air intake filter with easily replaceable elements
- One-piece lube fill elbow and level sight glass, vented cap for pressure release when removing.
- Inlet/check valve features a one-piece housing for dependable performance and complete modulation.

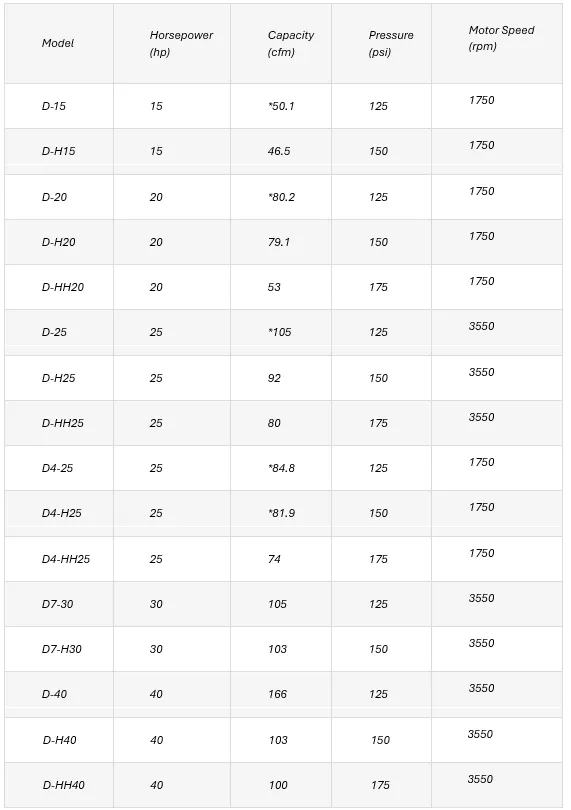

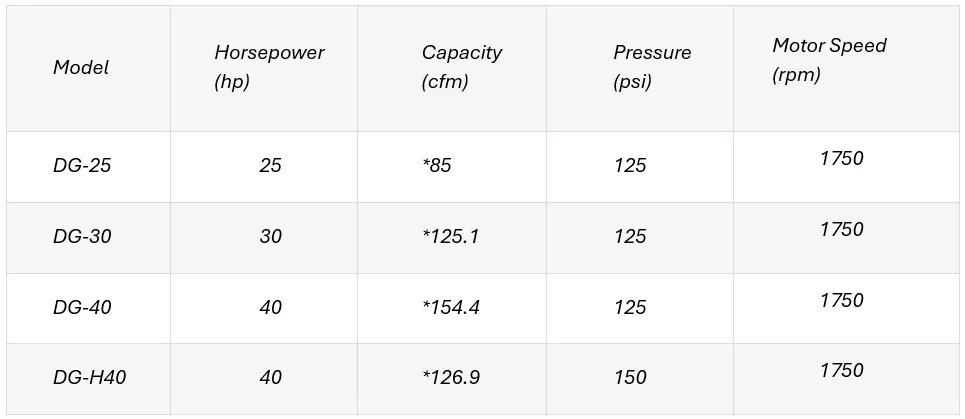

Product Specifications

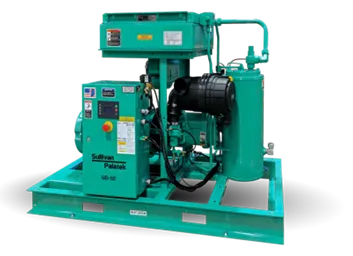

UD Series 40-50HP
These versatile products are available in a range of 40-50 hp. The updraft design of the compressors allows them to recover or exhaust warm air through the top of the machine. Additionally, they have a dedicated fan motor, a side-by-side lube cooler, and an air-cooled aftercooler for easy cleaning.
Features
- The up-draft cooler design vents air away from the package. This is a possible space-saving feature that allows heat recovery that could be used for various purposes: supplement space heating, heating of liquids, drying processes, etc.
- Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
- The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosures for indoor and outdoor use.
- The standard T1 microprocessor controller displays status, warnings, maintenance, and is capable of sequencing multiple compressors (gauges are optional)
- One-piece inlet/check valve housing for dependable performance and complete modulation
- Heavy-duty dry type air intake filter with easily replaceable elements
Product Specifications

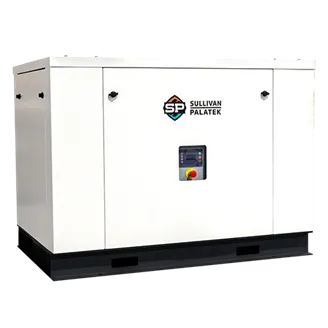

SP11 Series 25-40 HP
The SP11 products offer exceptional noise reduction capabilities and the choice of including a sound enclosure for individuals who prefer a quieter experience.
Features
- The up-draft cooler design vents air away from the package. This is a possible space-saving feature that allows heat recovery that could be used for various purposes: supplement space heating, heating of liquids, drying processes, etc.
- Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
- The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosures for indoor and outdoor use.
- The standard T1 microprocessor controller displays status, warnings, maintenance, and is capable of sequencing multiple compressors (gauges are optional)
- One-piece inlet/check valve housing for dependable performance and complete modulation
- Heavy-duty dry type air intake filter with easily replaceable elements
Product Specifications

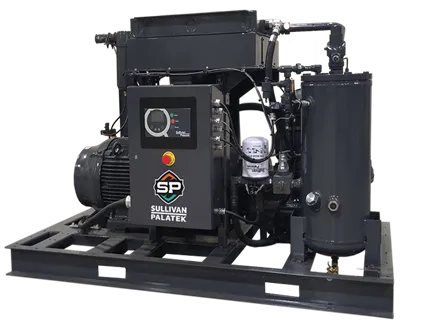

SP13 Series 40-60HP
The SP13 is designed for optimized efficiency, size, and maintenance. Manufactured by Sullivan-Palatek, this industrial electric air compressor ranges from 40-60 hp.
Features
- NEMA Premium Efficient, Severe Duty TEFC motor
- The motor control assembly has a NEMA 4 enclosure for safe use in industrial environments.
- Equipped with an enhanced user display, the Q1 controller is capable of web access and remote monitoring with the sequencing of up to twelve compressors.
- The new SP13-Series airend is designed for efficiency, performance, and minimal maintenance.
- The new high-flow, low-loss inlet valve is designed for increased efficiency and dependable performance.
- The compressor assembly is flange mounted to the motor’s C-face for positive alignment.
- Optimized Air-Oil separators have less restriction and reduce fluid carryover to less than 1 ppm with an 8,000-hour maintenance frequency.
- Filled with PAL-EXTRA 44, a fully synthetic premium lubricant formulated to prevent varnish under higher temperatures and harsh conditions with an 8,000-hour extended drain interval.
- Condensate separator with timed auto-drain collects and automatically drains condensate.
- Optimized electro-pneumatic controls reduce energy consumption in an unloaded state.
- Auto-Dual control
- Cooler clean-outs for ease of cleaning
- Raised face 4-bolt flange at the compressor’s outlet to prevent stresses on plumbing and to aid in the installation.
- Heavy-Duty single pass Air/Oil coolers reduce system losses for improved efficiency and performance up to 104°F.
Product Specifications

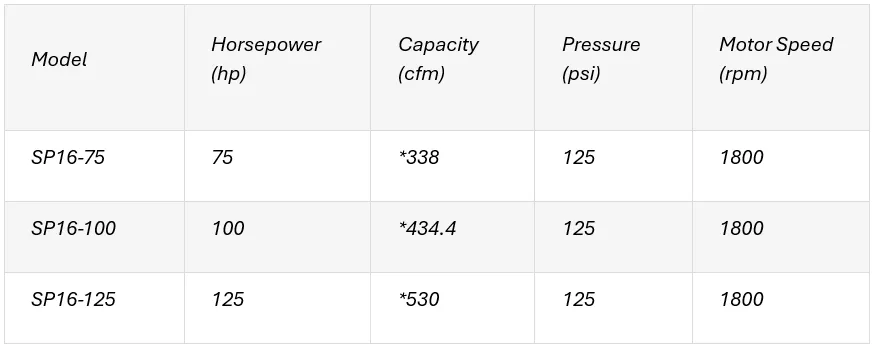

SP16+ Series 75-125HP
The Sullivan-Palatek SP16+ Series industrial electric air compressors deliver reliable, high-performance compressed air for demanding industrial applications. Available in 75, 100, and 125 HP models, the SP16+ produces up to 547 CFM at 100 psig for consistent airflow and maximum productivity. Features include a precision-engineered SP air end, optional Variable Frequency Drive (VFD) for energy efficiency, and the advanced Q1 microprocessor controller with remote monitoring and multi-compressor sequencing. With a compact footprint, quiet enclosed design, and easy maintenance access, the SP16+ is ideal for manufacturing, processing, and heavy-duty industrial operations.
Features & Benefits
- Precision-engineered SP air end for reliable compressed air performance
- TEFC electric motor for indoor and outdoor industrial applications
- Low-RPM design for quiet operation and extended equipment life
- Optional Variable Frequency Drive (VFD) for improved energy efficiency
- Q1 microprocessor controller with remote monitoring capabilities
- Multi-compressor sequencing for up to 12 air compressors
- ASME-coded 200 psi separator tank for safe, dependable operation
- High-efficiency oil and air coolers for maximum heat dissipation
- Oversized air intake filtration to protect compressor components
- Flange-mounted drive system reduces vibration and improves reliability
- Easy-access maintenance points for faster service and reduced downtime
SP20+ Series 125-200 HP
The Sullivan-Palatek SP20 Series industrial electric air compressors are engineered for maximum efficiency and dependable performance in demanding applications. Available in 125–200 HP models, the SP20 features durable Sullivan-Palatek air ends, oversized coolers, and rugged construction for reliable operation in harsh environments. Designed for heavy-duty industrial use, the SP20 is ideal for aerospace, manufacturing, food processing, and other high-demand compressed air applications. Optional gauge panel shown.
SP25 Series 200-350 HP
The Sullivan-Palatek SP25 Series industrial electric air compressors deliver high-powered performance and maximum efficiency for demanding industrial applications. Available in 200–350 HP models, the SP25 features durable Sullivan-Palatek air ends, oversized coolers, and rugged construction for reliable operation in harsh environments. Built for heavy-duty performance, the SP25 helps improve productivity, efficiency, and dependable compressed air delivery across a wide range of industrial and manufacturing operations.

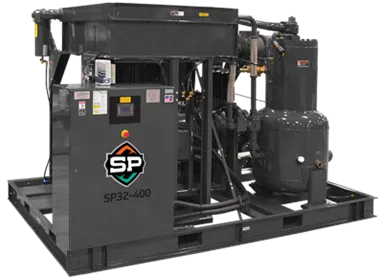

SP32 Series 300-450 HP
The Sullivan-Palatek SP32 Series industrial electric air compressors are engineered for superior power, performance, and long-term reliability in demanding industrial environments. Available in 300–450 HP models, the SP32 features durable Sullivan-Palatek air ends and oversized coolers for efficient operation in heavy-duty applications. Built to deliver dependable compressed air performance, the SP32 is ideal for automotive manufacturing, metal fabrication, heavy equipment production, and other high-demand industrial operations.
Features & Benefits
- TEFC electric motor for reliable industrial use in a wide range of environments
- Low-RPM motor design for quieter operation and extended service life
- Sullivan-Palatek engineered air end for durable, efficient performance
- 460V solid-state starter with 115V control circuit for dependable operation
- Q1 microprocessor controller with web-based monitoring capabilities
- Multi-compressor sequencing for up to 12 units
- Oversized dry-type air intake filter with easy-to-replace elements
- Flange-mounted motor and air end for precise alignment and reduced vibration
VFD Series
The Sullivan-Palatek Variable Frequency Drive (VFD) Series industrial electric air compressors are engineered for energy efficiency and reduced operating costs. By delivering only the required amount of compressed air for each shift, the VFD Series helps eliminate excess energy consumption and improve overall system efficiency. Part of Sullivan-Palatek’s advanced industrial air solutions, these compressors provide precise, demand-based air delivery for a wide range of applications.
Portable Electric
ECC Series
Electric construction compressors are compact, portable, and designed for easy transport between job sites. Sullivan-Palatek ECC units improve efficiency and sustainability on construction projects by delivering reliable compressed air for powering tools and equipment such as nailers, staplers, and paint systems. Compared to gas-powered models, electric compressors offer key advantages including increased productivity, lower noise levels, and reduced environmental impact with zero direct emissions and no reliance on fossil fuels.
Features & Benefits
- Energy-efficient 460/3/60 C-Face electric motor for reliable industrial performance
- Automatic start/stop or constant speed control options for flexible operation
- Built-in aftercoolers for improved air quality and system efficiency
- Cam-Loc cable connectors for fast, secure electrical connections
- Removable acoustical enclosure panels for easy maintenance access
- Heavy-duty two-stage air intake filtration for enhanced protection and durability
- Integrated lifting options (central bail or four-point lift depending on model) for easier transport
- Lube filtration system for improved compressor reliability and performance
- Built-in motor starter for dependable operation
- Skid-mounted design for stability and easy installation
- Multiple gauge and instrumentation options for clear system monitoring
Portable Compressors

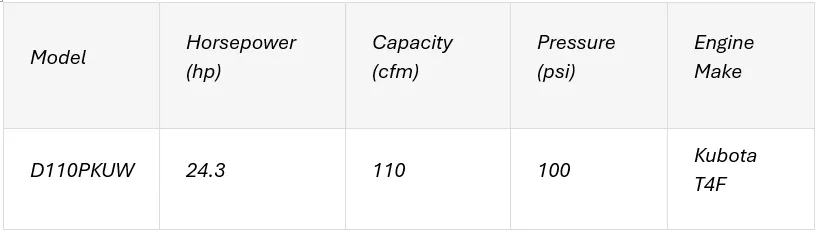

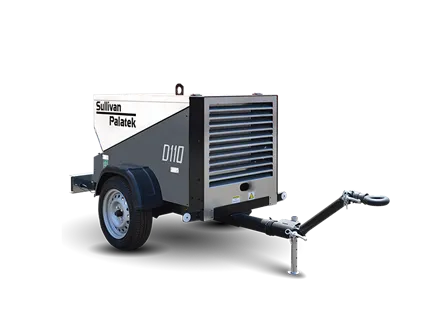

D110PKUW
The D110PKU portable air compressor is a lightweight, compact, and fuel-efficient solution for contractors and rental fleets needing reliable compressed air on the jobsite. Powered by a Kubota Tier 4 Final engine, it delivers 110 CFM at 100 PSI, ideal for paving breakers, pneumatic tools, and sprinkler blowouts. It features a keyed ignition with On/Off, Glow Plug, and Start functions for easy operation, along with a hinged canopy for fast maintenance access. Its compact footprint reduces transport and shipping costs, while offering lower operating costs than larger 185 CFM units, making it a cost-effective portable air compressor for construction and rental applications.
Features & Benefits
- Hinged canopy with gas springs for quick, easy service access
- Torsion bar suspension for stable towing with smaller vehicles
- Fully adjustable height draw bar for flexible towing setup
- Large fuel tank for extended run time and fewer refueling stops
- Center-mounted lifting eye for safe and balanced machine handling
- Service valve located on control end for convenient access
- Automatic shutdown protection for improved safety and reliability
- Stop, turn, and tail lights for safer road transport
- Automatic 0–100% compressor control for efficient air delivery
- Automatic blowdown valve for safe system depressurization
- Designed to power 90 lb breakers with consistent performance
- Lockable dual slide-latch canopy for added security
- Remote fluid drains for simplified maintenance and reduced downtime
D185PKR
The D185PKR portable air compressor is a 185 CFM at 100 PSI unit powered by a 48.8 hp Tier 4 Final Kohler engine and designed for durability, efficiency, and easy service access. It features a Sullivan-Palatek 108 mm rotary screw air end, delivering reliable compressed air performance for demanding jobsite applications. The Titan Top composite clamshell canopy provides lightweight, full access to routine maintenance components, while side-by-side engine and compressor coolers enhance thermal efficiency. A foldable drawbar reduces overall footprint for easier transport and storage, and a 30-gallon composite fuel tank supports up to a full shift of runtime with visible fuel level monitoring. Additional features include a curbside controller and integrated storage toolbox for improved jobsite convenience.
Features & Benefits
- Lightweight composite clamshell canopy for durability and easy service access
- Compact footprint with foldable drawbar for simplified transport, shipping, and storage
- Wide wheelbase design for improved stability on the jobsite and highway
- Sullivan-Palatek rotary screw air end with 3-year warranty for reliable performance
- 30-gallon composite fuel tank with fuel level visibility for extended runtime
- Sullivan-Palatek Electronic Controller (SPEC) for advanced system monitoring and control
- LED tail lighting for improved safety and visibility during transport
D185PDKR
The D185PDKR portable air compressor with Dual Pressure delivers flexible performance with 185 CFM at 100 PSI and 150 CFM at 150 PSI. Powered by a 48.8 hp Tier 4 Final Kohler engine and a Sullivan-Palatek 108 mm rotary screw air end, it provides reliable compressed air for demanding jobsite applications. The lightweight Titan Top composite clamshell canopy offers easy access to service components, while a foldable drawbar reduces footprint for transport and storage. Side-by-side coolers improve efficiency, and a 30-gallon composite fuel tank supports up to a full shift of runtime. Additional features include a curbside controller and integrated toolbox for enhanced jobsite convenience and control.
Features & Benefits
- Lightweight composite clamshell canopy for durable construction and easy service access
- Compact footprint with foldable drawbar for simplified shipping, storage, and transport
- Wide wheelbase design for improved stability on job sites and highways
- Sullivan-Palatek rotary screw air end with 3-year warranty for dependable performance
- 30-gallon composite fuel tank with fuel level visibility for extended runtime
- Sullivan-Palatek Electronic Controller (SPEC) for advanced monitoring and control
- LED tail lighting for improved safety and visibility during transport

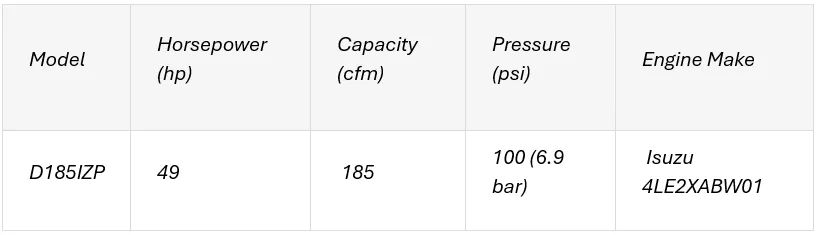

D185PIZP
The D185PIZP portable air compressor is powered by a 49 HP Tier 4 Final ISUZU engine and delivers reliable 185 CFM performance for demanding jobsite applications. Designed with a Sullivan-Palatek rotary screw air end, it ensures efficient and consistent compressed air output. The lightweight Titan Top composite clamshell canopy provides easy access to service components, while a foldable drawbar reduces overall footprint for transport and storage. Side-by-side engine and compressor coolers improve operating efficiency, and a 30-gallon composite fuel tank supports up to a full 10-hour shift with visible fuel level monitoring. Additional features include a curbside controller and integrated toolbox for improved convenience and jobsite productivity.
D185PIZ4
Built for contractors and demanding jobsite use, this 185 CFM Tier 4 Final portable air compressor delivers reliable performance at 100 PSI for powering pneumatic tools, sandblasting, and other heavy-duty applications. Powered by a 49 HP diesel engine, it features a two-stage air filtration system and a 30-gallon fuel tank for full-shift operation. Designed for durability and protection, it includes Galvanneal and powder-coated sheet metal, galvanized inner fenders, two full-length toolboxes, and large lockable service doors for secure, convenient access.

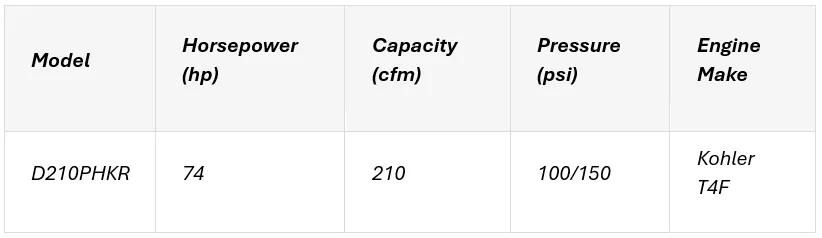

D210PHKR
The D210PHKR portable air compressor delivers 210 CFM with dual pressure operation at 100 or 150 PSI for maximum jobsite versatility. Equipped with the Sullivan-Palatek Electronic Controller (SPEC), it provides digital readouts for compressor performance, temperature monitoring, and full engine diagnostics. Designed for construction, sandblasting, irrigation blowouts, and rental applications, the D210PHKR offers reliable, efficient compressed air power for a wide range of demanding jobs.

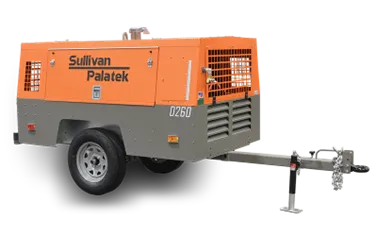

D260PDKR
The D260PDKR portable air compressor is a dual pressure, dual capacity unit delivering 260 CFM at 100 PSI or 185 CFM at 150 PSI for maximum jobsite flexibility. Powered by a Tier 4 Final Kohler engine (no DEF required) and a 127 mm Sullivan-Palatek twin-screw air end, it provides reliable performance for demanding applications. The unit features the Sullivan-Palatek Electronic Controller (SPEC) with full digital monitoring and engine diagnostics, along with a cooler access panel for easy maintenance. Built for durability, it includes a galvanneal powder-coated enclosure for corrosion resistance, a 30-gallon steel fuel tank, and large lockable side service doors with integrated toolboxes for added convenience.
Features & Benefits
- 74 HP Kohler Tier 4 Final diesel engine for reliable, efficient performance
- Sullivan-Palatek rotary screw air end with 3-year warranty for dependable operation
- Dual pressure high/low selector valve for flexible jobsite use
- 30-gallon steel fuel tank for extended runtime and productivity
- Galvanneal sheet metal enclosure with powder-coated finish for corrosion and rust resistance
- Large dual-side toolboxes with lockable handles for secure storage and easy access
D300PD2KR
The D300PD2KR portable air compressor is a dual pressure, dual capacity unit delivering 300 CFM at 100 PSI or 230 CFM at 150 PSI for maximum jobsite versatility. Powered by a Tier 4 Final Kohler engine (no DEF required) and a 130 mm Sullivan-Palatek twin-screw air end, it delivers reliable performance for demanding applications. The Sullivan-Palatek Electronic Controller (SPEC) provides advanced digital monitoring and full engine diagnostics, while a cooler access panel simplifies maintenance. Built for durability, it features a galvanneal powder-coated enclosure for corrosion resistance, a 30-gallon steel fuel tank, and large lockable service doors with integrated toolboxes for added convenience and security.
D375PHKR
The D375PHKR portable air compressor delivers 375 CFM at 150 PSI for high-demand jobsite performance and versatility. Powered by a 134 HP Kohler Tier 4 Final engine and a 130 mm Sullivan-Palatek twin-screw air end, it provides reliable, efficient compressed air for heavy-duty applications. Built for durability, it features a galvanneal enclosure with a powder-coated finish for corrosion resistance, a full containment frame, remote drains, and lockout aftercooler capability. A large 60-gallon fuel tank supports extended runtime, making it a dependable solution for construction and industrial use.

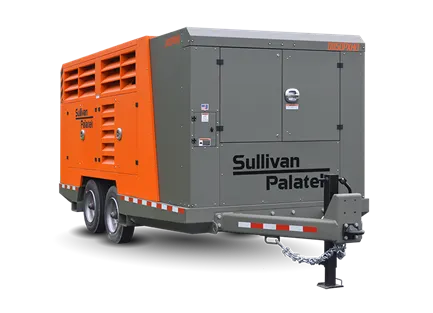

D1150PXHD1CU4
Features & Benefits
- Cummins diesel engine for reliable, high-performance operation
- Sullivan-Palatek rotary screw air end with 2-year warranty for dependable compressed air delivery
- Large service doors for easy maintenance access and reduced downtime
- Low-noise design limited to 76 dBA for quieter jobsite operation
- 224-gallon steel fuel tank for extended runtime and productivity
- Dual-axle running gear with electric brakes for safe, stable transport
- Galvanneal enclosure with powder-coated finish for superior rust and corrosion resistance
D1600PHICU4
The 1600 Series portable air compressor delivers 1600 CFM at 150 PSI for high-capacity, heavy-duty industrial performance. Designed for demanding applications such as drilling, sandblasting, plant and refinery backup air, and rental use, it provides reliable compressed air power in the toughest environments. Equipped with the 7” SPEC full-service electronic controller, the system offers real-time digital monitoring, including compressor temperature, system diagnostics, and aftercooler filter alerts, along with integrated parts and service information for simplified maintenance. Dual pressure configuration is also available for added operational flexibility.
Features & Benefits
- Cummins diesel engine for reliable, high-performance operation
- Sullivan-Palatek rotary screw air end with 3-year warranty for dependable air delivery
- Large service doors for easy maintenance access and reduced downtime
- Low-noise design limited to 76 dBA for quieter operation on job sites
- 224-gallon steel fuel tank for extended runtime and fewer refueling stops
- Dual-axle running gear with electric brakes for safe, stable transport
- Galvanneal enclosure with powder-coated finish for enhanced rust and corrosion resistance
- Solar battery charger for improved battery maintenance and increased reliability
