There are different types of pipe used for air. The recommended use for air is Aluminum Pipe:

Latest technology (are push to connect aluminum pipe) it is light-weight, making it easy to handle compared to schedule 40 or 80 pipe. It is recommended for clean air applications and is non-corrosive.

Other Types of Air Piping

Stainless Steel – to minimize corrosion has a long and successful history – combines all strength and durability og black pipe. Victaulic fittings are installed with a rubber seal and bolted clamp.

Copper Pipe is commonly recommended for clean air, it works well, and it is expensive.

Black Pipe is the most commonly used pipe – it is strong and durable; but it will produce rust contamination.

Galvanized Pipe: commonly used for water distribution and for general plumbing; galvanized coating resists moisture in compressed air, but pieces of the coating will flake off (not recommended for compressed air).

PVC Pipe – not recommended for compressed air; though readily available and inexpensive. PVC gets brittle over time and can crack, break, or even shatter.

Black Pipe

Black Pipe

Ball Valves Gate Check & Globes

Galvanized Pipe

Galvanized Pipe

Mall – C.I. THRD & FLG

PVC Pipe

PVC Pipe

CPVC S-80 Fittings

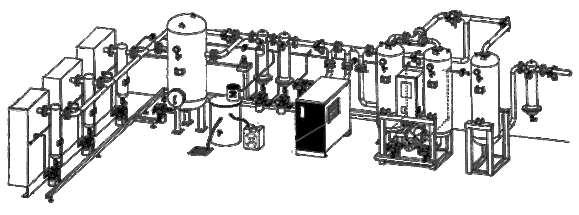

Aluminum Piping — Warren, MI — Central Air Compressor

Aluminum Piping by Aircom

EASY

Easy to install thanks to the innovative Quick Line technology, the insertion of the pipes and the use of components in direct connection will allow you to create your plant in a few simple steps.

RELIABLE

The durability of our products combined with their corrosion-free treatments guarantees a unique and comprehensive system. The study of shapes and materials also ensures acceptable pressure drop and no air leaks, thus resulting in an energy saving.

alt=

Pipe

CODEø(4 m - 13 ft)inch
QLTUAL4016161/2"

Pipe – BLUE

CODEø(6m - 20 ft)inch
QLTUAL6020203/4"
QLTUAL6025251"
QLTUAL6032321.1/4"
QLTUAL6040401.1/2"
QLTUAL6050502"
QLTUAL6063632.1/2"
QLTUAL6080803"
Coupling — Warren, MI — Central Air Compressor

Coupling

CODEøinch
QLMAAL020203/4"
QLMAAL025251"
QLMAAL032321.1/4"
QLMAAL040401.1/2"
QLMAAL050502"
QLMAAL063632.1/2"
QLMAAL080803"
QLMAAL1101104"
Elbow — Warren, MI — Central Air Compressor

90° Elbow

CODEøinch
QLG090AL020203/4"
QLG090AL025251"
QLG090AL032321.1/4"
QLG090AL040401.1/2"
QLG090AL050502"
QLG090AL063632.1/2"
QLG090AL080803"
QLG090AL1101104"
Tee — Warren, MI — Central Air Compressor

Tee

CODEøinch
QLTEAL020203/4"
QLTEAL025251"
QLTEAL032321.1/4"
QLTEAL040401.1/2"
QLTEAL050502"
QLTEAL063632.1/2"
QLTEAL080803"
QLTEAL1101104"
FPT SST QL Ball Valve — Warren, MI — Central Air Compressor

FPT SST QL ball valve

CODEøinch
QLVAINOXF02508825x1"1"x1"
QLVAINOXF03212832x1.1/2"1.1/4"x1.1/2"
QLVAINOXF04012840x1.1/2"1.1/2"x1.1/2"
QLVAINOXF05016850x2"2"x2"
QLVAINOXF06316863x2"2.1/2"x2"
QLVAINOXF08024880x3"3"x3"

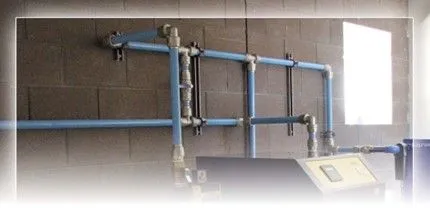

Infinity Piping

Infinity Piping — Warren, MI — Central Air Compressor

FLOW RATES THROUGH INFINITY PIPING

Pipe Internal DiameterCFMCFMCFM
mm (in.)@ 125psi@ 150psi@ 175psi
20mm (0.75")363942
25mm (1")768188
32mm (1.25")146158171
40mm (1.5")266291310
50mm (2")476526565
63mm (2.5")8819651047

Flow rates are based on a 1psi pressure drop per 100ft run of pipe and couplings in a “straight line.” For loop systems, flow rates can be doubled.

Example:
100ft run of 2″ pipe flows 476cfm at 125psig with a pressure drop of 1psig. If a system is designed in a loop configuration, a flow of 952cfm with a pressure loss of 1psig per 200ft of piping and couplings can be achieved.The 1psi pressure loss will only occur if the compressor system is flowing the maximum flow capacity of the piping selected.

Flows are measured at standard atmospheric conditions: 1013mbar (14.7psi) at 20°C – (68°F).

It is vital that the size of the piping between the compressors and the connection of the loop system can flow the full capacity of the combined compressor output.

Testing
Infinity tube fittings are tested in accordance with the requirements of ANSI B31.1 (American National Standards Institute) Power Piping Systems. All Infinity products have been tested and exceed the requirements of ANSI B31.1.

Infinity product provides a 5X safety factor above recommended safe working pressure/temperatures.
