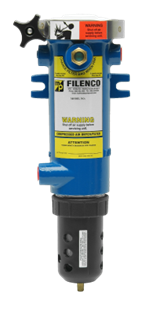

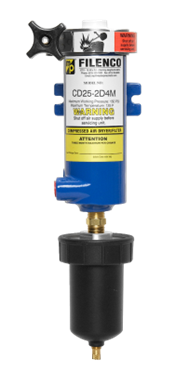

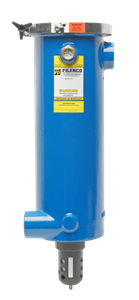

Filenco Dryers & Filters

Many compressed air systems require point-of-use cleaning and drying of the air to supplement a central system. Dryer/filters do this extremely well because of their triple-action cleaning process and their ability to substantially reduce pressure dew points.

Available desiccants for these units include clay, clay with activated carbon, and molecular sieve for as much as 80° dew point suppression. Automatic drains are strongly recommended, although there are a variety options offered — from manual drains to the Warrior electronic drain.

Specifications:

• Size: 1/4" - 1 1/2"
• Ambient/Media Temperature: 40° to 125°F (4° to 52°C).
• Drain: Automatic drain; optional manual or electronic drains.
• Dessicant: Choice of three.
• Fluid Media: Compressed air.
• Inlet Pressure: 150 psig (10 bar) maximum. Consult Master Pneumatic for higher pressure ratings.
• Flow Rate: 7scfm to 300scfm
• 30 scfm (14.3 l/s) for 38-4.
• Mounting: Flanges and front ports for flush

DryPower features a modular design whereby multiple heat exchangers ensure optimum performance throughout its broad capacity range. The highly efficient DRYMODULE exchangers allow lowest dew point levels in all conditions with minimum energy consumptions. This non-cycling refrigerated air dryer's extreme compact packaged design simplifies positioning and maintenance. The sophisticated microprocessor technology and scroll compressors offer the user the most advanced technical solutions.

• Easily removable panels for quick access.
• Extremely compact dimensions (pre-cooler re-heater, evaporator and demister housingin single aluminium module.
• Refrigeration & control circuits in front of unit (separate compartment).
• Multiple heat exchangers in unit rear.
• Oversized demister separator: removes condensate at all air flows.

Digital display of:

• Dew point (permanent)
• Air inlet temperature (permanent)
• Air outlet temperature
• Multi level menus with multiple password protection allowing extensive programming
• Condensate drain programming
• Volt free general alarm contact

• R134A refrigerant offers high overload capacities.
• Easy to use and maintain.
• Operation in high ambient of 115°F, 110°F for DE1600/2000.
• Lowest dew point provided by thermal storage acts as a buffer covering sudden load variations.
• Stainless steel demister removes condensed moisture at all air flows.
• Environmentally safe - no risk of cross contamination between refrigerant and compressed

Many compressed air systems need extra cleaning and drying right at the point of use. MP-FILENCO dryer/filter units are highly effective thanks to their triple-action filtration and their ability to lower the pressure dew point, ensuring cleaner, drier air where it’s needed most.

Some compressed air systems need extra cleaning and drying right at the point of use to support the main system. MP-FILENCO dryer/filter units work exceptionally well with their triple-action cleaning and ability to lower the pressure dew point, providing clean, dry air exactly where it’s needed.

Many compressed air systems need extra cleaning and drying at the point of use to support the main system. MP-FILENCO dryer/filter units deliver excellent performance with their triple-action cleaning and ability to lower the pressure dew point, ensuring clean, dry air where it’s needed most.

Some compressed air systems need extra cleaning and drying right where the air is used, to support the main system. MP-FILENCO dryer/filter units offer outstanding performance with their triple-action cleaning and ability to lower the pressure dew point, providing clean, dry air exactly when and where it’s needed.
