MODEL |
DRIVE |
50 Hz |
60 Hz |
NOISE LEVEL2 |
WEIGHT3 |
DIMENSIONS |
||||||||
|
NOMINAL |
FAD |
NOMINAL |
FAD |
|||||||||||
|
HP |
kW |
PSIG |
BAR |
ACFM |
M³/MIN |
PSIG |
BAR |
ACFM |
M³/MIN |
DB(A) |
LBS |
KG |
IN. (MM) |
|
|
ETS-200 |
200 |
150 |
100 |
6.9 |
1092 |
30.94 |
100 |
6.9 |
1159 |
32.81 |
80/93 |
10924 |
4955 |
129 × 92 × 76 |
|
ETS-250 |
250 |
185 |
100 |
6.9 |
1375 |
38.93 |
100 |
6.9 |
1404 |
39.75 |
80/93 |
11522 |
5226 |
|
|
ETS-300 |
300 |
225 |
100 |
6.9 |
1639 |
46.42 |
100 |
6.9 |
1632 |
46.21 |
80/93 |
12040 |
5461 |
|
Oil Lubricated Rotary Screw Air Compressors
Electra Saver 350-500 HP Rotary Screw Air Compressors
Gardner Denver rotary screw compressors are engineered to provide dependable compressed air performance while reducing energy costs and maximizing uptime. Designed for demanding industrial applications, these systems deliver consistent air pressure, efficient operation, and long-term reliability. Advanced airend technology and intelligent capacity control help optimize performance, making Gardner Denver compressors a trusted solution for manufacturers seeking productivity, efficiency, and lower total cost of ownership.
Features & Benefits
- 350–500 HP Performance – Delivers reliable compressed air for demanding industrial applications.
- Direct-Gear Drive System – Maximizes power transfer efficiency while reducing maintenance requirements.
- Air or Water-Cooled Configurations – Flexible installation options to meet facility requirements.
- Service-Friendly Design – Easy access to filters, separators, and maintenance components minimizes downtime.
- Heavy-Duty, Slow-Speed Airend – Oversized components enhance reliability, efficiency, and long service life.
- AirSmart™ Intelligent Controller – Simplifies monitoring, maintenance scheduling, diagnostics, and system management.
- Built for Maximum Uptime – Durable construction, NEMA 4 controls, and proven engineering deliver dependable operation in demanding environments.
Electra Saver G2 Series 75-300 HP Rotary Screw Air Compressors
Backed by more than 160 years of engineering excellence, Gardner Denver compressors are built to deliver reliable, high-performance compressed air for the most demanding industrial environments. The Electra Saver series continues this legacy with its proven low-speed, 1800 RPM design, offering exceptional durability, energy efficiency, and long-term dependability for facilities that demand maximum uptime.
Features & Benefits
- 75–300 HP Configurations – Available in enclosed and unenclosed packages to suit a wide range of industrial applications.
- Patented Turn Valve® Technology – Optimizes energy efficiency by matching compressed air output to demand.
- Direct-Gear Drive Design – Delivers reliable power transmission with reduced maintenance requirements.
- Service-Friendly Construction – Accessible filters, simplified separator maintenance, and quick component access help minimize downtime.
- Oversized, Slow-Speed Airend – Up to 40% larger than competitive designs for enhanced efficiency, durability, and long-term reliability.
- Air or Water-Cooled Options – Flexible cooling configurations to meet facility and operating requirements.
- Advanced Governor™ Controller – Full-color touchscreen with digital gauges, machine diagnostics, and real-time performance monitoring for improved system visibility.
Electra Saver II G2 Series 40-300 HP Rotary Screw Air Compressors
The Electra Saver II G2 is engineered for exceptional reliability, efficiency, and long-term performance. Built around a proven low-speed, 1800 RPM design, it features an oversized airend and heavy-duty bearings that reduce component stress and extend equipment life. By maximizing efficiency while minimizing wear, the Electra Saver II G2 delivers dependable compressed air and lower operating costs for demanding industrial applications.
Features & Benefits
- 40–300 HP Performance Range – Available in enclosed and unenclosed base-mounted configurations for maximum application flexibility.
- Proven 1800 RPM Design – Low-speed operation reduces wear, improves reliability, and extends equipment life.
- Oversized Airend Technology – Larger airends deliver greater efficiency and dependable compressed air performance.
- Service-Friendly Maintenance Access – Spin-on oil filters, tip-out coolers, and accessible components help reduce downtime and simplify service.
- Air or Water-Cooled Options – Flexible cooling solutions to meet the demands of diverse operating environments.
- Governor™ Touchscreen Controller – Full-color display with intuitive navigation, digital gauges, and advanced system diagnostics.
- Real-Time Performance Monitoring – Historical trending, machine status updates, and operating data provide greater visibility and control.
Electra TS Series 200-300 HP Rotary Screw Air Compressors
Backed by more than 150 years of compressed air innovation, the Gardner Denver Electra TS delivers the performance, reliability, and serviceability that define the Electra family. Designed with premium-efficiency motors and a high-performance two-stage airend, the Electra TS provides exceptional energy efficiency in a compact footprint. Its semi-integrated over/under airend design and streamlined maintenance features simplify service while maximizing uptime. With shared components across the Electra product line, the Electra TS offers a cost-effective, dependable solution for demanding industrial applications.
Features & Benefits
- 200–300 HP Two-Stage Performance – High-efficiency two-stage compression delivers maximum airflow and reduced energy consumption.
- Proven 1800 RPM Airend Design – Slow-speed operation enhances reliability, improves efficiency, and extends equipment life.
- Advanced GD10DS Airend Technology – Innovative four-gear design reduces bearing loads, increases rigidity, and supports long-term performance.
- Service-Friendly Package Design – Large access doors, integrated cartridge oil filters, and tip-out coolers simplify maintenance and reduce downtime.
- Integrated Interstage Cooling – Improves airend efficiency, reliability, and overall compressor performance.
- Flexible Installation Options – Available in enclosed or unenclosed configurations with air- or water-cooled designs to fit diverse applications.
- 10″ Governor™ Touchscreen Controller – Full-color display with digital gauges, advanced diagnostics, and real-time performance monitoring for complete system visibility.
Electra TSV Series 150-225 kW Rotary Screw Air Compressors
With more than 150 years of engineering heritage, Gardner Denver continues to deliver reliable compressed air solutions built for demanding industrial applications. The Electra TSV combines high-efficiency motors and a proven two-stage airend in a compact, service-focused design that delivers strong performance with reduced operating costs. Its semi-integrated over/under configuration and integrated filtration system simplify maintenance while supporting long-term reliability. Sharing common components across the Electra family, the Electra TSV strengthens a complete product portfolio designed to meet a wide range of industrial needs with efficiency, durability, and consistency.
L-Series 5-400 HP Rotary Screw Air Compressors
The Gardner Denver L-Series rotary screw air compressor is engineered to provide dependable compressed air performance, exceptional efficiency, and simplified maintenance. Designed for demanding industrial applications, the L-Series combines proven rotary screw technology with a service-friendly design to maximize uptime and reduce operating costs. With reliable fixed-speed operation and high-efficiency performance, the L-Series delivers the durability and productivity businesses need to keep operations running smoothly.
Features & Benefits
- Wide Power Range (5–400 HP / 4–290 kW) – Available in multiple configurations to meet the compressed air demands of small workshops, manufacturing facilities, and large industrial operations.
- Belt-Driven and Direct-Gear Driven Options – Engineered for dependable performance, with belt-driven models from 5–30 HP and highly efficient direct-drive models from 30–400 HP.
- Compact, Space-Saving Design – One of the industry’s smallest footprints helps reduce installation costs while providing greater flexibility in compressor placement.
- Quiet Enclosed Operation – Standard sound-attenuating enclosure and low-noise cooling system deliver whisper-quiet performance, often eliminating the need for a dedicated compressor room.
- Flexible Package Configurations – Available in base-mount, tank-mounted, and AirStation packages with integrated dryer options for a complete compressed air solution.
- Advanced Governor Touchscreen Controller – Provides real-time system monitoring, performance diagnostics, maintenance alerts, and intuitive touchscreen operation.
- Built for Long-Term Reliability – Features low-speed operation, integrated filtration, premium TEFC motors, fewer connection points, and a robust drive system designed to maximize uptime and reduce maintenance requirements.
LRS-Series 10-400 HP Rotary Screw Air Compressors
The Gardner Denver LRS-Series Variable Speed Rotary Screw Air Compressors combine reliable performance with industry-leading energy efficiency. Featuring advanced variable speed drive technology, the LRS-Series automatically matches air output to demand, reducing energy costs while maintaining consistent system pressure. Its fully enclosed design ensures quiet operation, and intelligent controls provide easy monitoring and optimization, making it an ideal solution for businesses seeking lower operating costs, improved efficiency, and dependable compressed air performance.
Features & Benefits
- Available from 10–400 HP (7–290 kW) to support a wide range of industrial compressed air applications.
- Advanced Variable Speed Drive (VSD) Technology automatically adjusts output to match air demand, maximizing energy savings and efficiency.
- Belt-Driven and Direct-Gear Driven Models provide reliable performance across the entire product range.
- Quiet Enclosed Design reduces noise levels and creates a more comfortable work environment.
- Flexible Package Options including base-mounted, tank-mounted, and AirStation configurations with integrated dryer packages.
- Smart Governor Touchscreen Controller delivers real-time monitoring, diagnostics, and performance optimization.
- Robust Inverter Drive System maintains stable air pressure, improves efficiency at varying demand levels, and helps lower total operating costs.
Oil-Free Air Compressors
EnviroAire ES Series Oil-Free Scroll Compressor 3-29kW (5-40hp)
Experience the quiet, energy-efficient performance of the EnviroAire ES Series oil-free scroll compressors, engineered for clean air applications where reliability and air purity are critical. These fixed-speed, single-stage, oil-free units feature precision scroll technology and sound-dampening enclosures for exceptionally low noise operation, making them ideal for both industrial and laboratory environments. Fully CSA-compliant and available in multiple flow capacities, the ES Series offers dependable performance with flexible pressure options of 116 or 140 PSI, delivering consistent, contaminant-free air you can trust.
Features & Benefits
- 5-Micron Industrial Grade Intake Filtration – Helps protect system components while improving overall air quality for clean air applications.
- ASME-Coded Air Receiver & Safety Components – Ensures reliable, code-compliant air storage for safe industrial operation.
- High-Efficiency TEFC Motor with Advanced Cooling System – Designed for dependable performance with integral air-end and high-flow cooling fans.
- Integrated Moisture Control System – Includes air-cooled aftercooler, moisture separator, and automatic drain for improved air quality and reduced downstream contamination.
- Optional Deluxe HMI Controller – Provides enhanced monitoring, system control, and operational visibility when upgraded.
- 100% Oil-Free Scroll Technology – Delivers ISO 8573-1 Class 0 compliant, contaminant-free air for critical clean air environments.
- Low Maintenance, High Efficiency Design – Features fewer moving parts, low vibration, quiet operation, compact footprint, and 100% duty cycle reliability for reduced operating costs and maximum uptime.
EnviroAire S Series Oil-Free Scroll Compressor 2.2-7.5 kW (3-10 hp)
The EnviroAire S Series oil-free scroll compressors are fixed-speed, single-stage, 100% oil-free systems available from 3–10 HP (per pump), designed for demanding industrial, laboratory, and medical applications. Engineered for clean, reliable performance, these scroll packages meet current CSA standards and are NFPA 99 code compliant, ensuring safe operation in regulated environments. Offered in multiple configurations and flow designs, the EnviroAire S Series delivers dependable, contaminant-free air with the flexibility to meet a wide range of application needs.
Features & Benefits
- 3–40 HP Oil-Free Scroll Packages (3–10 HP per pump) – Flexible sizing with simplex, duplex, triplex, and quadraplex configurations to meet a wide range of air demand requirements.
- 100% Oil-Less, 100% Duty Cycle Operation – Designed for continuous use in demanding industrial, laboratory, and medical environments.
- Advanced Air Treatment Components – Includes 5-micron intake filtration, ASME-coded receiver, air-cooled aftercooler, moisture separator, and automatic drain for clean, reliable air delivery.
- High-Efficiency Motor & Cooling System – Premium TEFC motor with integral air-end cooling fan ensures dependable performance and long service life.
- Flexible Installation & Operating Options – Available in 50/60 Hz with 116 or 140 PSI pressure ratings and multiple base-mount or tank-mount configurations.
- Oil-Free Scroll Compression Technology – ISO 8573-1 Class 0 compliant design delivers contaminant-free air with fewer moving parts, low vibration, and high energy efficiency.
- Engineered for Clean, Quiet, Reliable Operation – Compact, serviceable design with continuous suction and discharge compression ideal for sensitive applications requiring low noise and maximum air purity.
EnviroAire T & TVS Series Oil-Free Screw Compressor 37-74kW (50-100hp)
The EnviroAire T & TVS Series oil-free rotary screw air compressors are designed for applications where air purity is critical and contamination is not an option. Delivering 100% oil-free compressed air, these systems help protect products, equipment, and processes from the risks associated with oil carryover. Ideal for industries with strict air quality requirements, the EnviroAire T & TVS Series combines reliable performance, energy-efficient operation, and proven oil-free technology to help reduce downtime, safeguard product quality, and protect your brand's reputation.
EnviroAire VS Series Oil-Free Screw Air Compressor 15-22kW
The EnviroAire VS Series oil-free rotary screw air compressors are engineered for applications where absolute air purity is essential, delivering a clean and reliable compressed air supply that supports both operational performance and profitability. Certified to ISO 8573-1 Class 0 (2010) standards and silicone-free, these compressors eliminate the risk of oil contamination, protecting product integrity and process quality. Designed for maximum uptime and efficiency, the EnviroAire VS Series helps reduce downtime, increase productivity, and provide dependable performance in the most demanding environments.
Features & Benefits
- 100% Oil-Free Compression – Ensures clean, contaminant-free air for critical applications where product purity and system protection are essential.
- High-Efficiency Single-Stage Direct Drive Design – Maximizes performance while reducing mechanical complexity and minimizing maintenance requirements.
- Premium TEFC Motor Technology – Delivers reliable operation with improved energy efficiency to help reduce overall operating costs.
- Quiet Enclosed Package Design – Engineered to reduce noise levels, making it suitable for demanding industrial environments.
- Advanced GD Pilot TS Touchscreen Controller – Provides intuitive system control, real-time monitoring, and precise operational management.
- Water Injection Cooling System – Lubricates, cools, and seals the compression process to enhance efficiency and maintain consistent performance.
- Reliable, Low-Cost Operation – Designed for long-term durability with reduced maintenance needs, lower energy consumption, and improved overall cost of ownership.

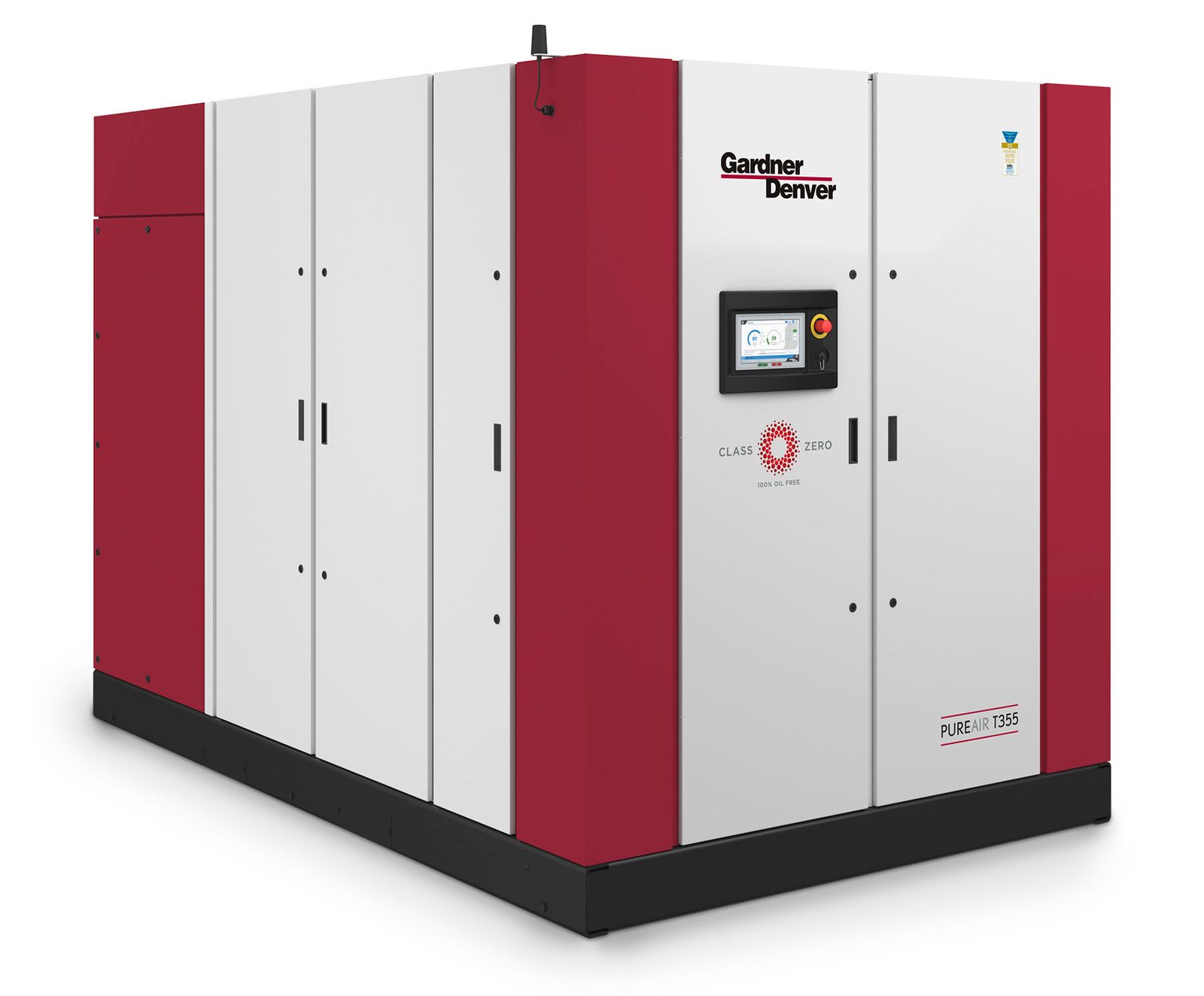

PureAir Series Oil-Free Screw Air Compressor 185-355kW (250-450 hp)
The PureAir Series T & TVS 185–355 kW oil-free rotary screw air compressors represent the next evolution in Gardner Denver’s long-standing legacy of compressed air innovation. Built using advanced design and simulation technology, along with decades of expertise in oil-free compression, the PureAir Series delivers exceptional efficiency, reliability, and performance. Engineered for demanding industrial applications, these compressors continue Gardner Denver’s commitment to providing highly efficient, dependable, and contamination-free compressed air solutions.
Features & Benefits
- Class 0 100% Oil-Free Air – Guarantees contaminant-free compressed air to protect product quality and meet the most demanding industry standards.
- Advanced RotorArmor™ Airend Technology – Enhances efficiency, performance, and durability of the compression system for long-term reliability.
- Stainless Steel Critical Components – Includes 2nd stage rotors and discharge piping for superior corrosion resistance and extended service life.
- Quiet, High-Performance Enclosure with TEFC Cooling Fan – Delivers low-noise operation while protecting internal components from dust and moisture.
- GD Governor™ Intelligent Controller – Provides advanced monitoring, precise system control, and real-time operational insight.
- Compact, High-Temperature Ready Design – Operates efficiently in environments up to 131°F while minimizing required installation space.
- Energy Efficiency & Sustainability Options – Optional energy recovery system captures waste heat to improve overall system efficiency and reduce operating costs.
PureAir Series Oil-Free Screw Air Compressor 90-160kW (125-215hp)
The PureAir Series T & TVS 90–160 kW oil-free rotary screw air compressors continue Gardner Denver’s long-standing legacy of innovation in compressed air technology. Designed using advanced engineering tools and simulation software, and built on decades of expertise in oil-free compression, this series delivers outstanding efficiency, reliability, and performance. Engineered for demanding industrial applications, the PureAir Series provides a dependable, high-quality oil-free air solution that maximizes productivity while maintaining Gardner Denver’s commitment to energy efficiency and operational excellence.
Ultima U Series Oil-Free Screw Air Compressor 75-160 kW (100-215 hp)
The Ultima oil-free rotary screw air compressor series is engineered with high-efficiency low- and high-pressure dry screw airends, each independently driven by a motor operating at up to 97% efficiency. Designed for advanced performance and energy savings, the Ultima delivers up to 70% turndown capability, exceptionally low off-load power consumption, and ultra-quiet operation at just 63–69 dBA. With superior heat recovery capabilities, this series provides a highly efficient, low-noise, and energy-optimized solution for demanding industrial applications requiring reliable oil-free air.
Rotary Vane Air Compressors

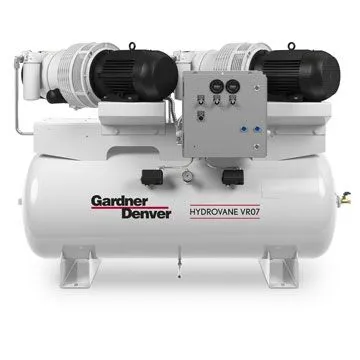

Duplex Rotary Vane Air Compressors
The V/VR Duplex rotary vane air compressor system features a dual-compressor configuration with a lead/lag control system that balances runtime between units for improved efficiency and extended service life. Available in 5–10 HP with operating pressures from 100–150 PSIG and airflow up to 72.8 CFM, the V/VR Series delivers reliable compressed air in a compact, integrated package. Designed for easy installation and maintenance, these systems are exceptionally quiet, robust, and space-saving—making them ideal for facilities that require dependable performance in a small footprint.
Features & Benefits
- 5–10 HP Duplex Configuration – Dual compressor and motor setup with integrated tank for reliable, continuous air supply in compact systems.
- Lead/Lag Load Management System – Automatically balances runtime between compressors to improve efficiency, extend equipment life, and reduce wear.
- 100–150 PSIG Operating Range – Provides flexible pressure performance suitable for a wide range of industrial and commercial applications.
- Up to 72.8 CFM Output Capacity – Delivers consistent airflow to support demanding continuous-duty operations.
- Low-Noise Operation (As Low As 65 dBA) – Engineered for quiet performance, making it ideal for installation close to point-of-use environments.
- Slow-Speed Rotary Vane Reliability – Proven Hydrovane design improves efficiency over time as components bed in, reducing energy consumption.
- Low Maintenance, Long Service Life Design – Built for 100% duty cycle applications with up to 100,000+ operating hours and no costly airend replacement required.
Hypac Rotary Vane Air Compressor
The V/VR Simplex rotary vane compressor series is available as a fully packaged Hypac solution, featuring a tank-mounted compressor, motor, and integrated refrigerated dryer for a complete and efficient compressed air system. Designed for reliability and ease of use, the V/VR Series operates in the 5–15 HP range with pressures from 100–150 PSI and airflow up to 50.2 CFM. Engineered to meet demanding performance specifications, this compact, integrated system is easy to install and maintain while delivering exceptionally quiet operation. Its robust and space-saving design makes it ideal for installations in a wide variety of indoor and undercover applications.
Features & Benefits
- 5–15 HP Simplex Rotary Vane System – Compact tank-mounted compressor package with integrated motor and refrigerated dryer for a complete air solution.
- 100–150 PSI Operating Range – Flexible pressure performance designed for a wide range of industrial and commercial applications.
- Up to 50.2 CFM Output Capacity – Reliable airflow to support continuous-duty compressed air demands.
- All-in-One Packaged System Design – Fully integrated solution reduces installation complexity and saves valuable floor space.
- Ultra-Quiet Operation (As Low As 65 dBA) – Engineered for low-noise performance, ideal for indoor or work-adjacent installation.
- Energy-Efficient Slow-Speed Rotary Vane Technology – Performance improves over time as components bed in, reducing energy consumption and operating costs.
- Long-Life, Low-Maintenance Reliability – Designed for 100% duty cycle applications with up to 100,000+ operating hours and no expensive airend replacement required.
Simplex Rotary Vane Air Compressors
The Hydrovane V/VR Series Simplex rotary vane air compressors deliver reliable performance in a compact, tank-mounted package with a TEFC motor. Offering 5–10 HP, operating pressures from 100–150 PSI, and airflow up to 36.4 CFM, these compressors are engineered to meet demanding industrial specifications. Their integrated, space-saving design allows for flexible installation in a variety of indoor or undercover locations. Built for simplicity, durability, and ease of maintenance, the V/VR Series also operates at exceptionally low noise levels, making it an ideal solution for quiet, dependable compressed air production.
Features & Benefits
- 5–10 HP Compact Tank-Mounted System – Integrated rotary vane compressor with TEFC motor for reliable, space-efficient compressed air delivery.
- 100–150 PSI Operating Range – Flexible pressure capability suitable for a wide range of industrial and commercial applications.
- Up to 36.4 CFM Output Capacity – Consistent airflow performance for continuous-duty operations.
- Slow-Speed Rotary Vane Technology – Proven design delivers dependable operation with improved efficiency over time as components bed in.
- Low-Noise Operation (As Low As 65 dBA) – Engineered for quiet performance, ideal for indoor or workplace-adjacent installation.
- Energy-Efficient & Cost-Effective Operation – Low energy consumption and reduced operating costs help improve long-term savings.
- Long-Life, 100% Duty Cycle Reliability – Designed for continuous operation with up to 100,000+ hours of service life and no expensive airend replacement required.
Unenclosed Rotary Vane Air Compressors
The Hydrovane V/VR Unenclosed rotary vane air compressors deliver reliable performance in a compact, tank-mounted configuration with integrated motor and dryer. Available in 2–15 HP, with operating pressures from 100–150 PSI and airflow up to 36.4 CFM, these units are engineered to meet stringent industrial requirements. Their simple, robust, and integrated design allows for flexible installation in a wide range of undercover applications. Easy to install and maintain, the V/VR Series also operates at exceptionally low noise levels, making it a dependable and quiet solution for efficient compressed air delivery.
Reciprocating Air Compressors
A-Series Reciprocating Compressor (20-30 HP)
The A-Series heavy-duty reciprocating air compressor is designed for rugged industrial performance, available in a single-stage configuration and engineered for maximum efficiency using AEON compressor oil. Built with high-grade cast iron components, the A-Series delivers exceptional durability and reliability in demanding environments such as petroleum refineries, oil rigs, mining operations, plant air and vacuum systems, engine starting, and wellhead servicing. Capable of reaching pressures up to 350 PSIG, this compressor is built to handle high-demand applications where strength, consistency, and long-term performance are essential.
Features & Benefits
- 20–30 HP Heavy-Duty Configuration (14.9–22.4 kW) – Available as compressor or vacuum pump with spin-on oil filtration for dependable industrial performance.
- Heavy-Duty Cast Iron Construction – Built for long-lasting durability in demanding operating environments.
- Factory-Filled with AEON Lubricant – Ensures optimized performance, protection, and smooth operation from startup.
- Advanced Drive and Cooling Design – Turbo-finned drive sheave, deep-finned cylinders, and heads improve cooling efficiency and reduce operating temperatures.
- Service-Friendly Engineering – Removable hand-hole plate and replaceable internal components allow for easier maintenance and reduced downtime.
- Enhanced Reliability Components – Counterbalanced crankshaft, tapered roller bearings, and tri-metal insert bearings deliver smooth, stable, and long-life operation.
- Built-In Safety & Performance Controls – ASME pressure relief valve, oil pressure gauge, and suction unloading valves ensure safe operation, efficient load management, and responsive performance.
Climate Control Reciprocating Compressor (.5-1.5 HP)
Specially-designed Climate Control Reciprocating Compressors can fit your application's specific needs. The Gardner Denver line of specially-designed climate control compressors represents years of intensive industrial research and testing. We've listened to the needs of the end user, and seen the short-comings of our competitors. The result is a line of machines suitable to critical industry demands for value and lasting performance. A low operating RPM on this industrial air compressor results in longer component life, lower operating temperatures, and greater efficiency levels. Models can reach up to 175 psi, and are available as a single or a two stage system. This reciprocating compressor is available as a simplex or duplex model, outfitted with an OSHA approved heavy duty belt guard.

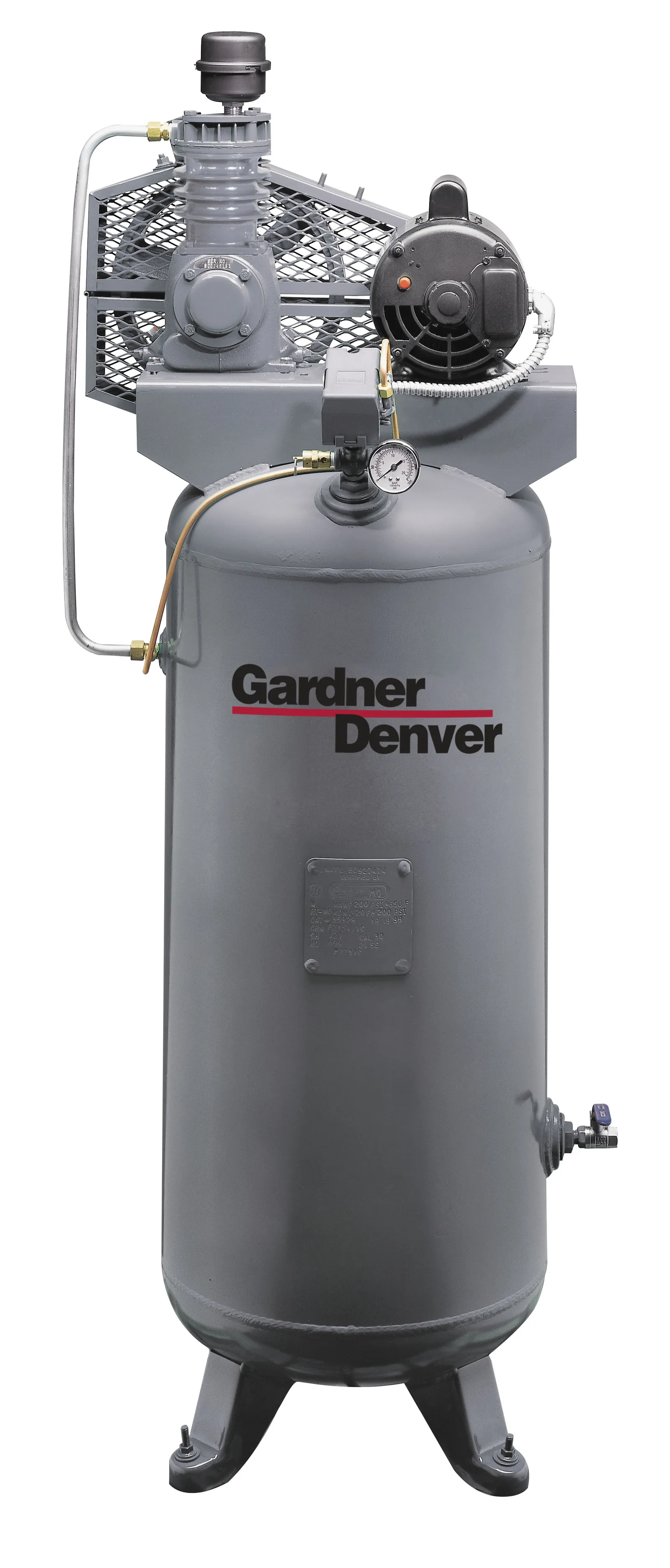

Commandair Reciprocating Compressor (.5-3 HP)
The Commandair compact reciprocating air compressors are engineered to deliver reliable performance in a space-saving design, built with the same quality standards as Gardner Denver’s industrial-grade equipment. Ideal for smaller air demand applications such as small industrial facilities, schools, automotive shops, and DIY use, these single-stage, splash-lubricated compressors provide dependable compressed air up to 125 PSIG. Available in both base-mounted and tank-mounted configurations, with vertical and horizontal options, the Commandair series offers flexible installation, consistent performance, and exceptional value for users seeking a compact yet capable compressed air solution.
Features & Benefits
- 0.5–3 HP Compact Reciprocating Design – Reliable low-horsepower compressor solution built for small industrial and commercial applications.
- Automatic Start/Stop Operation with Loadless Starting – Improves efficiency, reduces wear, and ensures smooth pressure-controlled performance.
- Single & Three Phase Electrical Options – Flexible voltage compatibility (115–460V) for a wide range of installation requirements.
- 10-Micron Industrial Grade Intake Filtration – Protects internal components and improves air quality for longer service life.
- Heavy-Duty Cast Iron Construction – Precision-machined cylinders and crankcase maintain rigidity, efficiency, and long-term durability.
- Engineered for Smooth, Low-Vibration Operation – Balanced flywheel, ductile iron crankshaft, and aluminum alloy components reduce vibration and improve reliability.
- High-Efficiency Internal Valve & Bearing Design – Swedish steel reed valves, tapered roller bearings, and optimized piston design deliver cooler operation, reduced friction, and extended compressor life.

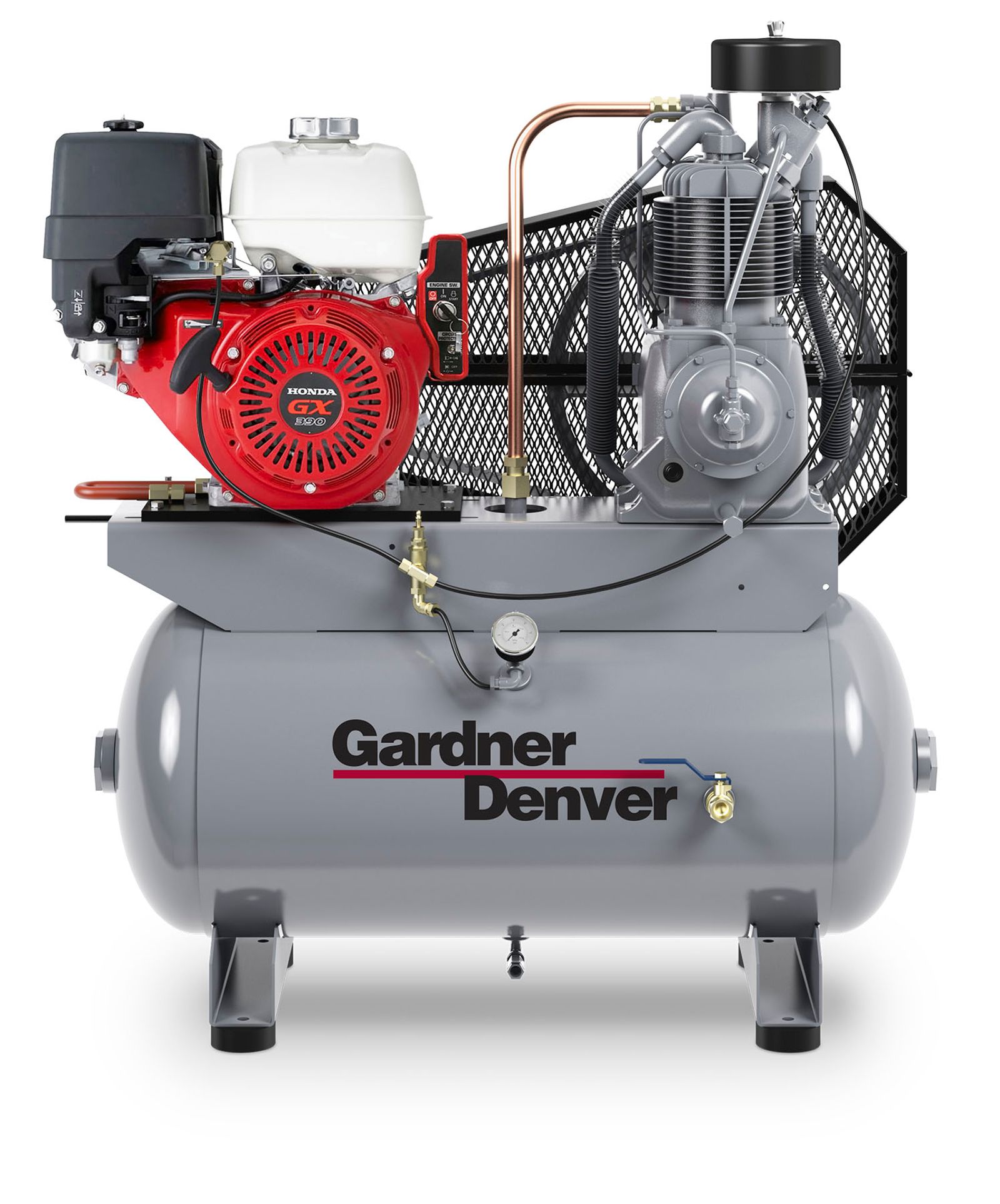

Engine Driven Reciprocating Compressor (9.1-23.9 HP)
The Gardner Denver engine-driven reciprocating compressor packages deliver reliable compressed air performance in a flexible, self-powered design, available from 9.1–23.9 HP to suit a wide range of applications. Engineered for use in remote locations and emergency production support, these two-stage compressors are powered by gas or diesel, eliminating the need for electrical service. Built for efficiency and dependability, each unit is designed to provide consistent compressed air where and when it is needed most, making them an ideal solution for mobile, off-grid, and backup air requirements.
Features & Benefits
- 9.1–23.9 HP Engine-Driven Packages (6.8–17.8 kW) – Flexible gas or diesel-powered solutions designed for mobile, remote, and emergency compressed air applications.
- ASME & CRN Certified Air Receiver Tanks (30–80 Gallon) – Horizontal tank options provide safe, compliant, and durable air storage.
- Two-Stage Belt-Driven Compression System – Engineered for higher efficiency and reliable high-pressure air delivery up to 250 PSIG (PL-Series options).
- Self-Powered Operation with Electric Start – Eliminates dependence on electrical service, ideal for off-grid or backup use.
- Built-In Safety & Control Components – Includes pressure relief valve, service valve, pressure gauge, vibration isolators, and totally enclosed belt guard for safe operation.
- High-Efficiency Cooling & Valve Design – Intercooler, precision-balanced flywheel, and reliable disc valves ensure cooler, more efficient performance.
- Heavy-Duty Industrial Construction – Gasketless cylinder/head design, factory-filled AEON lubricant, and rigorous factory testing deliver dependable long-term durability and performance.
Paradox Reciprocating Compressor (5-15 HP)
The Gardner Denver Paradox Quiet Enclosed Reciprocating Compressor Package combines advanced engineering with exceptional noise reduction, delivering the proven reliability and high performance of the legendary R-Series pump in a modern, sound-attenuated enclosure. Designed for applications that require the efficiency of a reciprocating compressor with significantly lower sound levels, the Paradox operates at dBA levels comparable to—or even quieter than—typical rotary screw compressors. With optimized cooling performance that maintains discharge temperatures within 20 degrees of ambient, this system provides quiet, efficient, and dependable compressed air for demanding industrial environments.
Features & Benefits
- 5–15 HP Quiet Enclosed Compressor System – Sound-attenuated design with 2” insulated panels delivers exceptionally quiet operation as low as 62 dBA.
- Legendary R-Series Compressor Pump – Proven reciprocating pump technology engineered for dependable, high-performance compressed air delivery.
- Advanced Cooling & Low-Temperature Performance – Oversized aftercooler, optimized cooling fan, multi-finned cylinders, and finned intercoolers help maintain cooler operating temperatures and improve efficiency.
- Heavy-Duty Safety & Industrial Construction – Includes ASME-coded receiver, inter-stage pressure relief valve, air pressure gauge, enclosed belt guard, and B11.19 compliant enclosure for safe operation.
- Flexible Installation & Electrical Options – Available in multiple three-phase voltages with optional 50 Hz operation, mounted refrigerated dryer, and compact package design to save installation space.
- Low-Maintenance, High-Efficiency Pump Design – Balanced pistons, tapered roller bearings, high-flow disc valves, and lightweight connecting rods ensure smooth, efficient, and reliable operation.
- Smart Controls & Reliable Startup – Features sophisticated controls, electronic tank drain, high-temp protection, and centrifugal unloading for reduced starting power and fully loadless startup.
PL-Series Reciprocating Compressor (3-30 HP)
The PL-Series reciprocating air compressor is engineered for extreme-duty industrial applications, delivering reliable high-pressure performance up to 250 PSIG in demanding and remote environments. Designed with pressure lubrication, domed pistons, integral cylinder heads, high-flow disc valves, and an integrated oil pump, the PL-Series provides dependable efficiency and long-term durability under heavy workloads. Available in both tank-mounted and base-mounted configurations, these compressors feature loadless auto start/stop operation for improved efficiency and reduced wear. Factory-filled with AEON compressor oil, the PL-Series is built to deliver consistent, high-performance compressed air in the toughest operating conditions.
Features & Benefits
- 3–30 HP Heavy-Duty Performance (2.2–22 kW) – Designed for demanding industrial applications with reliable high-pressure compressed air delivery.
- Advanced Pressure Lubrication System – Positive displacement oil pump, pressure-lubricated bearings, and oil pressure gauge ensure dependable operation and extended compressor life.
- Heavy-Duty Internal Protection – External spin-on oil filter and internal oil inlet screen help protect critical components from debris and wear.
- Hydraulic Unloader for Smooth Operation – Factory-set pilot valve enables easy loadless starting and low-pressure protection for unattended operation.
- Industrial-Grade Durability – Tapered roller bearings, industrial-class components, durable cast-iron construction, and OSHA-approved belt guard provide long-term reliability.
- Safe & Compliant Design – ASME code air receivers and heavy-duty air filtration support safe operation and cleaner compressor performance.
- Flexible Customization Options – Wide range of upgrades including aftercoolers, refrigerated dryers, monitoring systems, programmable controls, alternate motors, and dual operating modes to meet application-specific needs.

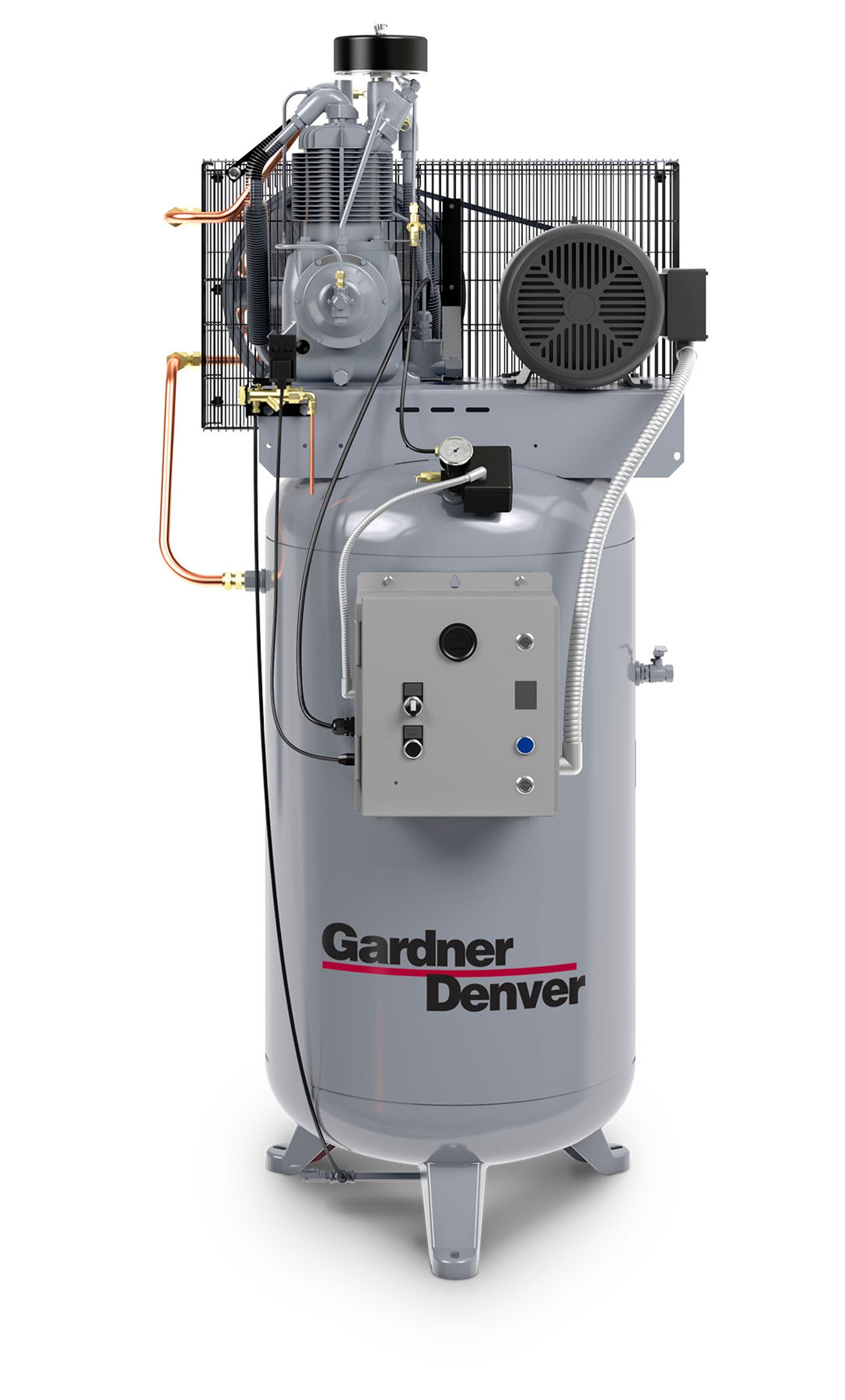

R-Series Reciprocating Compressor (2-30 HP)
The R-Series reciprocating air compressors are engineered for dependable day-in, day-out industrial performance, delivering reliable compressed air with exceptional value. Available in gas or diesel-driven models, the R-Series supports both single and two-stage splash-lubricated pumps and can achieve pressures up to 175 PSIG for demanding applications. Offered in tank-mounted or base-mounted configurations, as well as simplex or duplex systems, these compressors provide flexible installation options while maintaining the rugged durability and consistent performance required in industrial environments.
Features & Benefits
- 2–30 HP Industrial Performance (1.1–26 kW) – Available in configurations delivering up to 175 PSIG and airflow up to 202 ACFM for demanding compressed air applications.
- Flexible Configuration Options – Offered in gas, diesel, or electric-driven models with tank-mounted or base-mounted, simplex or duplex, and single or two-stage splash-lubricated systems.
- Reliable Loadless Starting System – Mechanical centrifugal unloader reduces startup strain, extending motor life and improving operational reliability.
- High-Efficiency Pump Design – High-flow disc valves, balanced crankshaft, optimized piston rings, and multi-finned cylinders provide cooler operation, smooth performance, and maximum air delivery.
- Durable, Trouble-Free Construction – Integral gasketless cylinder/head design and factory-filled AEON lubricant improve reliability and reduce maintenance concerns.
- Complete Air System Flexibility – Optional mounted refrigerated dryer, aftercoolers, duplex controls, monitoring systems, and alternate motor configurations allow customization to application needs.
- Compact, Cost-Saving AirStation Capability – Optional integrated dryer package reduces plumbing, saves floor space, simplifies installation, and lowers total system costs.
Reward Reciprocating Compressor (5-25 HP)
The Reward Series reciprocating air compressors provide a complete, ready-to-use compressed air solution with all the essential components integrated into a single package. These durable, two-stage splash-lubricated compressors deliver pressures up to 175 PSIG and are available in both simplex and duplex tank-mounted configurations to meet a variety of application requirements. Factory-filled with AEON compressor oil for enhanced reliability and long service life, Reward Series compressors arrive ready for installation and operation, with most units shipping within 24 hours. Backed by a five-year prorated pump warranty, they offer dependable performance, quick deployment, and outstanding value for industrial users.

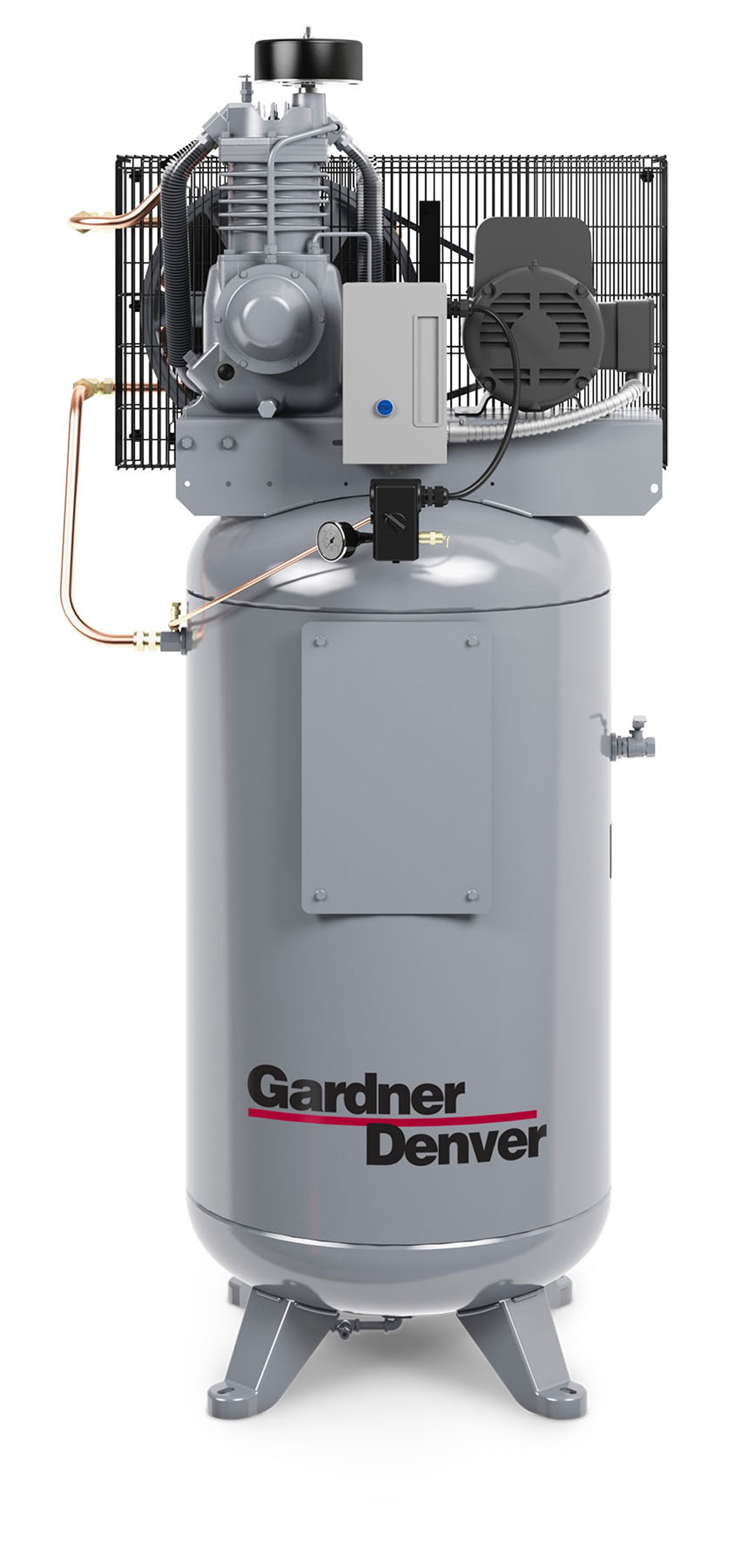

RV-Series Reciprocating Compressor (2-15 HP)
The RV-Series reciprocating air compressors are designed to provide industrial-grade reliability and performance at an economical price point. Featuring durable cast-iron construction, industrial-grade intake filtration, and high-quality alloy steel reed valves, the RV-Series delivers efficient compressed air production at pressures up to 175 PSIG. Available in both horizontal and vertical tank-mounted configurations, these compressors offer flexible installation options to fit a variety of applications. Standard automatic start/stop operation, integrated silencers, and a rugged design make the RV-Series a dependable, cost-effective solution for businesses seeking long-lasting compressed air performance.
Features & Benefits
- 2–15 HP Industrial Performance (1.5–11.2 kW) – Reliable reciprocating compressor solutions designed for demanding commercial and industrial applications.
- Automatic Start/Stop Operation – Maintains consistent system pressure while improving efficiency and reducing unnecessary runtime.
- Heavy-Duty Electrical & Control Components – Includes magnetic starters, NEMA-rated motors, preset pressure switches, and multiple voltage options for installation flexibility.
- ASME-Certified Air Receiver System – Features ASME-coded receivers and integrated pressure monitoring for safe, dependable operation.
- 100% Cast Iron Construction – Built for durability, long service life, and dependable performance in challenging environments.
- Enhanced Airflow & Cooling Design – Alloy steel reed valves, deep-finned intercooler, and industrial-grade intake filtration maximize efficiency and compressor performance.
- Low-Maintenance Reliability – Oil level sight glass, factory-filled AEON lubricant, and optional tank drains, aftercoolers, and monitoring systems help simplify maintenance and extend equipment life.
VP-Series Reciprocating Compressor (5 & 7.5 HP)
The Value Plus Line reciprocating air compressors are designed to deliver dependable industrial performance at an economical price point. Available in both gas and electric-driven models, these compressors provide pressures up to 150 PSIG and can be configured in either vertical or horizontal tank-mounted arrangements for installation flexibility. Built with cast iron cylinders, premium-quality bearings, and smooth-running, low-vibration compressor pumps, the Value Plus Series is engineered to withstand demanding working conditions while maintaining reliable operation. Combining durability, versatility, and a low initial investment, the Value Plus Line offers exceptional value for a wide range of compressed air applications.
Because Hydrovane offers so many replacement parts we do not list them here on this site.
Call or email us with your PART NUMBER or for assistance finding it.
sales@centralaircomp.com
Call Us: (586) 558-9100
