BEKO Dryer Systems

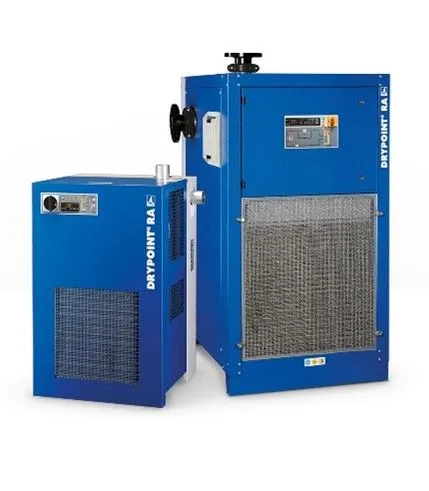

RA Non-cycling Refrigerant Dryers

RA Non-cycling Refrigerant Dryers

Flow Rate

  • 10 – 480 scfm

Maximum Inlet Air Temperature

  • 130 °F

Maximum Inlet Operating Pressure

  • 10 – 50: 232 psig
  • 75 – 480: 200 psig

Standard Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class

  • ≤ 37-45 °F
  • Class 4-5

Standard Condensate Drain | Optional

  • Timer Solenoid
  • BEKOMAT®

Available Options

  • 3-valve bypass Cover3More Extended Warranty

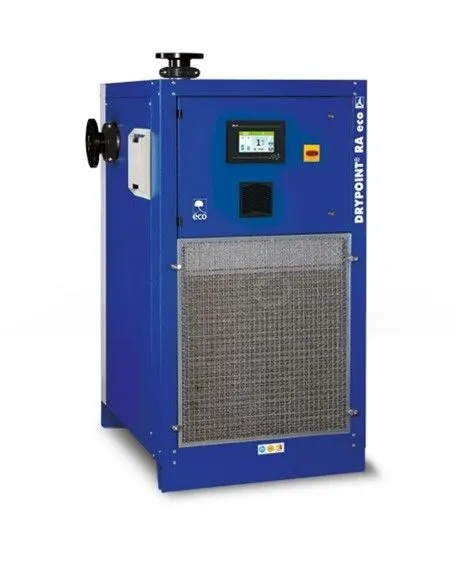

Energy Saving Refrigerant Dryers

Energy Saving Refrigerant Dryers

Flow Rate

  • 20 – 500 scfm

Maximum Inlet Air Temperature

  • 160 °F

Maximum Inlet Operating Pressure

  • 20 – 50: 232 psig
  • 75 – 500: 200 psig

Standard Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class

  • ≤ 37-45 °F
  • Class 4-5

Standard Condensate Drain

BEKOMAT®

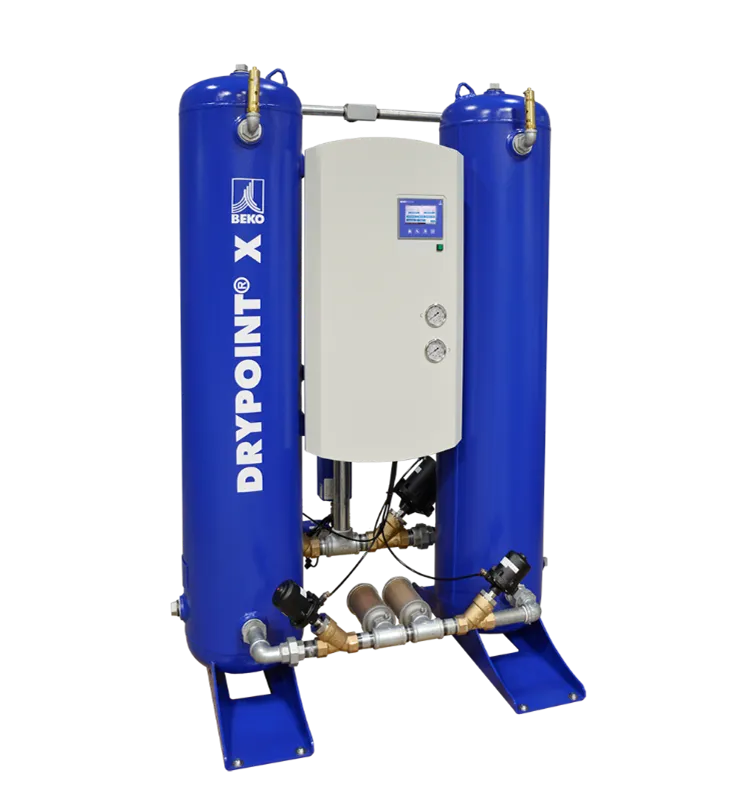

Heatless Desiccant Dryers

Heatless Desiccant Dryers

Flow Rate

  • 4 – 110 scfm

Standard Outlet PDP | Optional

  • -40 °F
  • -100 °F

Maximum Operating Pressure

  • 232 psig (ACC 4-35)
  • 189 psig (ACC 46-110)

Average Purge Air

18%

PN Series high pressure drains for a range of applications with hard coated drain bodies and pressure ratings up to 915 psig:

  • 12 CO PN 63
  • 13 CO PN 50
  • 14 CO PN 25

Full stainless steel bodies with the ability to handle large volume flows and pressure ratings up to 915 psig:

  • 3 E 25
  • 3 E

Heated Desiccant Dryers

Heated Desiccant Dryers

Flow Rate

  • 4 – 110 scfm

Standard Outlet PDP | Optional

  • -40 °F
  • -100 °F

Maximum Operating Pressure

  • 232 psig (ACC 4-35)
  • 189 psig (ACC 46-110)

Average Purge Air

18%

Heated Purge Desiccant Dryers

Heated Purge Desiccant Dryers

CLEARPOINT® Water Separators

CLEARPOINT® Water Separators

CLEARPOINT® in-line water separators help remove excess water from compressed air systems. During compression, moisture naturally forms and can build up in the air lines. If this water isn’t removed, it can cause equipment damage, product contamination, and increased maintenance costs. Using a water separator is an easy and cost-effective way to avoid these problems.

CLEARPOINT® Compressed Air Filters

CLEARPOINT® Compressed Air Filters

As compressed air moves through a system, it picks up contaminants like dust, moisture, and oil. Compressed air filters—available in different grades—remove these impurities to keep the air clean. This is important because dirty air can damage equipment, lower product quality, and even stop production.

CLEARPOINT® In-line Heaters

CLEARPOINT® In-line Heaters


The CLEARPOINT® H Series in-line heaters are ideal for preventing frozen pipes or maintaining compressed air at a steady temperature above room temperature. With an adjustable temperature range from 86°F to 140°F, they offer flexible performance for a wide range of applications.
