TAEevo Air-cooled Chillers Capacity 1/2 – 40 Tons
The TAEevo range of air-cooled chillers are a packaged unit designed for industrial applications. They are supplied with hermetic scroll or reciprocating compressors and an innovative finned pack evaporation inside the storage tank
- Environmentally friendly refrigerant R407C
- High performance hermetic reciprocating or scroll compressors
- Finned pack evaporator with copper tubes and aluminum fins internal to tank.
- Single centrifugal pump designed for 43.5 psig (Duplex pumps available on request)
- Crankcase heater on compressors
- Electrical power supply 460/3/60 Hz
Hycomp Air Compressor Capabilities:
- Up to 450 psig standard, higher pressures available
- Up to 75 HP
- 1, 2 and 3 stage units available
- Flows to 150 scfm limited by HP

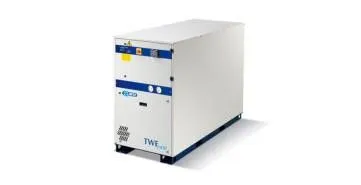

TWEevo Water Cooled Chillers Cooling Capacity 1.5 – 46 Tons
The TWEevo range of water-cooled chillers are a packaged unit designed for industrial applications using water as a cooling agent. They are supplied with hermetic scroll compressors with a copper brazed plate heat exchanger. A water regulating valve is also included to control the flow of condenser water.
- Environmentally friendly refrigerant R407C
- High performance hermetic reciprocating or scroll compressors
- Compact copper brazed plate heat exchanger
- Single centrifugal pump designed for 43.5 psig (Duplex pumps available on request)
- Crankcase heater on compressors
- Electrical power supply 460/3/60 Hz

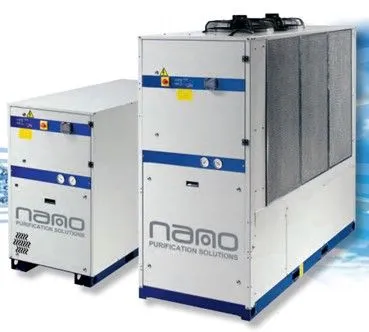

Nano C-Series1 Industrial Process Chillers
The C-Series1 operates in a closed circuit, offering precise water temperature control and rapid response to changes in ambient and thermal load. This design also eliminates the waste, corrosion and bacterial growth associated with open circuit systems.
Advanced Microprocessor Controls
All C-Series1 industrial process chillers feature easy to use advanced microprocessor controls. The water outlet temperature, operational icon indicators and up to 10 different programmable alarms are indicated on a bright digital LED display.
