RS Series 15-300 HP
The rigid base includes built-in forklift slots to reduce the risk of damage. Add in the meticulous selection of components, such as premium efficiency motors (up to 200 HP), generously sized coolers and airends, and it’s easy to see why RS Series compressors have earned a reputation for durability and performance.
- Superior durability handles even the most demanding applications
- High-efficiency separation and filtration for long life
- Open design offers easy access to all components — no need to remove panels or brackets
- Rugged and leak-free design
- Easy servicing for low cost of ownership
- Exclusive slow speed airend profile results in higher air delivery while reducing power consumption
- Proven control technology for power savings and pressure stability in all demand loads
- NEMA Premium Efficiency motors
- Low internal pressure drops increases efficiency

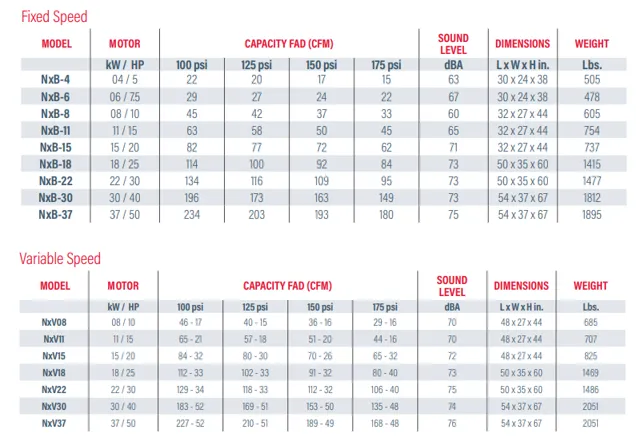

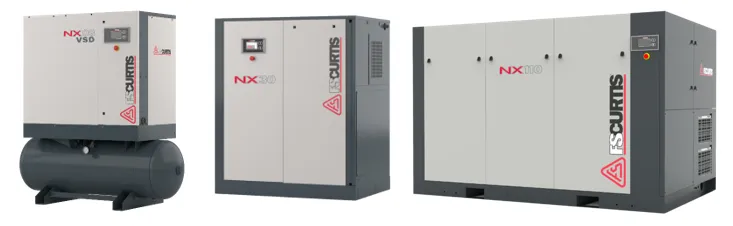

NX Series 4-260 kW
- Designed for quiet operation
- Built to the highest levels of dependability and reliability
- Designed for low cost of ownership
- Ideal combination of variable speed drive, controller, and drivetrain
- Protects critical components from compressor-generated heat
- Intelligent component layout optimizes cooling air flow through the package and improves overall efficiency and reliability
- Extends component life and reduces downtime

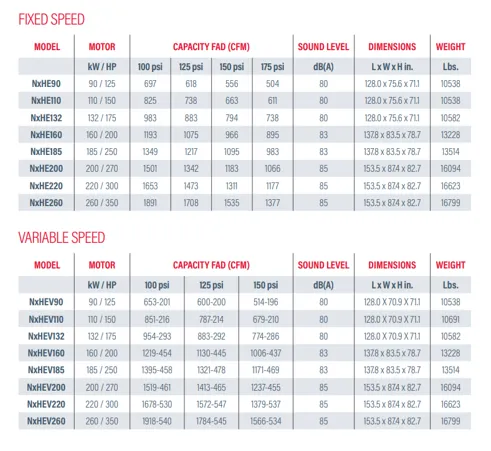

NxHE Series Two – Stage
- Centrifugal cooling fan and compartmentalized package air flow make for extremely smooth and quiet operation
- Extra thick, laminated oil-proof sound insulation greatly reduces noise
- Protects critical components from compressor-generated heat
- Intelligent component layout optimizes cooling air flow through the package and improves overall efficiency and reliability
- Extends component life and reduces downtime
- Exclusive FS-Curtis air end utilizes precision cut rotor profiles to maximize efficiency
- Premium efficiency TEFC (IP55, Class F) main motor protects against dust ingression and high operating temperatures, prolonging the life of the motor
- Components are generously sized to reduce pressure drop throughout the package, increasing overall efficiency
Oil- Free Compressors

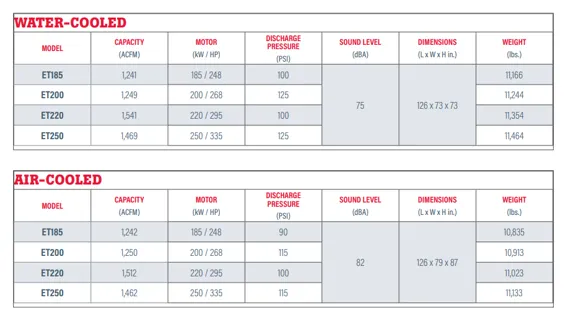

Eco Turbos
- ECO-Turbo 185–250 kW removable enclosure panels allow for easy access to all maintenance components
- Airend designed with horizontally split gearbox allowing for quick inspection of impellers and gears
- 100% oil-free, Class 0 (ISO 8573) compressed air
- 2-stage compression for greater energy efficiency
- Long service life
- Low maintenance costs
- Premium efficiency TEFC (IP55) main motor
- Wear-free titanium impeller designed for long life and optimum efficiency
- Sound enclosure with removable panels protects compressor from harsh environments

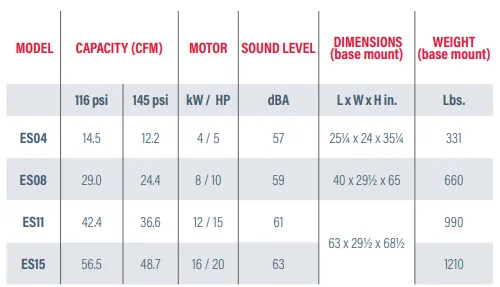

Eco Scroll
- Designed to be installed in applications where quiet setting is important
- Noise level between 57 and 63 dBA
- No inlet valve knocking noise
- Ultra low vibration (5mm/s or less)
- Powered by high efficient motor TEFC IE3
- Exclusive ECO-Series scroll airend
- Fixed and orbital scrolls are precisely meshed
- Centrifugal cooling fan keeps heat exchange efficient and quiet
- Check valves and safety relief valves in line to prevent back pressure to the airend
- 100% duty cycle
- Units are start/stop controlled
- Can be oversized without harm to scroll airend
- Lower carbon footprint with environmentally friendly ISO 8573-1 Class 0 Air
- Unit installation in workspace gives you reduced installation costs
- Promotes energy conservation by avoiding the use of oil
- Maintenance friendly
- Less moving parts results in higher reliability
- Small footprint, space-saving modular design
- Easy to use electronic controller
